ABCG5 Membrane Protein Introduction

Introduction of ABCG5

ABCG5, ATP-binding cassette subfamily G member 5 is a protein that in humans is encoded by the ABCG5 gene. It is a member of the superfamily of ATP-binding cassette (ABC) transporters. ABC proteins transport various molecules across extra- and intra-cellular membranes. ABC genes are divided into seven distinct subfamilies (ABC1, MDR/TAP, MRP, ALD, OABP, GCN20, White). This protein is a member of the White subfamily. The protein encoded by this gene functions as a half-transporter to limit intestinal absorption and promotes biliary excretion of sterols. It is expressed in a tissue-specific manner in the liver, colon, and intestine.

Basic Information of ABCG5
Protein Name ATP-binding cassette sub-family G member 5
Gene Name ABCG5
Aliases Sterolin-1
Organism Homo sapiens (Human)
UniProt ID Q9H222
Transmembrane Times 6
Length (aa) 651

Function of ABCG5 Membrane Protein

ABCG5, ATP-binding cassette sub-family G member 5 belongs to the ABCG subfamily, the members of which are half transporters composed of a single trans-membrane and a single nucleotide-binding domain. This gene is tandemly arrayed on chromosome 2, in a head-to-head orientation with family member ABCG8. Mutations in this gene may contribute to sterol accumulation and atherosclerosis, and have been observed in patients with sitosterolemia. ABCG5 and ABCG8 form an obligate heterodimer that mediates Mg2+ and ATP-dependent sterol transport across the cell membrane. It plays an essential role in the selective transport of dietary plant sterols and cholesterol in and out of the enterocytes and in the selective sterol excretion by the liver into bile.

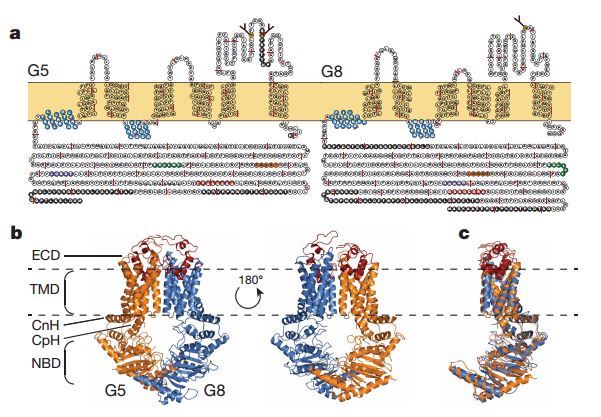

Structure of the G5G8 heterodimer. Fig.1 Structure of the G5G8 heterodimer. (Lee, 2016)

Application of ABCG5 Membrane Protein in Literature

  1. Lee J.Y., et al. Crystal structure of the human sterol transporter ABCG5/ABCG8. Nature. 2016, 533(7604): 561-4. PubMed ID: 27144356

    This article used crystallization in lipid bilayers to determine the X-ray structure of human G5G8 in a nucleotide-free state at 3.9 Å resolution, generating the first atomic model of an ABC sterol transporter. The G5G8 structure provided a mechanistic framework for understanding sterol transport and the disruptive effects of mutations causing sitosterolemia.

  2. Sumi K., et al. Cooperative interaction between hepatocyte nuclear factor 4 alpha and GATA transcription factors regulates ATP-binding cassette sterol transporters ABCG5 and ABCG8. Mol Cell Biol. 2007, 27(12): 4248-60. PubMed ID: 17403900

    This article identified a binding site for hepatocyte nuclear factor 4alpha (HNF4alpha) in the ABCG5/ABCG8 intergenic promoter, through which HNF4alpha strongly activated the expression of a reporter gene in both directions. It was the first demonstration that HNF4alpha acted synergistically with GATA factors to activate gene expression in a bidirectional fashion.

  3. Zhang D.W., et al. Functional asymmetry of nucleotide-binding domains in ABCG5 and ABCG8. J Biol Chem. 2006, 281(7): 4507-16. PubMed ID: 16352607

    This study examined the roles of the Walker A, Walker B, and signature motifs in the nucleotide-binding domains (NBD) of ABCG5 and ABCG8 using recombinant adenoviruses to reconstitute biliary sterol transport in G5G8-deficient mice. It also indicated that the NBDs of G5 and G8 were not functionally equivalent.

  4. Wittenburg H and Carey M.C. Biliary cholesterol secretion by the twinned sterol half-transporters ABCG5 and ABCG8. J Clin Invest. 2002, 110(5): 605-9. PubMed ID: 12208859

    This article showed that the heterodimeric units were physically and biologically inseparable in their journey to the apical membrane, also the molecular, biological, biochemical, and biophysical results of flooding bile with enormous amounts of excess cholesterol that was, in part, prevented from being reabsorbed.

  5. Lu K., et al. Two genes that map to the STSL locus cause sitosterolemia: genomic structure and spectrum of mutations involving sterolin-1 and sterolin-2, encoded by ABCG5 and ABCG8, respectively. Am J Hum Genet. 2001, 69(2): 278-90. PubMed ID: 11452359

    These studies indicated that both ABCG5 and ABCG8 were indispensable for the regulation of sterol absorption and excretion. Identification of ABCG5 and ABCG8 as critical players in the regulation of dietary-sterol absorption and excretion identified a new pathway of sterol transport.

ABCG5 Preparation Options

We provide custom membrane protein preparation services for worldwide customers. Leveraging by our advanced Magic™ membrane protein production platform, we are able to present target membrane protein in multiple active formats. Our professional scientists are happy to help you find an ideal method and make your project a success. Aided by our versatile Magic™ anti-membrane protein antibody discovery platform, we also provide customized anti-ABCG5 antibody development services.

Creative Biolabs provides high-quality membrane protein preparation service to facilitate the development of worldwide customer’s research. During the past years, we have successfully established a powerful Magic™ membrane protein platform which enables us to provide a series of membrane protein preparation services. For more detailed information, please feel free to contact us.


  1. Lee J Y, et al. (2016). Crystal structure of the human sterol transporter ABCG5/ABCG8. Nature. 533(7604): 561-4.
