CRISPR assisted Gene Editing Donor Vector Construction Service
Donor vectors are engineered DNA templates that facilitate precise gene knock-in (KI) through homology-directed repair (HDR) or non-homologous end joining (NHEJ), enabling the introduction of genetic modifications such as gene insertions, corrections, or functional tags into the target genome. These vectors are essential tools in gene therapy development, functional genomics, and disease modeling, providing researchers with a reliable method for controlled genetic modifications. At Creative Biolabs, we offer a full range of custom donor vector design and construction services tailored to your experimental needs.
Overcoming CRISPR Knock-In Bottlenecks: Challenges vs. Our Solutions

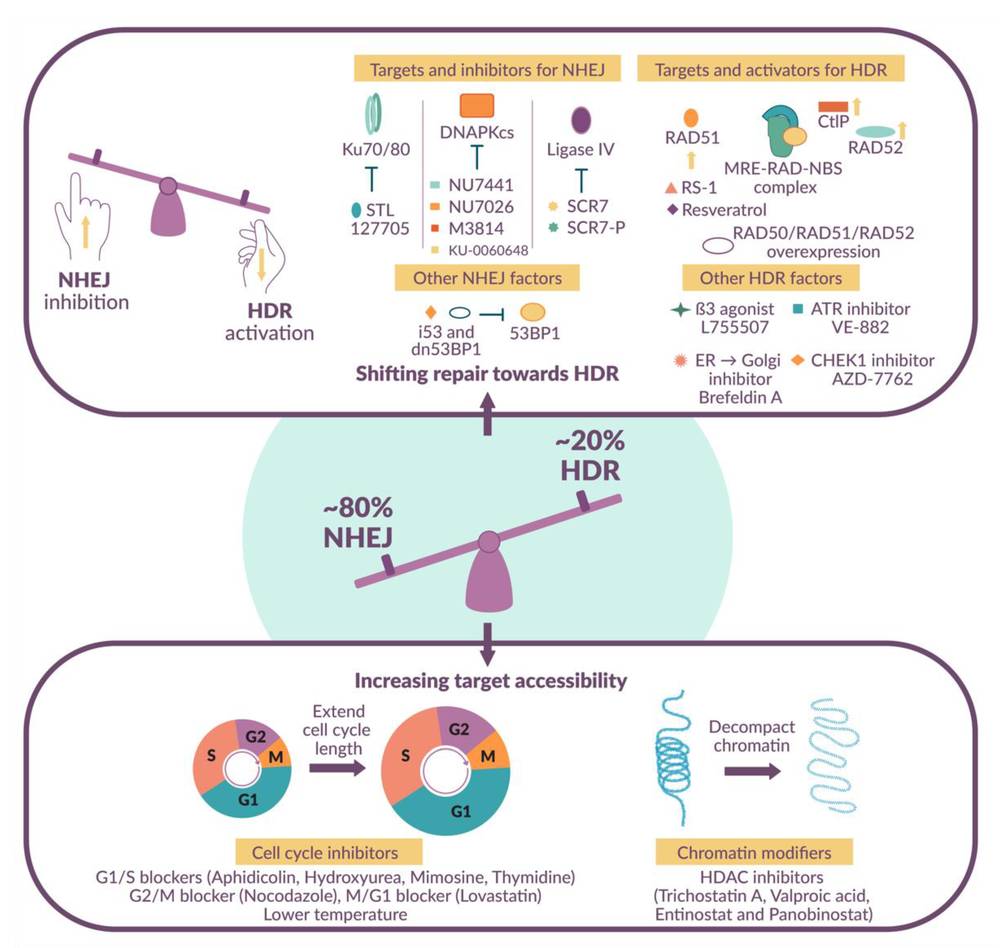

Figure 1. Approaches for enhancing precision editing. Manipulations that favor HDR over NHEJ or which increase the accessibility of the genomic target can increase editing efficacy.1
| Industry Challenge | Creative Biolabs' Engineered Solution |
|---|---|
| Low HDR Efficiency | Format & Chemical Optimization: We utilize AAV6 vectors (which naturally stimulate HDR in primary cells) and apply chemical modifications to ssODNs (e.g., phosphorothioate bonds) to maximize intracellular stability and HDR rates. |
| Cas9 Re-cutting the Donor/Genome | PAM-Blocking Mutations: We bioinformatically design and introduce synonymous (silent) mutations into the homology arms to obliterate the PAM site or sgRNA seed region, permanently locking in your precise edit. |
| Complex Homology Arm Design | Algorithmic Design: We meticulously calculate optimal arm lengths and employ asymmetric designs where proven superior. We strictly avoid high GC-extremes and repetitive elements to ensure construct stability. |
| Toxicity in Sensitive Cells | Endotoxin-Free & Viral Delivery: We offer AAV donor delivery to bypass the severe cytotoxicity associated with high-voltage electroporation of naked DNA. |
| Large Transgene Insert Limitations | Advanced Plasmid & Linearization Strategies: We engineer large-capacity plasmid donors with optimized homology arms (>1.5 kb) and can incorporate CRISPR target sites for in vivo linearization to boost recombination of massive inserts. |
| Random Backbone Integration | Backbone-Free Options: We offer linear dsDNA amplicons and ssODN formats that completely eliminate bacterial backbone sequences, ensuring cleaner, safer genomic modifications. |
Why Donor Vector Construction Is Critical for CRISPR-mediated Gene Editing?
Donor Vectors Enable Precise Genome Modification
CRISPR systems create targeted DNA breaks or nicks at defined genomic sites, but the final editing outcome depends heavily on how the cell repairs the edited region. When researchers need precise sequence insertion, replacement, correction, reporter knock-in, or gene tagging, a donor vector is required to provide the correct repair template. By carrying the desired genetic sequence together with carefully designed homology regions, donor vectors guide the cell toward accurate integration rather than random or unpredictable repair outcomes.
Homology-directed Repair Supports Accurate Knock-in Events
For many precise editing applications, donor vectors are designed to support homology-directed repair. In this process, the donor template aligns with the genomic target through left and right homology arms, allowing the intended sequence to be copied or integrated into the edited locus. The position of the CRISPR cut site, the length and sequence quality of homology arms, and the relationship between the inserted cassette and the target gene all influence whether the desired knock-in event can be successfully obtained.
Donor Design Directly Affects Editing Efficiency
A donor vector is not simply a DNA fragment inserted into a plasmid backbone. Its architecture can determine knock-in efficiency, screening difficulty, and the accuracy of final edited clones. Poorly placed homology arms, unoptimized insert orientation, remaining nuclease recognition sites, unstable sequence regions, or inappropriate vector formats may lead to low editing rates, undesired recombination, random backbone integration, or repeated nuclease cutting after successful modification.
Recommended Donor Vector Selection Guide
| Editing Goal | Recommended Donor Type | Notes |
|---|---|---|
| Single-base mutation | ssODN donor | Suitable for precise nucleotide substitution and small edits |
| Small tag insertion | ssODN or short dsDNA donor | Depends on tag size and target locus |
| Fluorescent reporter knock-in | Plasmid donor or AAV donor | Requires careful frame and linker design |
| Large cassette insertion | Plasmid donor | Suitable for promoters, reporters, selection markers, or expression cassettes |
| Gene correction in difficult cells | AAV donor | Useful when donor delivery efficiency is a key concern |
| Safe harbor transgene insertion | Plasmid or AAV donor | Depends on insert size and delivery strategy |
| Conditional allele construction | Custom plasmid donor | May include loxP/FRT elements and selection markers |
| Disease mutation modeling | ssODN, dsDNA, or plasmid donor | Selected according to mutation size and complexity |
Our Services
Creative Biolabs provides end-to-end support for donor vector construction, from initial design consultation to final delivery of verified constructs. Clients may request a complete package or select individual service modules according to their project stage.
Target Locus and Editing Strategy Review
Before donor construction begins, we review the target gene, intended modification, expected repair pathway, and CRISPR editing system. This helps define the most appropriate donor format and design strategy. For example, a single-base substitution may be best supported by an ssODN donor, while a reporter cassette insertion may require a plasmid or AAV-compatible donor design. Key considerations include:
- Target gene structure
- Exon/intron organization
- Desired insertion site
- Expected reading frame
- Insert size and complexity
- Homology arm placement
- Delivery system compatibility
- Downstream screening strategy
Homology Arm Design
Homology arms are among the most important elements of HDR donor vectors. Their length, sequence accuracy, genomic positioning, and relationship to the cut site can strongly influence knock-in efficiency. Creative Biolabs designs homology arms according to donor format, target locus, insert size, and editing objective. Our homology arm design service may include:
- Left and right homology arm selection
- Homology arm length optimization
- Sequence verification against target locus
- Avoidance of repetitive or unstable regions
- Compatibility review with cloning strategy
- Adjustment for CRISPR cut site position
- Insert and Cassette Optimization
Vector Backbone Selection
The donor backbone must be compatible with the donor format, cloning strategy, downstream delivery method, and final application. Creative Biolabs helps clients select or customize vector backbones for plasmid donors, AAV donors, or other donor configurations. Backbone-related considerations include:
- Cloning capacity
- Bacterial propagation stability
- Restriction enzyme compatibility
- Selection marker requirements
- Viral packaging compatibility
- Plasmid preparation scale
- Downstream transfection or production use
Sequence Verification and Quality Control
Each donor vector is verified to ensure that the final construct matches the intended design. Quality control can include sequence confirmation, plasmid integrity assessment, concentration measurement, purity assessment, and endotoxin testing when applicable. QC options may include:
- Sanger sequencing
- Full insert verification
- Homology arm sequence confirmation
- Restriction digestion analysis
- Plasmid concentration measurement
- Purity evaluation
- Endotoxin level testing upon request
- Delivery-ready plasmid preparation
Workflow of Gene Editing Donor Vector Construction Service for CRISPR

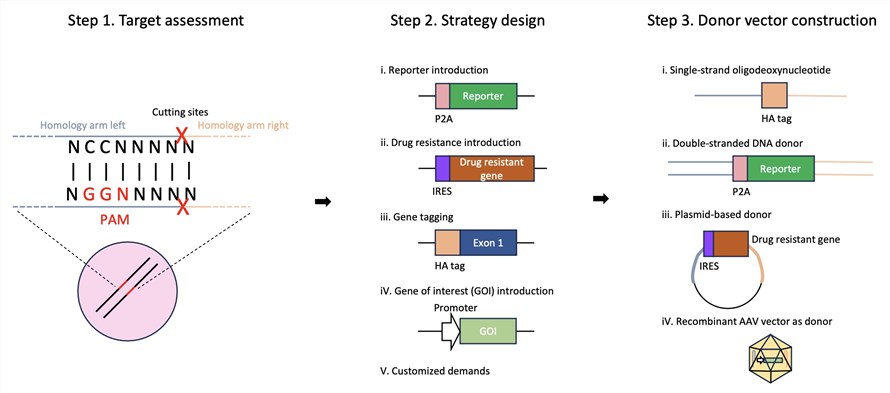

Figure. 2 Workflow of our gene editing donor vector construction service for CRISPR.
Advantages of Gene Editing Donor Vector Construction Service for CRISPR
- Precise Sequence Integration - Enables accurate insertion of desired genetic elements at specific genomic loci, essential for knock-in and targeted modification studies.
- Support for Multiple Donor Formats - Compatible with a wide range of donor designs, including ssODNs, dsDNA, plasmid donors, and viral-based templates such as AAV.
- Versatile Application Scenarios - Facilitates diverse gene editing goals, from introducing reporter tags and point mutations to generating therapeutic constructs and disease models.
- Custom Design to Fit Research Needs - Offers fully tailored donor vector construction based on target gene, homology arm length, delivery method, and experimental objective.
- QC-Validated and Delivery-Ready - All constructs undergo strict quality control, including sequence verification and plasmid integrity checks, and are delivered in ready-to-use formats.
Applications of Our CRISPR Donor Vector Construction Service
01. Gene Knock-in Cell Line Generation
Knock-in cell lines are widely used to study gene function, protein localization, signaling pathways, disease mechanisms, and therapeutic targets. Creative Biolabs constructs donor vectors for precise insertion of reporters, tags, selection markers, or functional sequences into target loci. Our donor vectors can support both endogenous gene tagging and targeted transgene insertion, enabling researchers to generate more physiologically relevant cell models than random overexpression systems.
02. Disease Modeling
Precise donor-mediated editing allows researchers to introduce disease-associated mutations into cell lines, iPSCs, or other model systems. These models are valuable for investigating disease mechanisms, validating therapeutic targets, and testing gene correction strategies. Creative Biolabs can construct donor templates for single-nucleotide variants, small insertions or deletions, gene replacement models, and patient mutation reconstruction.
03. Gene Therapy Research
In gene therapy development, donor vectors are essential for evaluating gene correction, targeted insertion, and therapeutic cassette integration strategies. Creative Biolabs supports donor construction for preclinical research workflows, including proof-of-concept studies, therapeutic gene insertion, and HDR-mediated correction experiments. Our donor construction service can be integrated with related viral vector, CRISPR reagent, and analytical testing services to support broader gene therapy research programs.
04. Reporter System Development
Reporter knock-in models help researchers monitor gene expression, promoter activity, cell differentiation, pathway activation, and protein dynamics. Creative Biolabs constructs donor vectors for fluorescent reporters, luminescent reporters, and other functional readout systems. Compared with random reporter integration, targeted reporter insertion can provide more accurate biological information by preserving endogenous regulatory context.
Frequently Asked Questions (FAQ)
Q: What information should I provide to start a donor vector construction project?
A: To begin the project, you can provide the target gene name, species, desired modification, target insertion site, insert sequence, cell type, CRISPR system, and preferred delivery method. If you already have a guide RNA sequence or editing design, that information is also helpful. If some details are not yet available, Creative Biolabs can assist with donor design planning based on your research goal.
Q: How do I know which donor format is suitable for my project?
A: The best donor format depends on the size and type of edit, the target cell type, the delivery method, and the downstream workflow. ssODNs are often suitable for small edits, while plasmid donors are commonly used for larger insertions. AAV donors may be preferred when donor delivery efficiency is important. Creative Biolabs can recommend a suitable donor format after reviewing your project requirements.
Q: Can you construct donor vectors for large gene knock-in projects?
A: Yes. Creative Biolabs supports donor vector construction for large cassette insertion, reporter knock-in, selection marker integration, and gene replacement studies. For larger constructs, we carefully evaluate insert size, homology arm design, vector backbone, and cloning strategy. If viral donor delivery is needed, we can also help assess compatibility with packaging limitations.
Q: Can silent mutations be included in the donor template?
A: Yes. Silent mutations can be introduced when appropriate to disrupt the guide RNA recognition sequence or PAM site without changing the encoded protein sequence. This can help prevent Cas9 from re-cutting the edited locus after successful integration. Our team can evaluate whether silent blocking mutations are needed for your donor design.
Q: Do you provide donor vectors for reporter gene insertion?
A: Yes. We construct donor vectors for fluorescent reporters, luminescent reporters, epitope tags, affinity tags, and other functional elements. Reporter knock-in projects require careful design to preserve reading frame, endogenous regulation, and protein function. Creative Biolabs can customize donor architecture based on whether the reporter should be inserted at the N-terminus, C-terminus, or another genomic position.
How Gene Editing Donor Vector Construction Service for CRISPR Can Assist Your Project
At Creative Biolabs, our gene editing donor vector construction service delivers ready-to-use donor constructs in multiple formats, customized to match the specific editing goals and delivery systems of your projects. Every construct undergoes rigorous quality control, including sequence verification, homology arm integrity checks, and endotoxin testing when applicable, ensuring that each product is both functionally reliable and theoretically optimized for high knock-in efficiency. By providing high-quality, project-specific donor vectors, we help researchers save time, reduce experimental variability, and improve the success rate of precise genome modifications in CRISPR-based studies, whether for generating cell models, performing functional gene analysis, or developing gene therapies.
Contact us to learn how tailored donor vector solutions of Creative Biolabs can streamline your workflow, enhance knock-in efficiency, and drive success in your next gene editing project.
Reference
- Denes C E, Cole A J, Aksoy Y A, et al. Approaches to enhance precise CRISPR/Cas9-mediated genome editing. International journal of molecular sciences, 2021, 22(16): 8571. https://doi.org/10.3390/ijms22168571 Distributed under Open Access license CC BY 4.0, without modification.
