KCNJ4 Membrane Protein Introduction

Introduction of KCNJ4

KCNJ4 (also known as Kir2.3, IRK3, HIRK2, HRK1), is encoded by the KCNJ4 gene. It belongs to inwardly rectifying K+ (Kir) channels family, Kir2 subfamily, which are characterized by strong inward rectification and constitutive activity and are detected in various cells, including neurons, glial cells, cardiac and skeletal myocytes, epithelial cells, and macrophages. As one of four identified Kir2 subfamily members in mammals, KCNJ4 can also tetramerize to form functional inwardly rectifying channels, in which each monomer contains two transmembrane helix domains (M1 and M2), an ion-selective P-loop between M1 and M2, and cytoplasmic N- and C-terminal domains. The distribution of KCNJ4 is predominantly focused in both heart and brain, especially in the cardiac myocytes and forebrain region. Furthermore, it is documented that KCNJ4 is mainly localized at the postsynaptic membrane of excitatory synapses.

Basic Information of KCNJ4
Protein Name Inward rectifier potassium channel 4
Gene Name KCNJ4
Aliases Kir2.3, IRK3, HIRK2, HRK1
Organism Homo sapiens (Human)
UniProt ID P48050
Transmembrane Times 2
Length (aa) 445

Function of KCNJ4 Membrane Protein

As one the member of Kir family, KCNJ4 may play important roles in the regulation of resting membrane potential, cellular excitability and potassium homeostasis in the nervous system and various peripheral tissues. KCNJ4 is reported to participate in the cardiac classical inward rectifier potassium currents (IK1) in neonatal rat cardiomyocytes, responsible for stabilizing the resting membrane potential, determining excitation threshold, and initiating the final repolarization phase of the cardiac action potential. As one cationic amphiphilic drug, carvedilol can inhibit KCNJ4 channels by interfering with the phosphatidylinositol-4,5-bisphosphate (PIP2)-channel interaction, a critical factor for the activation of Kir channels. In the nervous system, neuronal KCNJ4 distributes diffusely in the nuclei and on the plasma membrane of pyramidal cells in the CA3 region of hippocampus, which is related to cognition, memory, emotion and neuropsychiatric disorders. Notably, various intra- and extra-cellular signal molecules including ATP, protons, and protein kinase C can modulate KCNJ4 channels activity. KCNJ4 channels can directly couple to G proteins, which allows these channels to contribute to neurotransmission and cell-cell communications.

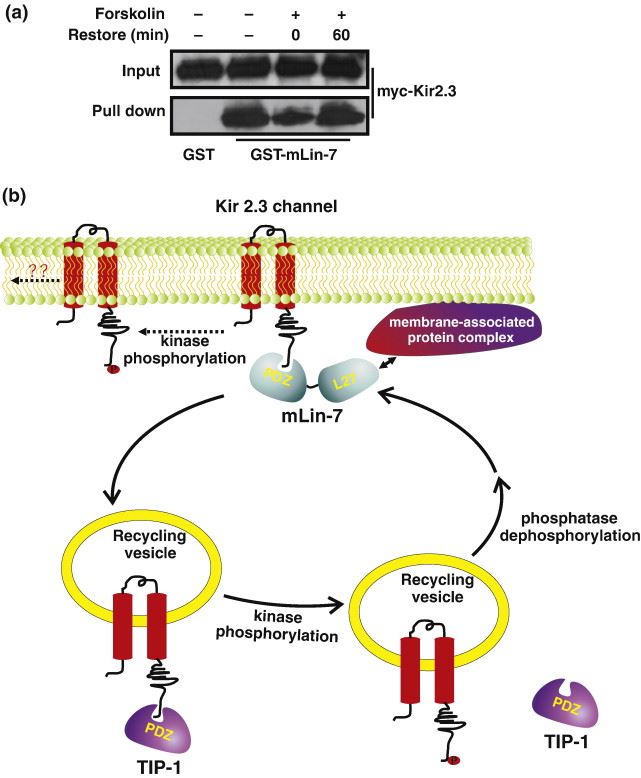

Model of Kir2.3 channel regulation by TIP-1. Fig.1 Model of Kir2.3 channel regulation by TIP-1. (Yan, 2009)

Application of KCNJ4 Membrane Protein in Literature

  1. Rosenhouse-Dantsker A., et al. Interplay between lipid modulators of Kir2 channels: cholesterol and PIP2. Computational and structural biotechnology journal. 2014, 11(19): 131-137. PubMed ID: 25408847

    In this article, the authors examined the cross-talk between cholesterol and PIP2 in the regulation of Kir2 channels and they found that dialysis of neomycin will lead to a decrease in Kir2.1 and Kir2.3 current amplitudes (current rundown), consistent with a reduction in PIP2 levels. While the reduction would be significantly delayed by cholesterol depletion, suggesting that cholesterol depletion strengthened the interaction between Kir2 channels and PIP2.

  2. Inanobe A., et al. Inward rectifier K+ channel Kir2.3 is localized at the postsynaptic membrane of excitatory synapses. American Journal of Physiology-Cell Physiology. 2002, 282(6): C1396-C1403. PubMed ID: 11997254

    This article identified that the precise localization in the forebrain of Kir2.3 was focused on the postsynaptic membrane of excitatory synapses, where it played important role in the formation of the resting membrane potential of the spines and then would affect the response of N-methyl-D-aspartic acid receptor channels at the excitatory postsynaptic membrane.

  3. Zhang D.Y., et al. Epidermal growth factor receptor tyrosine kinase regulates the human inward rectifier potassium KIR2.3 channel, stably expressed in HEK 293 cells. British journal of pharmacology. 2011, 164(5): 1469-1478. PubMed ID: 21486282

    The authors demonstrated that the epidermal growth factor receptor (EGFR) tyrosine kinase can up-regulate the KIR2.3 channel via phosphorylation of the Y234 residue, which might be involved in the endogenous regulation of cellular electrical activity.

  4. Kobayashi T., et al. Pregnenolone sulfate potentiates the inwardly rectifying K+ channel Kir2.3. PLoS One. 2009, 4(7): e6311. PubMed ID: 19621089

    This article used the Xenopus oocyte expression assay to test the effects of various neurosteroids on Kir2.3 channels, and revealed that pregnenolone sulfate (PREGS) was a positive modulator of Kir2.3 channels, which can regulate the activation of Kir2.3-containing Kir2 heteromeric channels.

  5. Cohen N.A., et al. Inhibition of an inward rectifier potassium channel (Kir2.3) by G-protein βγ subunits. Journal of biological chemistry. 1996, 271(50): 32301-32305. PubMed ID: 8943291

    This article firstly identified that Kir2.3 channels were completely suppressed by co-expression with G-protein beta/gamma subunits, consistent with suppression of Kir2.3 currents resulting from a direct protein-protein interaction between the channel and G-protein beta/gamma subunits.

KCNJ4 Preparation Options

To obtain the soluble and functional target protein, the versatile Magic™ membrane protein production platform in Creative Biolabs enables many flexible options, from which you can always find a better match for your particular project. Aided by our versatile Magic™ anti-membrane protein antibody discovery platform, we also provide customized anti-KCNJ4 antibody development services.

Over years, Creative Biolabs has successfully generated many functional membrane proteins for our customers. We are happy to tailor one-stop, custom-oriented service packages regarding a variety of membrane protein targets. Please feel free to contact us for more information.


  1. Yan X, et al. (2009). Molecular mechanism of inward rectifier potassium channel 2.3 regulation by tax-interacting protein-1. Journal of molecular biology. 392(4): 967-976.
