Phage Display vs. Yeast Display

Introduction to Display Technologies

Overview of Display Technologies in Protein Engineering

Display technologies represent pivotal platforms in molecular biology and biotechnology, designed to link phenotype (displayed protein) with genotype (underlying DNA sequence). The current systems enable high-throughput screening for large molecular libraries, and they revolutionize protein engineering alongside antibody development and molecular interaction research. Phage display and yeast surface display stand out as the top methods among display techniques because they offer the best combination of versatility and scalability with downstream engineering compatibility.

Importance of Phage Display and Yeast Display Methods

Both phage and yeast display systems facilitate the rapid evolution of proteins and antibodies with desirable traits such as high affinity, specificity, and stability. Their significance lies in:

• Accelerating antibody engineering workflows
• Enhancing affinity maturation
• Enabling directed evolution of biomolecules
• Supporting mechanistic studies of molecular interactions

What is Phage Display?

Definition and Historical Background

Phage display is a Nobel Prize-winning technology first introduced by George P. Smith in 1985. It involves displaying peptides or proteins on the surface of bacteriophages—primarily M13 or fd filamentous phages—by genetically fusing the protein of interest to phage coat proteins.

Mechanism of Phage Display

The process involves the creation of a phage library by inserting gene variants into a phage genome, which are then expressed as fusions to coat proteins (commonly pIII or pVIII).

• Gene Library Construction
• Insert into Phage Genome
• Expression as Coat Protein Fusion
• Display on Phage Surface
• Biopanning and Selection
• Amplification and Iteration

Fig. 1 Generation of monoclonal antibodies targeting LPS from E. coli O111:B4 via phage display.^{1, 3}

Applications in Antibody Discovery and Protein Engineering

• Isolation of high-affinity antibodies
• Discovery of enzyme inhibitors
• Engineering of novel binding scaffolds
• Mapping epitopes and protein interactions

What is Yeast Display?

Definition and Development History

Yeast surface display was developed in the 1990s as a eukaryotic alternative to prokaryotic display systems. It involves the fusion of proteins to Aga2p, which associates with Aga1p on the surface of Saccharomyces cerevisiae cells, enabling surface expression.

Mechanism of Yeast Surface Display

• DNA Encoding Protein Library
• Transformed into Yeast Cells
• Protein-Aga2p Fusion
• Surface Display via Aga1p Anchor
• FACS-Based Screening

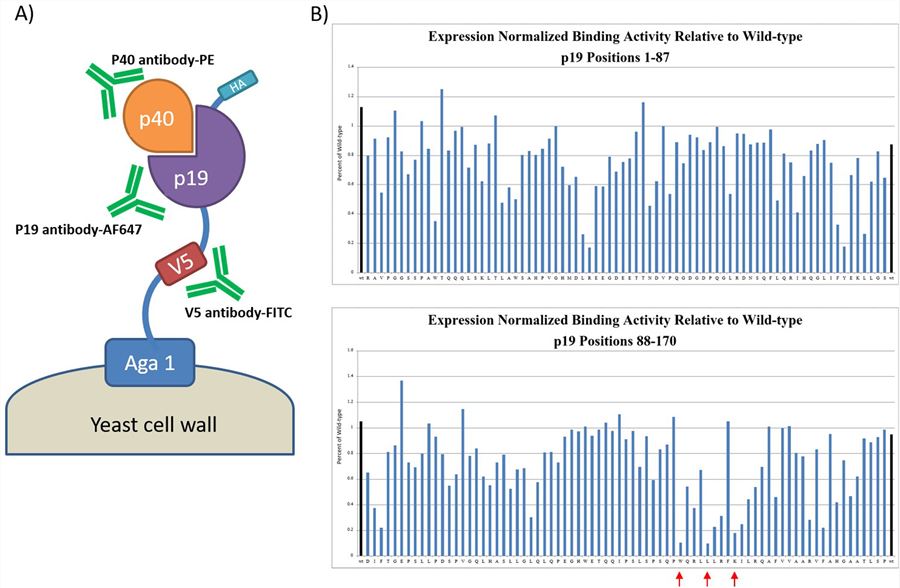

Fig. 2 Display of IL-23 and p19 alanine variants on yeast.^{2, 3}

Applications in Antibody Engineering and Studying Protein Interactions

• Fine-tuning binding affinities via FACS
• Selection of conformational epitopes
• Analysis of protein stability and expression
• Study of protein-protein interactions

Comparative Analysis: Phage Display vs. Yeast Display

Library Size and Diversity

• Phage Display: Due to high transformation efficiency in bacteria, phage display supports libraries up to 10¹¹ variants.
• Yeast Display: Limited by yeast transformation, typically maxes out at 10⁹ variants.

Expression System and Post-Translational Modifications

• Phage Display: Uses E. coli, lacking glycosylation or complex folding.
• Yeast Display: Eukaryotic system enables glycosylation and proper disulfide bond formation.

Selection and Screening Methods

• Phage Display: Involves biopanning; qualitative and often biased by target immobilization.
• Yeast Display: Allows FACS-based quantitative sorting for precise affinity discrimination.

Protein Folding and Quality Control

• Phage Display: Limited by bacterial folding machinery.
• Yeast Display: Secretory pathway ensures accurate protein folding, mimicking mammalian expression.

Avidity Effects

• Phage Display: Displays 1–5 copies per phage particle.
• Yeast Display: Displays ~10⁴–10⁵ copies per yeast cell, enhancing avidity and allowing selection of weaker binders.

Combining Phage and Yeast Display Technologies

In the evolving landscape of antibody and protein engineering, no single display platform is universally optimal. Phage and yeast display systems exhibit distinct advantages and complementary strengths. When strategically combined, they create a synergistic pipeline that enhances the efficiency, precision, and success rate of molecular discovery campaigns.

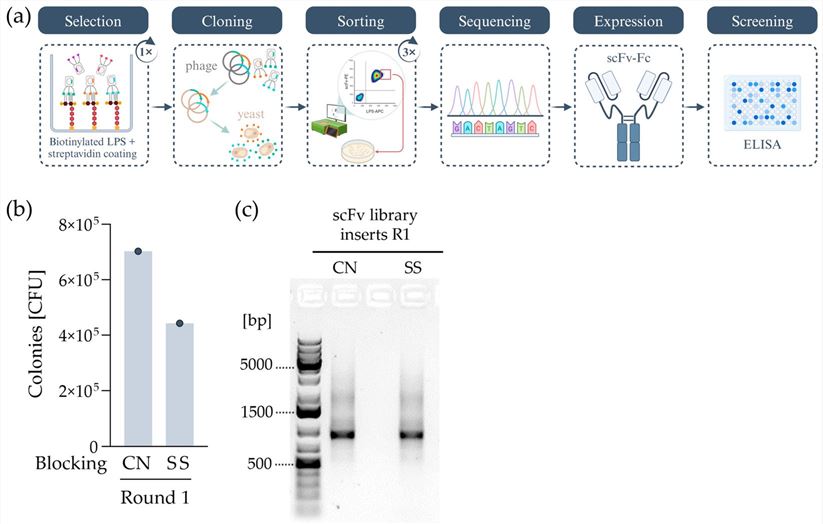

Fig. 3 Generation of monoclonal antibodies targeting LPS from E. coli O111:B4 via a combination of phage and yeast display.^{1, 3}

Strategies for Integrating Both Methods

The integration of phage and yeast display is not merely sequential, but rather strategic and modular, allowing for iterative refinement.

Table. 1 Key Integration Strategies

Enhanced Performance Through Combination

Combining phage and yeast display can unlock new discovery frontiers that are inaccessible using either system alone:

• Depth & Breadth in Library Utilization: Phage display supports massive diversity (up to 10¹¹ clones) for comprehensive exploration. Yeast display enables quantitative refinement through FACS, improving affinity and specificity.
• Enhanced Binder Quality: Phage-selected clones often include false positives or weak binders. Transition to yeast allows removal of aggregation-prone, misfolded, or low-expression variants.
• Target Class Flexibility: Phage is efficient with soluble proteins and peptides. Yeast display excels with complex, membrane-associated, and conformational epitopes, often critical in therapeutic target classes like GPCRs and ion channels.

Case Examples of Successful Integration

• Case 1: Neutralizing Antibodies Against SARS-CoV-2

Phage Display: Identified a panel of scFv clones targeting spike protein RBD.

Yeast Display: Refined the top 20 clones, improving Kd from 50 nM to 1.2 nM via FACS sorting.

Outcome: Final antibodies showed enhanced neutralization in pseudovirus assays.

• Case 2: Engineering Cross-Reactive Anti-Cytokine Antibodies

Phage libraries were used to isolate binders to IL-1α and IL-1β.

Clones were transitioned to yeast for dual-affinity sorting (multi-color FACS).

Result: Identification of cross-reactive clones with nanomolar affinities and low off-target activity.

• Case 3: Affinity Maturation of Anti-GPCR Binders

Phage library failed to produce high-affinity clones against a GPCR extracellular loop.

Yeast display with mammalian-like folding yielded several conformational binders.

Fusion of both approaches led to a multi-epitope binder cocktail, suitable for therapeutic development.

When to Use Combined Systems: A Decision Guide
