Magnetic Nanoparticle-Based Delivery Strategies: A Simple Guide to Smarter, Targeted Therapies

Magnetic nanoparticle-based delivery strategies are changing how drugs reach disease sites. Instead of flooding the whole body, they help move medicine exactly where it is needed, using the power of magnets. In this guide, we will walk through what magnetic nanoparticles are, how they work, where they are used, and how Creative Biolabs can support your next project.

What Are Magnetic Nanoparticles?

Magnetic nanoparticles are very small particles, usually between 1 and 100 nanometers in size. Most biomedical magnetic nanoparticles are made from superparamagnetic iron oxide, such as magnetite (Fe₃O₄) or maghemite (γ-Fe₂O₃).

Because they are so small, they can move through the bloodstream and enter tissues. In addition, they are magnetic, so they can react to an external magnetic field. The combination of these two functional traits makes magnetic nanoparticles for drug delivery very attractive for targeted therapies.

In many systems, each magnetic nanoparticle has three key parts (Figure 1):

• Magnetic core – provides the response to the magnetic field.
• Coating layer – often made of polymers, silica, lipids, or even gold to improve stability and biocompatibility.
• Targeting or functional layer – such as antibodies, peptides, aptamers, or sugars that help the particle recognize and bind to a specific cell type.

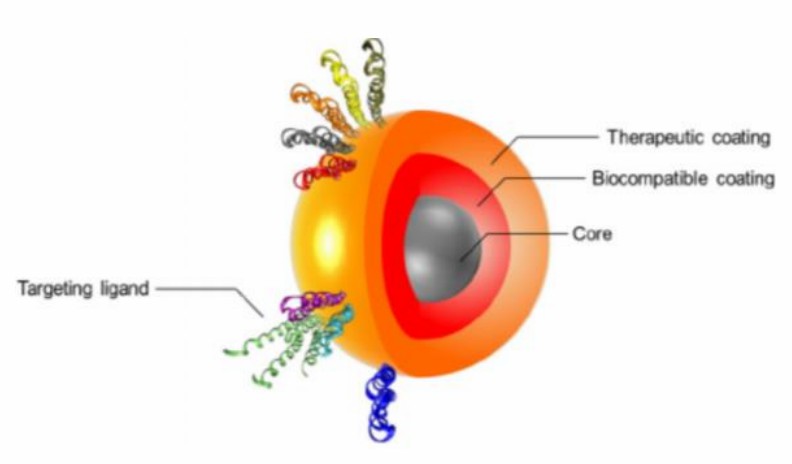

Fig.1 The structure of magnetic nanoparticles.²

You can think of these particles as tiny delivery trucks that you can steer with a magnet and decorate with the right "address labels" to find the correct destination.

What Makes Magnetic Nanoparticles So Useful?

Magnetic nanoparticles bring several important benefits to drug delivery:

• Better targeting
  Because they respond to a magnet, magnetic nanoparticles can be guided more precisely than many other carriers.
• Lower side effects
  Since more drugs stay near the target and less reach healthy organs, toxicity can be reduced.
• Flexible payloads
  Magnetic nanoparticles can carry small molecules, peptides, proteins, nucleic acids, or even combination therapies.
• Multifunctional design
  A single particle can include a drug, an imaging agent, and a targeting ligand at once. This supports theranostic strategies, where diagnosis and therapy happen together.
• Compatibility with other delivery systems
  Creative Biolabs can integrate magnetic cores into liposomes, polymeric nanoparticles, and other module delivery systems (Figure 2).

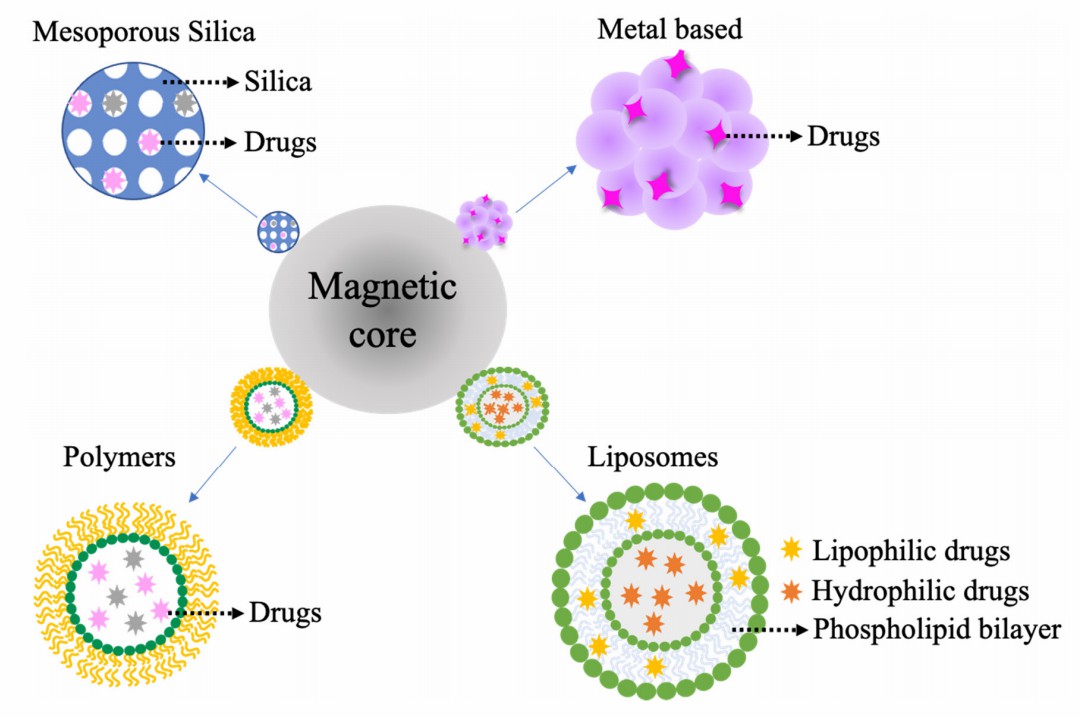

Fig.2 Integration of the magnetic cores into other delivery systems.³

For more information, please contact us through our website, Targeted Delivery Solutions and Module Delivery Systems.

How Magnetic Nanoparticle Delivery Works

Passive Targeting

First, magnetic nanoparticles can follow the same rules as many other nanocarriers. Tumors often have leaky blood vessels and poor drainage. This is known as the enhanced permeability and retention (EPR) effect.

Because of the EPR effect, nanoparticles can pass more easily into tumor tissue and stay there longer than in normal tissue. This process is called passive targeting. It does not use magnets directly, but it helps concentrate the nanoparticles near the tumor before any extra control is added.

Active Magnetic Targeting

In active magnetic targeting, an external magnet or a high-gradient magnetic field is placed near the body region that needs treatment.

In simple steps:

• Magnetic nanoparticles are loaded with a drug.
• The patient receives the nanoparticles, often by injection.
• A magnet is placed near the tumor or target site.
• The magnetic nanoparticle drug delivery system is pulled toward that area and held there.

This approach can create a much higher drug concentration at the disease site while keeping the rest of the body exposed to lower levels of the drug. As a result, magnetic nanoparticle-based delivery strategies can improve effectiveness and reduce side effects at the same time.

Magnetic Hyperthermia: Heating Tumors with Magnetic Fields

Magnetic nanoparticles do not only carry drugs. They can also produce heat when placed in an alternating magnetic field. The basis of magnetic hyperthermia is shown in Figure 3:

• Magnetic nanoparticles are delivered to the tumor.
• An alternating magnetic field is applied from outside the body.
• The particles turn magnetic energy into heat.
• Cancer cells, which are more sensitive to heat, are damaged or killed.

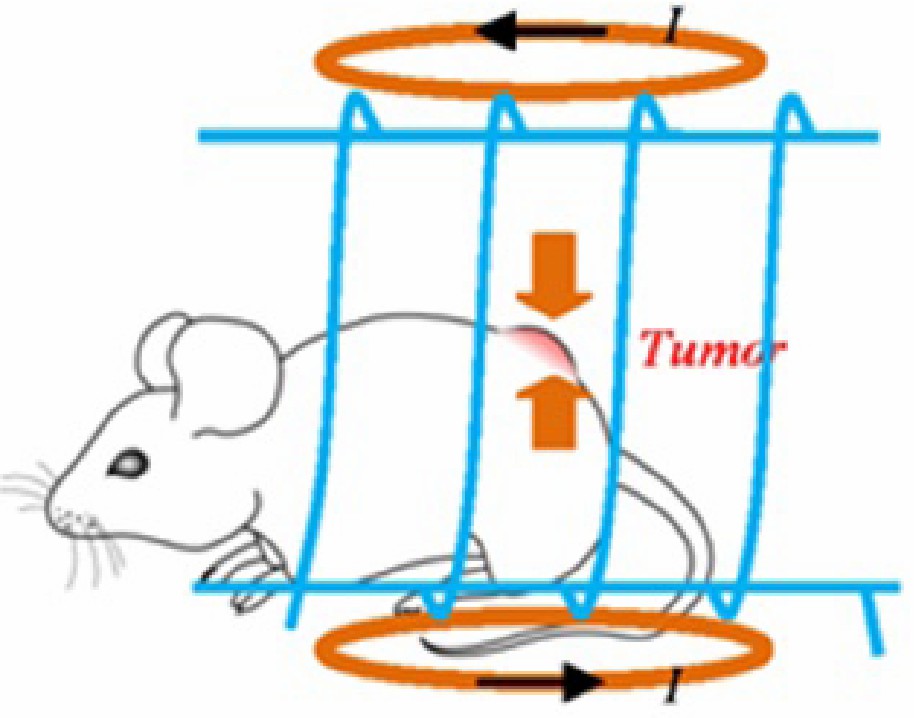

Fig.3 The basis of magnetic hyperthermia.⁴

This method can be used alone or together with chemotherapy and radiation. Because the heat is generated inside the tumor, magnetic hyperthermia can be more focused than simple external heating. However, careful control of the field strength, exposure time, and nanoparticle dose is essential for safety.

Types of Magnetic Nanoparticles Used in Delivery

Several main types of magnetic nanoparticles are used in delivery strategies:

SPIONs (Superparamagnetic Iron Oxide Nanoparticles)

These are the most common for biomedical applications due to their strong response to magnetic fields and good safety profile.

Polymer-coated magnetic nanoparticles

A polymer shell, such as PEG, chitosan, or PLGA, improves circulation time and stability. It also provides sites for attaching drugs and targeting ligands.

Magnetic liposome hybrids

Here, magnetic nanoparticles are encapsulated inside liposomes. This combines the well-known behavior of liposomes with the added control of magnetic guidance. Creative Biolabs’ module delivery systems can be adapted to such hybrid designs.

Core-shell structures (e.g., gold-shell MNPs)

A metallic shell, such as gold, can support additional functions, including photothermal effects or high-density ligand attachment.

To explore how these magnetic nanoparticle formats integrate with broader nanocarrier architectures, see our advanced module delivery systems for more design options.

Key Biomedical Applications

Drug Delivery

Magnetic nanoparticles can carry many types of drugs, including chemotherapies and anti-inflammatory agents. By using both passive and active targeting, they can improve drug accumulation at disease sites.

This makes magnetic nanoparticle drug delivery a powerful strategy for tumors, inflamed tissues, and even local infections.

Targeted Cancer Therapy

In cancer, the main goals are to kill tumor cells while protecting healthy tissue. Magnetic nanoparticles support this goal by:

• Delivering chemotherapy drugs directly to the tumor.
• Working together with magnetic hyperthermia to weaken or destroy cancer cells.
• Enabling repeated treatment cycles with lower systemic toxicity.

Diagnostic Imaging / MRI Contrast

Iron oxide-based magnetic nanoparticles for biomedical applications have long been used as MRI contrast agents. They change the local magnetic environment and improve image contrast.

This allows doctors to track where the nanoparticles go. When combined with a therapeutic payload, this forms the basis of image-guided therapy.

Theranostics (Therapy + Imaging)

In theranostic designs, a single magnetic nanoparticle platform is used for:

• Carrying a drug.
• Improving MRI contrast or other imaging signals.
• Enabling controlled heating or triggered release.

Theranostic magnetic nanoparticles applications make it easier to monitor treatment in real time and adjust dosing or exposure as needed.

Challenges in Using Magnetic Nanoparticles

Although the promise is great, several challenges must be addressed before magnetic nanoparticle-based delivery strategies become routine in the clinic:

• Biocompatibility and long-term safety
  Particles must be broken down or cleared safely and should not build up in sensitive organs.
• Deep-tissue targeting
  External magnets are more effective near the body surface. Reaching deep tumors and organs with strong gradients is still difficult.
• Manufacturing and quality control
  Particle size, magnetization, coating thickness, and drug loading must be tightly controlled for every batch.
• Regulatory pathways
  Because these are complex combination products, clinical testing and approval can be more demanding than for simple small molecules.

Quote to remember:

"The science of magnetic nanoparticles is already strong. The main task now is to turn smart lab designs into safe and reliable medicines for patients."

Creative Biolabs and Magnetic Nanoparticle Delivery Development

At Creative Biolabs, we help turn concepts into tested, optimized magnetic nanoparticle-based delivery strategies. Our expertise covers the full design path, including:

• Platform selection and design
  Choosing between SPIONs, polymer-coated systems, liposome–MNP hybrids, or other advanced carriers that fit your project.
• Surface engineering and functionalization
  Attaching antibodies, peptides, or other ligands to improve targeting performance, supported by our module delivery systems.
• Integration with existing delivery modules
  Combining magnetic cores with liposomes, polymeric micelles, or other platforms available through our targeted delivery services.
• Characterization and optimization
  Measuring size, surface charge, magnetization, stability, and drug loading, and then adjusting the design for better performance.

Related Services You May Be Interested in

FAQs

Conclusion

Magnetic nanoparticle-based delivery strategies offer a powerful way to make modern therapies smarter, more targeted, and more efficient. By combining nanoscale carriers, magnetic control, and advanced surface engineering, these systems bring us closer to precise, patient-friendly treatments in oncology and beyond. However, moving from concept to clinic requires deep expertise in nanoparticle design, surface chemistry, targeting biology, and regulatory expectations.

If you are planning a project on magnetic nanoparticles for drug delivery, magnetic hyperthermia, or theranostic platforms, Creative Biolabs is ready to help. Our team can support you from early design through optimization and preclinical validation.

Get in touch today to discuss your magnetic nanoparticle delivery strategy and turn your idea into a concrete, high-impact solution.

References

1. Prijic, S. & Sersa, G. "Magnetic nanoparticles as targeted delivery systems in oncology". Radiology and Oncology 45, 1–16 (2011). https://content.sciendo.com/doi/10.2478/v10019-011-0001-z.
2. Graham, W. et al. "Magnetic Nanoparticles and Drug Delivery Systems for Anti-Cancer Applications: A Review". Nanomaterials 15, 285 (2025). https://www.mdpi.com/2079-4991/15/4/285. Distributed under Open Access license CC BY 4.0, without modification.
3. Tan, M., Reyes-Ortega, F. & Schneider-Futschik, E. K. "Magnetic Nanoparticle-Based Drug Delivery Approaches for Preventing and Treating Biofilms in Cystic Fibrosis". Magnetochemistry 6, 72 (2020). https://www.mdpi.com/2312-7481/6/4/72. Distributed under Open Access license CC BY 4.0, without modification.
4. Liu, G. et al. "Magnetic Nanoparticle for Biomedicine Applications". NTMB 2, 1–7 (2015). http://www.heraldopenaccess.us/fulltext/Nanotechnology-Nanomedicine-&-Nanobiotechnology/Magnetic-Nanoparticle-for-Biomedicine-Applications.php. Distributed under Open Access license CC BY 4.0, without modification.
