Magnetic Targeting Strategies in Drug Delivery: From Concept to Custom Solutions

Magnetic targeting strategies are transforming modern drug delivery by using magnetic nanoparticles and external magnetic fields to guide therapies exactly where they are needed. This approach gives researchers far greater spatial control compared with traditional targeting methods, helping improve treatment precision while reducing unwanted side effects. As interest grows across oncology, neurology, and advanced nanomedicine, magnetic targeting is becoming a key pillar in next-generation delivery platforms. This article explains how the strategy works, where it excels, and how Creative Biolabs supports custom magnetic delivery system development.

What Is Magnetic Targeting in Drug Delivery?

Magnetic targeting in drug delivery is a strategy where drugs are attached to or loaded into magnetic nanoparticles, and then an external magnetic field is used to guide these particles toward a specific site in the body, such as a tumor. Human tissues are only weakly affected by magnetic fields. However, magnetic nanoparticles, often made from iron oxide, respond strongly. Because of this, the magnetic moment sits in the particles, not in the tissue. As a result, clinicians can remotely influence where these drug carriers travel and where they stay. Compared with passive targeting (like using the EPR effect) and ligand-based targeting (such as antibodies or peptides), magnetic drug delivery adds an extra layer of control. It does not replace other strategies; instead, it combines with them to raise the chances that the drug reaches the disease site.

How Magnetic Targeting Works

Magnetic Nanoparticles Used for Targeting

Most magnetic targeting strategies are built around superparamagnetic iron oxide nanoparticles (SPIONs), often based on Fe₃O₄. They can be used alone or embedded inside larger carriers (Figure 1). Common magnetic nanoparticle platforms include:

• SPION cores (Figure 1A)

Small iron oxide particles with strong magnetic response and good biocompatibility when properly coated.

• Polymeric carriers

Polymers such as PLGA or PEG-based systems can embed multiple nanoparticles, increase circulation time, and carry hydrophobic or hydrophilic drugs (Figure 1A).

• Liposomal systems

Lipid bilayer vesicles that can encapsulate drugs while hosting clusters of magnetic nanoparticles for better responsiveness to external fields.

• Inorganic and hybrid systems (Figure 1B)

For example, silica-coated magnetite particles or multifunctional theranostic particles that combine magnetic, optical, and drug functions.

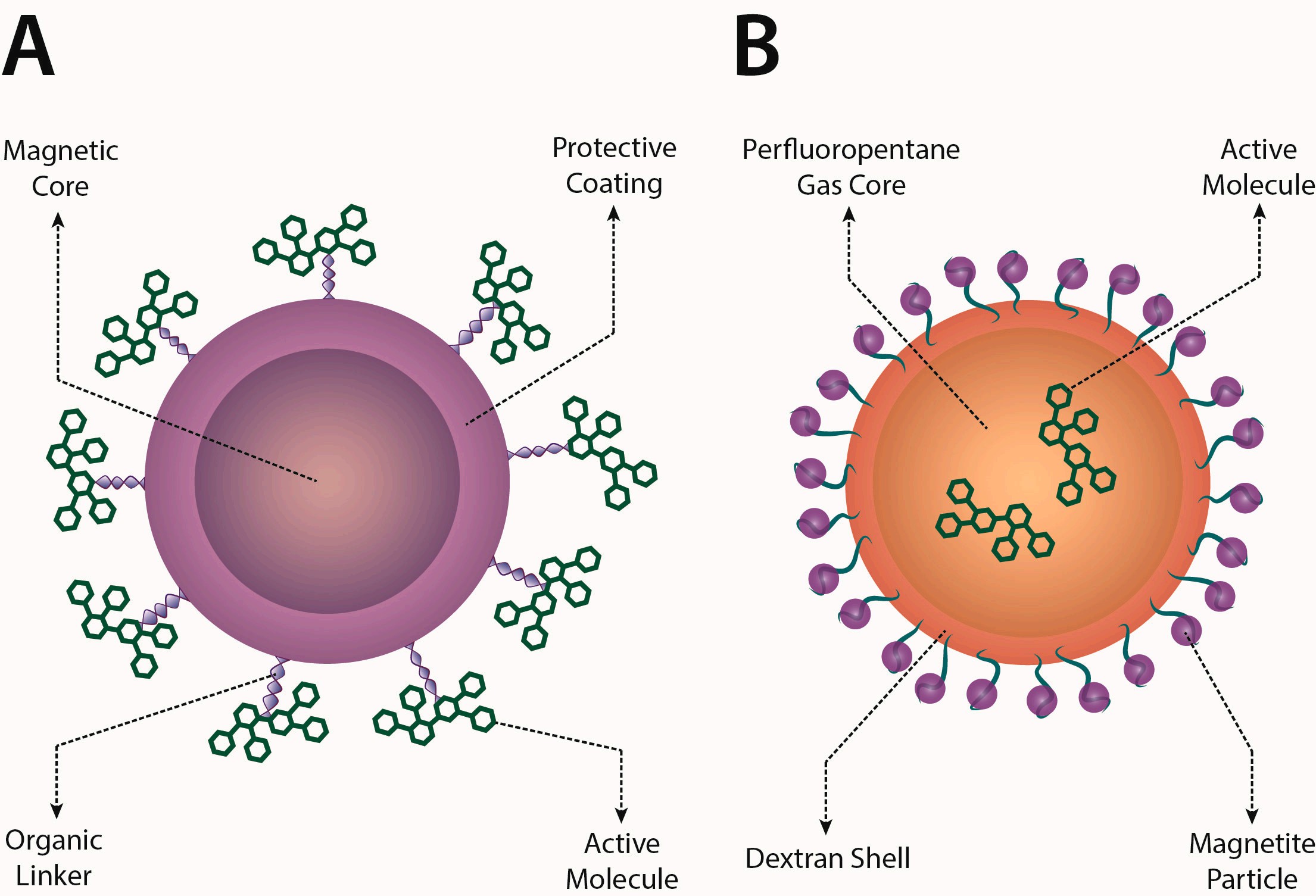

Fig.1 Two strategies for drug delivery through magnetic nanocarriers. (A) The magnetic element is the core of the nanoparticles, which is surrounded by the protective coating surface; (B) The magnetic element consists of several iron nanoparticles attached to the surface of a nano-bubble structure.²

At Creative Biolabs, these elements can be combined into custom modular delivery platforms, integrating magnetic cores, carriers, and ligands. You can explore our broader approach in the module delivery systems section.

Mechanisms: How External Magnetic Fields Guide Therapeutics

Magnetic drug delivery works mainly through field gradients:

• Static magnetic field gradients

A strong magnet or coil creates a gradient that pulls magnetic nanoparticles toward the field source. Once the particles reach the region of interest, the field can help hold them in place, even against blood flow.

• Alternating magnetic fields (AMF)

When the field is switched rapidly, magnetic nanoparticles can generate heat. This effect is used in magnetic hyperthermia and in thermo-responsive carriers where heat triggers drug release.

More advanced setups use steering coils and multi-magnet systems to better shape the field inside the body. These systems aim to improve control at depth in larger animals and humans, where simple surface magnets are not enough.

Magnetic Targeting Strategies

Magnetic targeting strategies can be grouped into several main approaches:

Static field guidance

Uses a magnet near the target region (for example, over a tumor) to draw circulating nanoparticles out of the bloodstream toward that site (Figure 1).

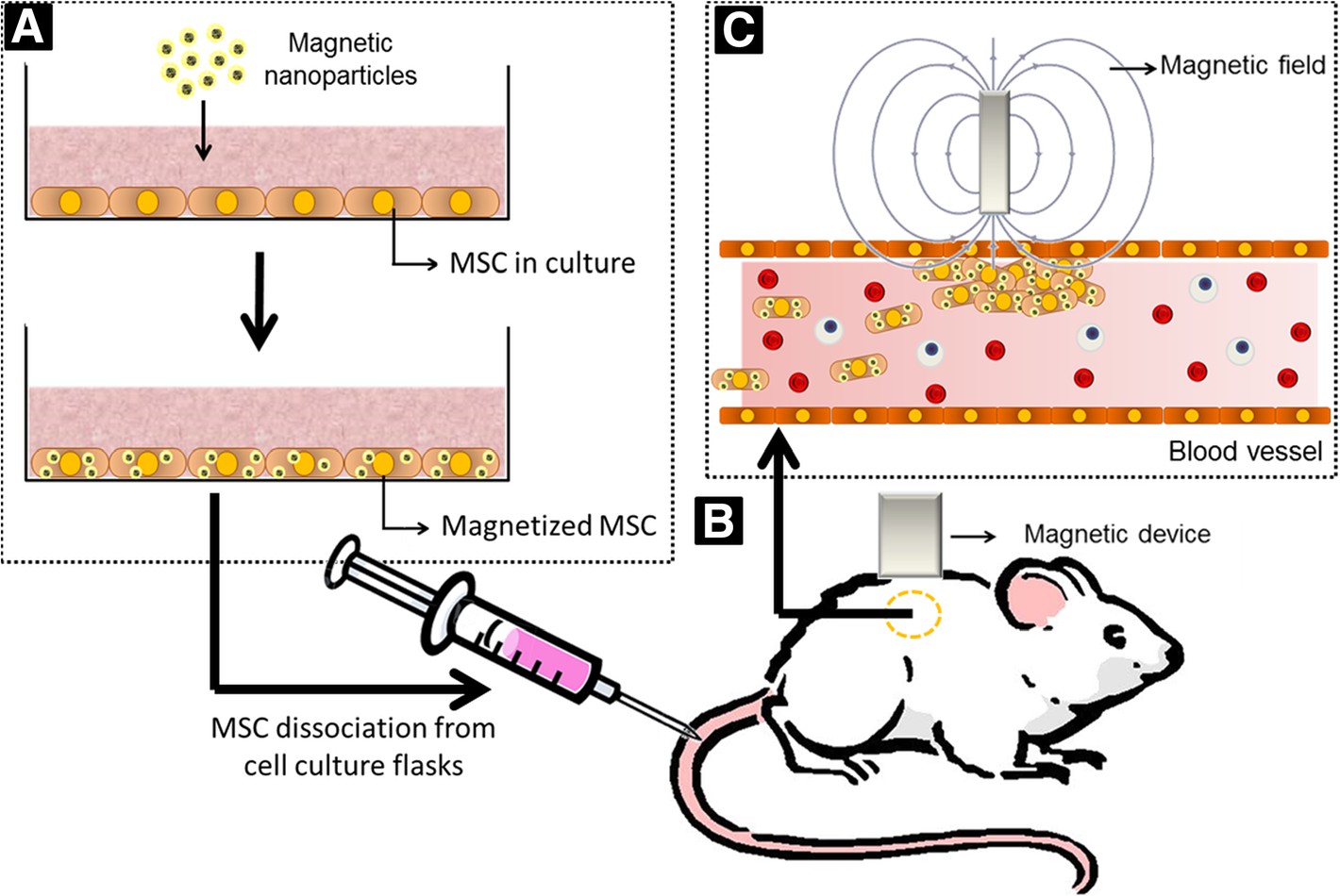

Fig.2 The mechanism of the static field guidance.¹

Magnetic retention strategies

Focus on keeping the nanoparticles in a region for longer. This is important when blood flow or organ motion might otherwise wash them away quickly.

Magnetic hyperthermia strategies

Use alternating fields to heat magnetic nanoparticles already in or near a tumor. The heat can kill cancer cells or make them more sensitive to other treatments.

Magnetically triggered drug release

Combine magnetic particles with heat-sensitive or responsive materials. When an alternating field is applied, the local temperature rises, and drug release accelerates.

Dual magnetic + molecular targeting

Add ligands such as antibodies, peptides, or small molecules to the particle surface. The external field localizes the carrier, and the ligand promotes cell-level binding and uptake.

Together, these magnetic targeting strategies build a powerful toolkit for more precise and controllable drug delivery.

Applications of Magnetic Targeting

Targeted Chemotherapy and Gene Delivery

In oncology, magnetic drug delivery can help concentrate chemotherapy or gene therapy vectors at a tumor site. After systemic injection, an external magnet near the tumor pulls the particles into the region, raising the local drug dose.

This may allow:

• Higher tumor exposure with the same or even lower total dose.
• Reduced side effects in healthy tissues.
• Better control over when and where the drug acts.

Similar logic applies to gene delivery. Magnetic vectors can bring DNA, RNA, or gene-editing tools closer to target cells, supporting more efficient transfection in localized regions.

Magnetic Hyperthermia for Oncology

Magnetic hyperthermia occurs when magnetic nanoparticles in a tumor are exposed to an alternating magnetic field. The particles convert field energy into heat.

By raising local temperature above about 42-45℃, hyperthermia can:

• Induce cell stress and necrosis in tumor tissues.
• Make cancer cells more sensitive to chemotherapy and radiotherapy.
• Create a more favorable environment for combined therapies.

Preclinical studies have even reached higher temperatures in some small-animal models, leading to strong tumor damage. However, careful control is essential to avoid harming healthy tissues.

Combination Strategies and Hybrid Approaches

Magnetic targeting rarely works in isolation. It is often combined with:

• Passive EPR-based targeting, using leaky tumor vessels.
• Ligand-based targeting, such as antibody-labeled particles.
• Catheter-based local delivery, to place particles near deep lesions.
• Stimuli-responsive materials that respond to heat, pH, or enzymes.

These hybrid strategies can make magnetic targeting more robust and translatable, especially in complex human anatomy.

Applications Beyond Oncology

Although most attention is on cancer, magnetic nanoparticle drug delivery is also explored in:

• Neurology, for crossing local barriers or treating localized lesions.
• Regenerative medicine, where magnetically guided particles deliver growth factors or genes to damaged tissues.
• Infection and inflammation models for local antibiotic or anti-inflammatory delivery.

As field systems improve, more non-oncology indications may become realistic targets.

Applications for Theranostics and Image-Guided Delivery

Magnetic nanoparticles are not only drug carriers. They are also powerful imaging tools.

Many iron-oxide nanoparticles act as MRI contrast agents, especially for T2-weighted imaging. When combined with other labels (fluorescent dyes, CT contrast, or radioisotopes), a single platform can offer:

• Real-time tracking of where particles go after injection.
• Monitoring of drug distribution and retention at the target.
• Theranostic use, meaning the same construct supports diagnosis, treatment, and follow-up.

At Creative Biolabs, such theranostic designs can be integrated into modular delivery platforms, combining imaging labels, magnetic cores, and tailored carriers. This design concept aligns well with our targeted delivery solutions and module delivery systems.

Key Design Considerations for Effective Magnetic Targeting Systems

For magnetic targeting strategies to work in real projects, several design points must be optimized:

Magnetic core properties

• Core size and crystallinity impact saturation magnetization.
• Higher magnetization often means a stronger response to clinical field strengths.

Overall particle size and surface

• Many systems aim for 50-200 nm to balance circulation, extravasation, and clearance.
• PEGylation and neutral or slightly negative charge can help avoid rapid uptake by the reticuloendothelial system (RES).

Drug loading strategy

• Encapsulation inside a polymer or liposome can protect sensitive drugs.
• Surface conjugation is useful for some biologics or controlled-release designs.

Release triggers and stimuli

• Heat from magnetic hyperthermia.
• Local pH or enzyme activity in the tumor microenvironment.
• External triggers integrated into module delivery systems.

Combination with molecular ligands

• Adding antibodies, peptides, or small molecules enables dual targeting.
• Magnetic fields localize carriers; ligands then refine targeting at the cell level.

A major engineering challenge remains: achieving strong field gradients at clinically relevant depths. In some cases, this motivates catheter-based local delivery plus magnetic retention, rather than fully non-invasive steering.

Safety, Regulatory Pathways, and Translational Challenges

Several iron-oxide-based nanoparticles have been used as MRI contrast agents in the clinic. This gives a useful safety and regulatory background. However, fully magnetically guided drug-delivery systems and hyperthermia platforms are still moving through preclinical and clinical pipelines.

Key safety and regulatory considerations include:

• Heat control in hyperthermia

Temperatures must stay within safe ranges for surrounding healthy tissue.

• Biodistribution and clearance

Long-term iron handling, organ accumulation, and potential off-target effects must be studied carefully.

• GMP manufacturing and characterization

Regulators expect detailed data on particle size, coating, purity, and magnetic properties, along with stability and batch-to-batch consistency.

• Scaling from animals to humans

Field strengths, geometry, and dosing strategies that work in small animals may not translate directly to human anatomy.

Magnetic Targeting Strategies at Creative Biolabs

At Creative Biolabs, we view magnetic targeting as part of a broader targeted-delivery toolbox, not as a stand-alone trick. Our teams can support projects in several key ways:

Custom magnetic nanoparticle formulation

• Iron-oxide cores with tuned size and magnetization.
• Polymeric, liposomal, or hybrid carriers that suit your drug and route of administration.

Integration with advanced targeting strategies

• Passive EPR-based accumulation.
• Ligand-based active targeting with antibodies, peptides, or small molecules.
• Magnetic guidance, retention, and hyperthermia.

Modular platform design

Using our module delivery systems, we can layer magnetic cores, responsive materials, and targeting ligands into flexible architectures that fit different indications, from oncology to neurology.

Imaging and theranostic integration

• Incorporation of MRI contrast, fluorescence, or nuclear labels.
• Support for image-guided delivery and longitudinal monitoring.

End-to-end project support

• Early feasibility and formulation screening.
• In vitro characterization and stability testing.
• Preclinical proof-of-concept in relevant models.

When you combine magnetic targeting strategies with robust design and manufacturing, you gain a powerful route toward smarter, safer, and more personalized drug delivery systems.

Related Services You May Be Interested in

FAQs

Conclusion: Turn Magnetic Targeting Strategies into Real Therapeutic Solutions

Magnetic targeting strategies are moving from theory and early experiments toward real, clinically relevant platforms. By combining magnetic nanoparticles, well-designed carriers, external fields, and smart ligands, you can build delivery systems that bring drugs closer to the right cells at the right time. However, success in this area demands:

• Thoughtful nanoparticle and carrier design.
• Careful engineering of magnetic fields and hyperthermia conditions.
• Strong GMP manufacturing and regulatory planning.

Creative Biolabsis ready to support you at every stage, from concept to preclinical validation, through the module delivery systems.

If you are planning a magnetic drug delivery, hyperthermia, or theranostic project, contact us today to discuss a custom magnetic targeting strategy tailored to your program.
