Ultrasound-Targeted Drug Delivery: Principles, Mechanisms, and Translational Opportunities

Ultrasound-targeted drug delivery is transforming how researchers and clinicians localize therapies with greater precision and fewer side effects. By pairing focused ultrasound energy with smart, stimulus-responsive carriers, this approach enables drugs to be released exactly where they are needed while minimizing exposure to healthy tissues. As interest in noninvasive and image-guided treatments continues to grow, ultrasound-triggered delivery is emerging as a key innovation for oncology, neurology, and regenerative medicine. In this article, Creative Biolabs explores the principles, technologies, and real-world applications that make ultrasound-targeted drug delivery a powerful tool for modern therapeutics.

What Is Ultrasound-Targeted Drug Delivery (UTDD)?

Ultrasound-targeted drug delivery, often shortened to UTDD, uses sound waves to place and activate drugs exactly where they are needed. Instead of sending a drug through the whole body and hoping enough reaches the target, UTDD adds a second level of control.

In many cases, the approach combines:

• Ultrasound imaging to see the target tissue in real time.
• Ultrasound energy to open barriers or trigger release from an ultrasound-responsive carrier (Figure 1).

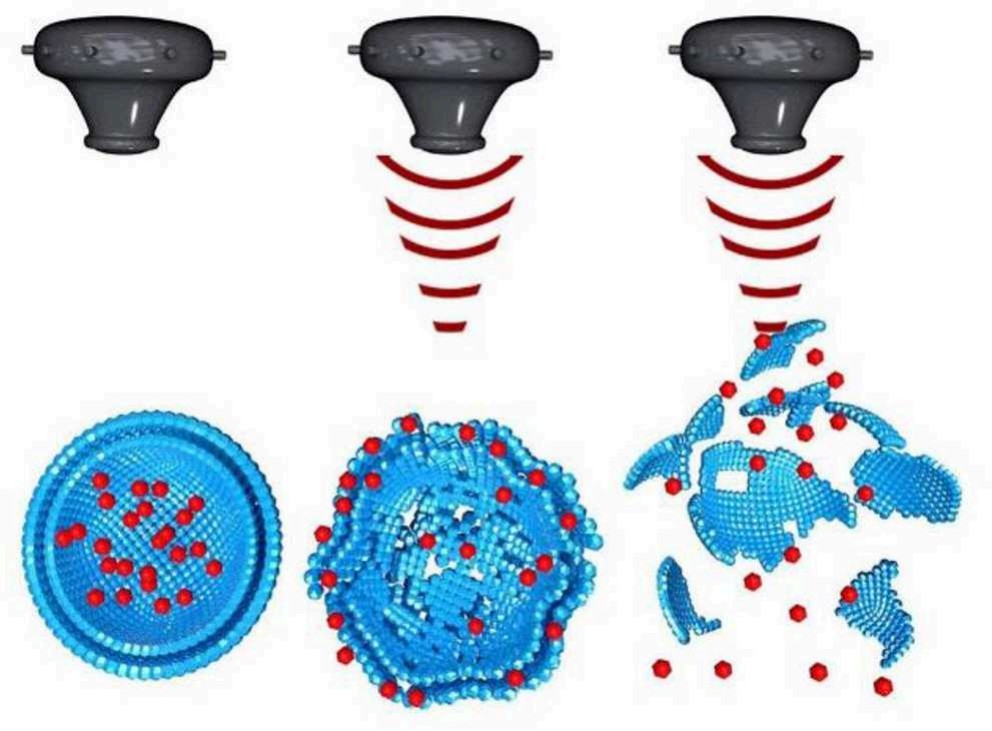

Fig.1 The mechanism of ultrasound-responsive nanoparticles.¹

This concept sits between ultrasound-guided injections and fully noninvasive therapy.

• In ultrasound-guided injections, ultrasound is mainly an imaging tool. It helps clinicians guide a needle into a joint, tendon, or organ.
• In ultrasound-targeted drug delivery, ultrasound becomes part of the therapy. It not only guides, but also changes tissues or carriers, so that drugs are released or absorbed better.

Because UTDD links imaging and therapy, it fits very well with minimally invasive, precision medicine workflows, especially in oncology, neurology, and regenerative medicine.

How Ultrasound Controls Drug Release

Ultrasound can do much more than show structures on a screen. When you adjust frequency, intensity, and pulse pattern, you can create focused physical effects inside the body. The three most relevant effects for UTDD are:

• Thermal effects
• Mechanical and cavitation effects
• Low-intensity pulsed effects for gentle barrier opening

Thermal Effects (HIFU-Triggered Release)

High-intensity focused ultrasound (HIFU) concentrates sound energy into a small volume. At that point, tissue temperature rises quickly. For drug delivery, this heating can:

• Melt temperature-sensitive liposomes and release cargo.
• Soften or break polymer networks, allowing drugs to escape.
• Combine with hyperthermia to stress tumor cells and make them more sensitive to drugs.

In many thermo-sensitive systems, liposomes are designed to stay stable at body temperature. They release rapidly only when local tissue reaches a narrow high-temperature window, which is controlled by HIFU parameters.

Mechanical/Cavitation Effects (Microbubble-Enhanced Delivery)

When ultrasound interacts with gas-filled microbubbles, the bubbles can:

• Oscillate (expand and contract)
• Or collapse (inertial cavitation) when the energy is high

These events create:

• Strong microstreaming of fluid
• Shear stress on vessel walls
• Temporary gaps between endothelial cells

For drug delivery, this means:

• Higher vascular permeability
• Better penetration of drugs or nanoparticles into the tissue
• Possibility to open the blood-brain barrier (BBB) in a controlled way

Microbubbles can also be loaded or coated with drugs, so that cavitation itself becomes a release trigger.

Low-Intensity Pulsed Ultrasound (LIPUS) for Reversible Barrier Modulation

Low-intensity pulsed ultrasound (LIPUS) works at lower energy levels. It is often used when tissues must be kept safe, and only a gentle push is needed.

In UTDD, LIPUS can:

• Loosen tight junctions without permanent damage
• Change cell membrane fluidity for a short time
• Support reversible BBB opening in combination with microbubbles

Because LIPUS produces more subtle effects, it is attractive for repeated treatments, especially in neurology and musculoskeletal indications.

Ultrasound-Responsive Carriers in Modern Drug Delivery

The real power of UTDD comes from smart carriers that respond to sound. Liposomes, polymers, hydrogels, and microbubbles can all be engineered to react to specific ultrasound settings (Table 1).

Ultrasound-Sensitive Liposomes

Ultrasound-sensitive liposomes can be designed in several ways:

• Thermo-sensitive liposomes that release drugs at mild hyperthermia.

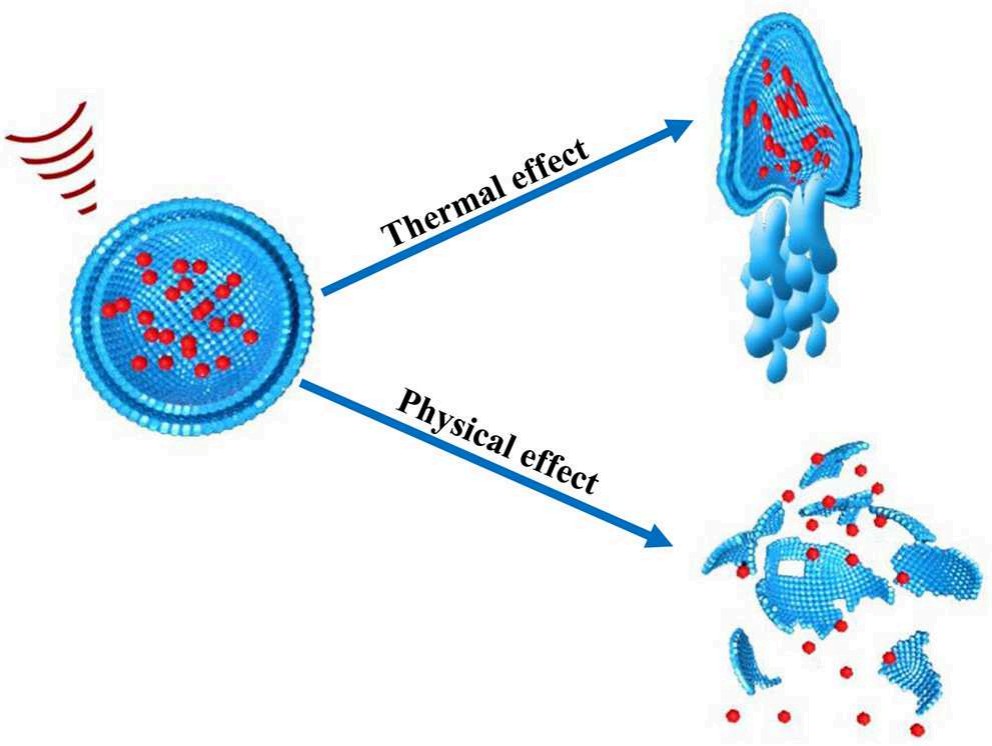

Fig.2 Thermo and non-thermo effects of ultrasound on nanoparticles.¹

• Gas-filled liposomes that behave like tiny bubbles and rupture under cavitation.
• Hybrid structures that combine imaging contrast with triggered release.

These carriers are ideal for:

• Locally boosting chemotherapy in a tumor
• Delivering biologics or small interfering RNA (siRNA) with higher precision
• Linking ultrasound imaging with real-time feedback on release zones

Ultrasound-Responsive Polymers & Hydrogels

Polymers and hydrogels can also be tuned to respond to ultrasound.

They may:

• Shrink, swell, or dissolve when heated.
• Change structure when exposed to cavitation-induced stress.
• Release small molecules, peptides, or proteins in a controlled pattern.

Market analyses suggest that drug delivery is the dominant application in the ultrasound-responsive polymer segment, accounting for more than half of the revenue in recent years. This tells us that industry sees UTDD as a key driver for future polymer development.

Microbubbles for Targeting & BBB Opening

Microbubbles are well known as ultrasound contrast agents. In UTDD, they have an extra function:

• They act as local amplifiers of ultrasound energy.
• Their oscillation can open biological barriers, like the BBB, for a short period.
• They can be co-injected with drugs or even functionalized to carry payloads directly.

Microbubble-based strategies are now central in many focused ultrasound studies in brain tumors and other hard-to-reach organs.

Table 1 Example comparison.

Applications of Ultrasound

Focused Ultrasound for Blood–Brain Barrier Opening

The blood-brain barrier protects the brain from harmful substances but also blocks many drugs. This is a major problem in glioblastoma and other central nervous system diseases. Focused ultrasound plus microbubbles offers a solution (Figure 1):

• Microbubbles are injected into the bloodstream.
• Focused ultrasound is applied to a specific brain region.
• Microbubbles cavitate in the microvasculature.
• Tight junctions between endothelial cells open reversibly.

This allows:

• Higher brain concentrations of chemotherapeutics or biologics.
• More effective delivery of antibodies, gene vectors, or nanoparticles.

Early clinical trials show promising safety profiles when parameters are carefully controlled. However, long-term outcome data and standardized protocols are still under active investigation.

Oncology Applications: Tumor Targeting & Oncolytic Viruses

Cancer is one of the most active areas for ultrasound-targeted drug delivery.

Enhanced Intratumoral Penetration for Solid Tumors

Solid tumors often have:

• Leaky but irregular vessels
• High interstitial pressure
• Dense extracellular matrix

These features make drug penetration difficult. Focused ultrasound can:

• Increase perfusion in the tumor.
• Temporarily reduce interstitial pressure.
• Improve extravasation of nanoparticles and liposomes.

As a result, more drug stays inside the tumor, and less circulates systemically, which may reduce toxicity.

Ultrasound-Aided Delivery of Oncolytic Viruses & Gene Therapies

Oncolytic viruses and gene therapies face barriers such as:

• Limited vascular access
• Poor penetration into dense tumor tissue
• Immune clearance

Ultrasound and microbubble strategies can:

• Improve vascular extravasation of viral particles.
• Enhance transduction efficiency in the target area.
• Support combination regimens with chemotherapy or immunotherapy.

Creative Biolabs already explores such concepts in its oncolytic virus delivery solutions, which can be extended into ultrasound-enhanced platforms for translational oncology projects.

Beyond Oncology: Expanding Clinical Use Cases

UTDD is not limited to the applications in the treatment of cancer and central nervous system diseases. It naturally extends into areas where ultrasound-guided procedures are already routine.

Musculoskeletal & Orthopedic Drug Localization

Ultrasound-guided injections are common for:

• Shoulder, hip, and knee joints
• Tendons and bursae
• Spine and peripheral nerves

Coupling these procedures with drug-loaded depots or ultrasound-responsive carriers could:

• Increase retention at inflamed or damaged sites.
• Reduce the number of injections needed.
• Improve comfort and functional outcomes for patients.

Liver, Thyroid & Prostate Procedure Synergy

Ultrasound is heavily used for:

• Liver biopsies and ablations
• Thyroid nodule evaluation and fine-needle aspiration
• Prostate biopsies and focal therapies

These procedures form a natural bridge for UTDD, because:

• The workflow already relies on ultrasound.
• Access paths are established.
• Adding an ultrasound-responsive formulation can be done with minimal extra training.

Regenerative Medicine & Vascular Delivery

In regenerative medicine and cardiovascular applications, UTDD can:

• Guide and activate growth factor delivery at injury sites.
• Support cell therapy engraftment by improving local microenvironments.
• Enhance vascular repair with controlled release in specific vessel segments.

Technical & Clinical Challenges to Solve Before Widespread Adoption

Despite the promise, UTDD still faces important challenges that researchers and industry must address.

Safety and Parameter Optimization

Choosing safe and effective ultrasound settings is critical. Incorrect parameters may cause:

• Tissue overheating
• Vascular damage
• Unwanted cavitation in off-target regions

Therefore, many groups are developing real-time monitoring tools to track cavitation and temperature during treatment.

Carrier Stability & Microbubble Dosing

Carriers must remain:

• Stable in circulation
• Sensitive only at the target site

Microbubble and carrier dosing needs careful tuning:

• Too little may give weak effects.
• Too much may produce toxicity or uncontrolled cavitation.

Tissue Acoustic Variability

Different tissues have different acoustic properties. Bone, air spaces, and scar tissue can:

• Reflect or absorb ultrasound
• Distort the focal spot
• Reduce the reproducibility of UTDD

Advanced imaging and modeling are used to plan beams and adapt therapy to each patient.

PK/PD Standardization Needs

To move UTDD into routine care, teams must link:

• Ultrasound dose
• Drug distribution
• Clinical response

Standardized pharmacokinetic and pharmacodynamic (PK/PD) frameworks will help compare protocols, optimize regimens, and satisfy regulators.

How Creative Biolabs Accelerates Ultrasound-Targeted Delivery R&D

Creative Biolabs supports UTDD projects by combining carrier design, stimuli-responsive platforms, and translational know-how.

Our capabilities include:

• Ultrasound-responsive liposome development for small molecules, peptides, proteins, and nucleic acids.
• Custom polymer and hydrogel systems tailored for thermal or mechanical ultrasound triggers.
• Integration of oncolytic viruses and gene vectors into ultrasound-assisted delivery strategies.
• In vitro and in vivo release profiling under realistic ultrasound conditions.

A typical collaboration can follow this workflow:

1. Consultation and indication mapping
2. Selection of carrier architecture (liposome, polymer, microbubble-supported)
3. Definition of ultrasound trigger window (frequency, intensity, duty cycle)
4. Formulation development and stability testing
5. In vitro release and barrier-opening studies
6. In vivo proof-of-concept and PK/PD evaluation

Related Services You May Be Interested in

FAQs

Conclusion: The Future of Ultrasound-Triggered Precision Delivery

Ultrasound-targeted drug delivery brings together imaging, physics, and formulation science to give drugs a new level of precision. By combining focused ultrasound with smart carriers, researchers can increase local exposure, reduce toxicity, and explore indications that were once out of reach due to biological barriers. As markets for targeted drug delivery, ultrasound systems, and responsive polymers continue to expand, the need for robust, customizable platforms will only grow.

This is where Creative Biolabs can become a strategic partner—helping you design, optimize, and validate ultrasound-responsive formulations that fit real-world clinical pathways. If you are planning a UTDD project in oncology, neurology, musculoskeletal disease, or regenerative medicine, we invite you to reach out to our team. Together, we can turn ultrasound from a diagnostic tool into a powerful driver of your next-generation targeted delivery strategy.

References

1. Tharkar, P., Varanasi, R., Wong, W. S. F., Jin, C. T. & Chrzanowski, W. “Nano-Enhanced Drug Delivery and Therapeutic Ultrasound for Cancer Treatment and Beyond.” Front. Bioeng. Biotechnol. 7, 324 (2019). https://www.frontiersin.org/article/10.3389/fbioe.2019.00324/full.
