Respiratory Syncytial Virus F Protein in Next-Generation Vaccine Design

Respiratory Syncytial Virus (RSV) remains a major global health burden, particularly impacting infants, the elderly, and the immunocompromised population. The search for a highly effective vaccine has long been a priority. Central to this effort is the RSV Fusion (F) protein, the sole known potent immunogen on the viral surface, whose precise structural conformation is now recognized as the determining factor for effective neutralizing antibody induction2. Understanding the conformational switch of the F protein from its functional state to its post-fusion state is key to designing next-generation RSV vaccines.

An Overview of the RSV Virus and its Targets

RSV belongs to the Paramyxoviridae family and is classified as a single-stranded negative-sense RNA virus. Its genome spans approximately 15 kilobases (kb) and contains 10 genes, which encode a range of proteins essential for viral replication, assembly, and infection. These genes follow a specific order—NS1, NS2, N, P, M, SH, G, F, M2, and L—each contributing to different stages of the viral life cycle, from evading the host immune system to forming new viral particles.

Among the proteins encoded by RSV, two stand out as primary targets for vaccine research: the F protein (Fusion protein) and the G protein (Glycoprotein). The G protein facilitates the initial attachment of the virus to host cells by binding to specific receptors on the cell surface. In contrast, the F protein plays a pivotal role in mediating the fusion of the viral envelope with the host cell membrane, a critical step that allows the virus to release its genetic material into the cell and initiate infection.

Notably, the F protein exhibits high conservation across the two major RSV subtypes—subtype A and subtype B. This conservation is a major advantage for vaccine development, as it means a vaccine targeting the F protein has the potential to provide cross-protection against both subtypes, addressing a key challenge in combating RSV diversity.

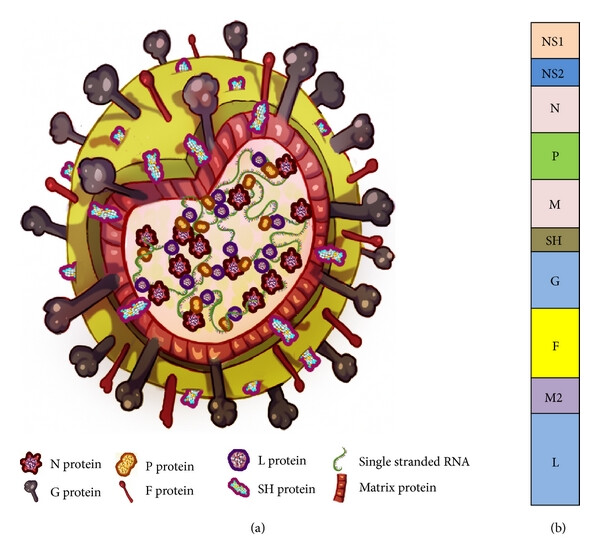

Fig.1 Structure and Genome Organization of Respiratory Syncytial Virus.^1,2

The RSV F Protein: Prefusion vs. Postfusion Conformations

The F protein, initially synthesized as a 574 amino acid precursor, is cleaved twice by furin to yield the F1 and F2 subunits, which assemble into a trimeric "spire" structure on the viral surface. This protein is an elegant molecular machine that undergoes a dramatic, irreversible conformational change—the transition from the high-energy Prefusion (PreF) state to the stable, low-energy Postfusion (PostF) state.

The High-Value Prefusion Conformation

The Prefusion conformation is only transiently displayed on the virus before it encounters the host cell. This state is immunologically critical because it exposes six distinct antigenic sites (Ø, I, II, III, IV, V). Crucially, two of these, Site Ø (Site 0) and Site V, are unique to the Prefusion state High-efficacy neutralizing antibodies (such as D25 and AM22 for Site Ø, and 5C4 for Site V) can only recognize and efficiently neutralize the virus when the F protein is in this specific PreF structure. The potency of these Prefusion-specific antibodies is extraordinary, demonstrating a neutralizing efficacy that is often 10 to 100 times greater than antibodies targeting shared sites.

The Less Potent Postfusion Conformation

Upon successful fusion with the host cell membrane, the F protein collapses into a highly stable, rod-like Postfusion conformation. This structural transformation results in a significant loss of antigenicity. In this stable state, the F protein retains only four shared antigenic sites (I, II, III, IV). Antibodies targeting shared sites, such as Site II (targeted by Palivizumab), offer only moderate neutralizing potency.

The Molecular Mechanism of Conversion

The switch from PreF to PostF is an irreversible transition from a high-energy to a low-energy state. This process is driven by the exposure of the fusion peptide and a substantial β-helix rearrangement. Recent structural biology studies have also begun to detail the dynamic "breathing" motion of the Prefusion structure, which can influence how efficiently antibodies bind and neutralize the virus.

The Impact on Vaccine Antigen Design

The fundamental difference in antigen value between the Prefusion and Postfusion conformations dictates the success of an RSV vaccine.

Limitations of Traditional Vaccine Approaches

Traditional vaccine candidates, such as the formalin-inactivated RSV (FIRSV) vaccine, inadvertently presented the F protein primarily in the stable, less immunogenic Postfusion conformation. The antibodies elicited by these candidates primarily targeted the shared sites (I, II, III, IV), resulting in limited protective efficacy. Furthermore, this approach was unfortunately linked to the concerning complication of Vaccine-Enhanced Disease (VED), where immunization paradoxically exacerbated disease upon subsequent natural infection.

The Prefusion Stabilization Strategy

The key innovation in modern RSV vaccine design is the deliberate stabilization of the F protein in its potent Prefusion conformation. Researchers have employed various strategies to 'lock' the protein in the PreF state, including:

• Rational Design of Disulfide Bonds: Introducing stabilizing mutations, such as pairs of cysteine residues, to form engineered disulfide bonds that hold the structure in its trimeric PreF state.
• Structure-Guided Mutagenesis: Implementing targeted amino acid substitutions or deleting key processing sites, like the furin cleavage site, to enhance the thermal and structural stability of the Prefusion trimer.
• Trimerization Tags: Incorporating tags that ensure the stable assembly of the F protein into the functional trimeric form.

These stabilization efforts have successfully produced Prefusion antigens capable of inducing neutralizing antibody titers 10 to 100 times higher than those induced by Postfusion antigens, critically, without evidence of VED in animal models.

Expression and Purification of Recombinant Prefusion Antigens

The industrial-scale production of a stable Prefusion antigen presents significant technical challenges.

Expression Systems

Recombinant Prefusion proteins are typically expressed in mammalian cell systems, such as transiently transfected HEK293E cells or stable CHO cell lines, as well as in insect cell systems using Baculovirus. Key production bottlenecks include issues with nuclear export, premature polyadenylation, and the overall stability of the mRNA transcript.

Purification for Conformational Integrity

Maintaining the structural integrity of the delicate Prefusion trimer is paramount during purification. Standard protocols often involve Histag affinity chromatography followed by a critical step of scale-up trimer separation, typically using Size-Exclusion Chromatography (SEC), to ensure the purified product consists only of the correctly folded, intact trimeric PreF structure.

Future Directions and Challenges in RSV Vaccine Development

While Prefusion antigens represent a core success in structure-driven vaccinology, several challenges and future avenues remain:

• Conformation Maintenance: A significant technical hurdle is maintaining the stability of the high-energy Prefusion conformation throughout large-scale manufacturing, cold-chain distribution, and in the final formulation.
• Broad-Spectrum Coverage: Future designs must balance the presentation of subtype-specific and conserved antigenic sites to ensure robust cross-protection against both RSV A and B strains.
• New Delivery Platforms: Promising new platforms, including mRNA vaccines, Virus-Like Particles (VLPs), and Bacterial-Like Particles (BLPs), have demonstrated success in presenting the Prefusion antigen and eliciting a strong immune response.
• Structure-Driven Iteration: Ongoing research, leveraging advanced techniques like high-resolution Cryo-EM structure determination, continues to precisely map the neutralizing antibody epitope repertoire. This deep structure-function correlation will drive the next wave of 'structure-driven' vaccine improvements.

Conclusion

The structural biology revolution, specifically the elucidation and stabilization of the RSV F protein's Prefusion conformation, has fundamentally reshaped the field of RSV vaccinology. By focusing on the high-value Prefusion structure, researchers have moved beyond the limitations of traditional, Postfusion-focused approaches. Mastery of the molecular details of the conformational switch, optimization of expression and stabilization strategies, and rigorous immunological assessment are the critical factors that will drive the successful development of highly potent, safe, and broadly effective next-generation RSV vaccines.
