Overview of Dual-affinity Aetargeting

Background of Dual-affinity Retargeting

Bispecific antibodies (BsAbs) are artificial antibodies that can simultaneously bind to two different antigens or two different epitopes of one antigen. BsAbs do not exist under natural conditions, but are prepared by cell fusion or recombinant DNA technology. Because of their specificity and dual functionality, they have become a hot topic in antibody engineering and have broad application prospects in tumor immunotherapy and autoimmune diseases.Dual-affinity retargeting is a novel bispecific antibody platform technology developed by MacroGenics. dual-affinity retargeting is a heterodimeric antibody composed of two peptide chains, each containing an scFv fragment that recognizes two different antigens. Dual-affinity retargeting enhances stability and activity through inter-chain interactions and disulfide bonds. dual-affinity retargeting has the advantages of high efficiency, high affinity, low immunogenicity and so on, and shows good therapeutic potential in tumor, infection, autoimmune and other fields.

Structure Features of Dual-affinity retargeting

Dual-affinity retargeting is a heterodimeric antibody composed of two peptide chains, each containing an scFv (single-chain variable fragment) segment that recognizes two different antigens. ScFv is a single-chain antibody fragment composed of V_H (heavy chain variable region) and V_L (light chain variable region) connected by a linker peptide, which has a small molecular weight and high penetration. Dual-affinity retargeting enhances stability and activity through inter-chain interactions and disulfide bonds, and can achieve efficient cell bridging without an Fc region.

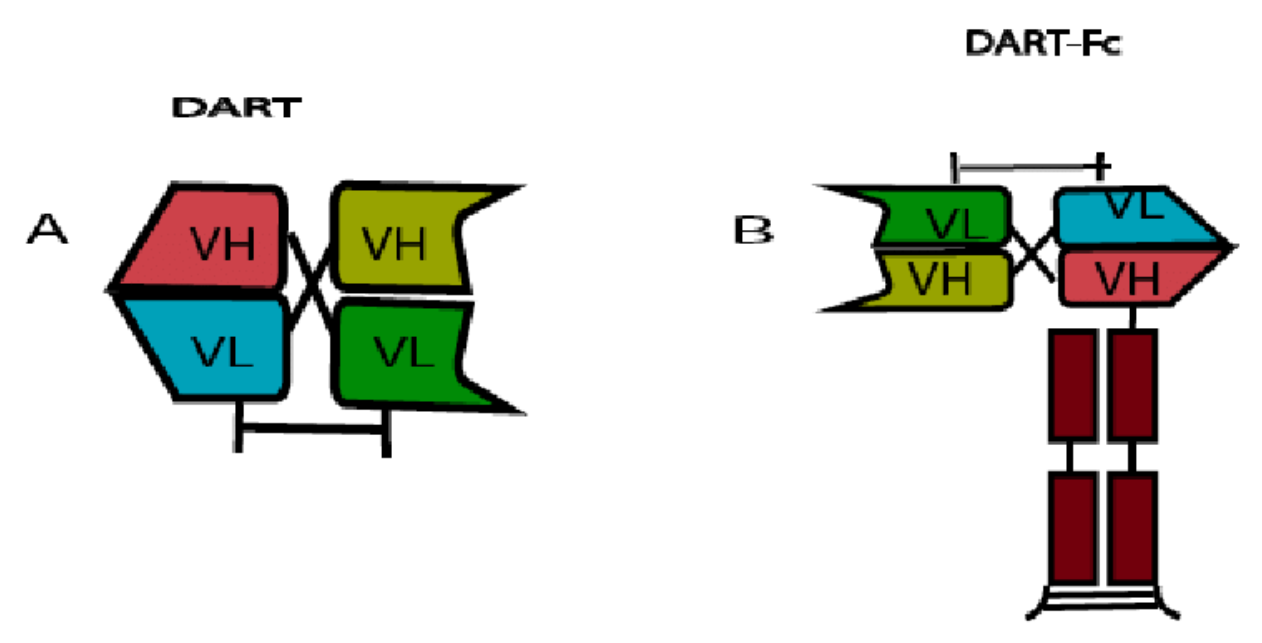

Fig.1 Schematic diagrams of dual-affinity retargeting molecule (dual-affinity retargeting). (Acheampong DO, 2019)

Generation Methods of Dual-affinity retargeting

The gene engineering preparation method of dual-affinity retargeting mainly includes the following steps: First, select the appropriate antibody variable region sequence according to the desired target, and then use linker to connect a VH and VL sequence of one antibody variable region with a VL and VH sequence of another antibody variable region to form scFv. Second, clone the two scFv fragments into expression vectors separately, and add cysteine coding sequences at the C-terminus. Finally, transfect the expression vectors into mammalian cells, use the intracellular environment to promote the formation of bispecific fragments, and purify the dual-affinity retargeting product by protein A/G affinity chromatography and other methods.

Clinic Status of Dual-affinity retargeting

There is only one so far, namely Emicizumab, which is a dual-affinity retargeting drug for patients with hemophilia A. It can bind to factor IX and factor X simultaneously, mimicking the function of the missing factor VIII and promoting blood coagulation. Emicizumab was approved by the FDA in November 2017 for the prevention or reduction of bleeding episodes in patients with hemophilia A. Emicizumab has also been approved by the European Union, Japan, Canada and other countries or regions for patients with moderate to severe hemophilia A, including those with or without antibody inhibitors.

There are several, mainly for tumor immunotherapy. They can bind to the target on the surface of tumor cells and the activation receptor on the surface of effector cells simultaneously, inducing tumor cell lysis.

References

1. Acheampong DO. Bispecific Antibody (bsAb) Construct Formats and their Application in Cancer Therapy. Protein Pept Lett. 2019;26(7):479-493.
2. Bates A, et al. David vs. Goliath: The Structure, Function, and Clinical Prospects of Antibody Fragments. Antibodies (Basel). 2019 Apr 9;8(2):28.
3. Goebeler ME, et al. Emerging new therapeutic antibody derivatives for cancer treatment. Signal Transduct Target Ther. 2022 Feb 7;7(1):39.
4. Ye JT, et al. Recent advances in the development of bispecific antibodies. Chin J Biotechnol. 2020 Jan;36(1):33-43.
5. Patel SP, et al. A Phase II Basket Trial of Dual Anti-CTLA-4 and Anti-PD-1 Blockade in Rare Tumors (dual-affinity retargeting SWOG 1609) in Patients with Nonpancreatic Neuroendocrine Tumors. Clin Cancer Res. 2020 May 15;26(10):2290-2296.
6. Goebeler ME, et al. Development and clinical impact of blinatumomab in acute lymphoblastic leukemia. Blood Adv. 2018 Dec 11;2(23):3447-3456.
7. Chen X, et al. Development of a novel anti-CD19 chimeric antigen receptor: a paradigm for an affordable CAR T cell production at academic institutions. Mol Ther Methods Clin Dev. 2018 Feb 16;9:250-262.
8. Klinger M, et al. Immunopharmacologic response of patients with B-lineage acute lymphoblastic leukemia to continuous infusion of T cell-engaging CD19/CD3-bispecific bispecific T cell engager antibody blinatumomab. Blood. 2012 Jun 14;119(24):6226-6233.
9. Goebeler ME, et al. T cell-engaging therapies - bispecific T cell engagers and beyond: a medicinal chemist's perspective on the discovery and development of novel anti-cancer agents targeting the adaptive immune system. J Med Chem. 2019 Oct 24;62(20):8955-8974.
