TRPC4 Membrane Protein Introduction

Introduction of TRPC4

Short transient receptor potential channel 4 (TRPC4), also known as Trp-related protein 4, is encoded by the TRPC4 gene. TRPC4 belongs to the canonical subfamily of transient receptor potential cation channels. Mutation in this gene may be involved in generalized epilepsy with photosensitivity. TRPC4 contains 6 transmembrane regions, a pore region, a caveolin-binding domain and a PDZ domain binding region at the C terminus. TRPC4 is widely expressed in heart, pancreas, placenta, brain, and kidney, especially in the cortico-limbic regions of the brain with high abundance. In addition, TRPC4 is also present in midbrain dopaminergic neurons in the ventral tegmental area and the substantia nigra.

Basic Information of TRPC4
Protein Name Short transient receptor potential channel 4
Gene Name TRPC4
Aliases Trp-related protein 4
Organism Homo sapiens (Human)
UniProt ID Q9UBN4
Transmembrane Times 6
Length (aa) 977

Function of TRPC4 Membrane Protein

TRPC4 can form a nonspecific calcium-permeable cation channel that may play a role in many biological processes including vasodilation, endothelial permeability, gamma-aminobutyric acid secretion, oligodendrocyte differentiation, regulation of cytosolic calcium ion concentration, cell proliferation and neurotransmitter release. It is possibly controlled by a phosphatidylinositol second messenger system activated by Gαi-coupled receptors, Gαq-coupled receptors and tyrosine kinases. For another, it may also be activated by depletion of intracellular calcium. As an ion channel, it has an enhanced permeability to barium over calcium, and its translocation to the plasma membrane is associated with the interaction with spectrin. There is no experiment structure available for human TRPC4, but we can take a zebrafish TRPC4 structure (PDB: 6G1K) from the reference (Fig.1).

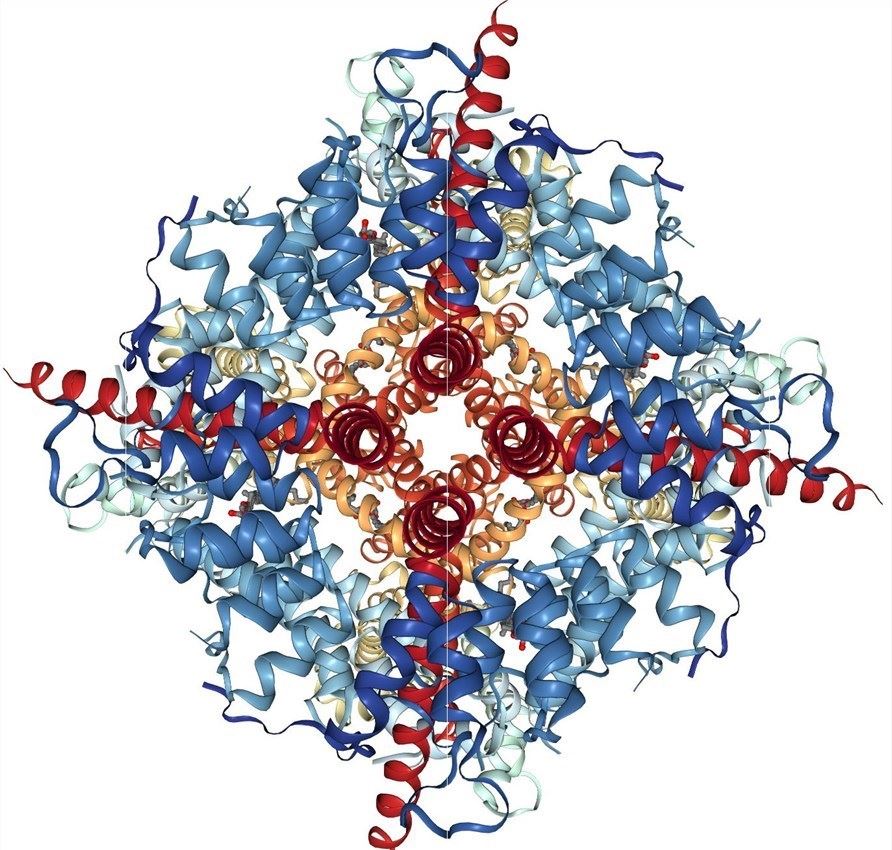

Electron cryo-microscopy structure of the canonical TRPC4 ion channel. Fig.1 Electron cryo-microscopy structure of the canonical TRPC4 ion channel. (Vinayagam, 2018)

Application of TRPC4 Membrane Protein in Literature

  1. Cheung S.Y., et al. TRPC4/TRPC5 channels mediate adverse reaction to the cancer cell cytotoxic agent (-)-Englerin A. Oncotarget. 2018, 9(51):29634-29643. PubMed ID: 30038709

    This article confirms the existence of harmful reaction to Englerin A in mice, suggesting that it depends on a combination of TRPC4 and TRPC5 which therefore overlaps partially with TRPC4-dependent cancer cell cytotoxicity.

  2. Alom F., et al. Possible antagonistic effects of the TRPC4 channel blocker ML204 on M2 and M3 muscarinic receptors in mouse ileal and detrusor smooth muscles and atrial myocardium. J Vet Med Sci. 2018, 80(9):1407-1415. PubMed ID: 29973432

    This article suggests that ML204, a potent TRPC4 channel blocker, might exhibit antagonistic actions on M₂ and M₃ muscarinic receptors. Additionally, the inhibitory effects of ML204 against electrical field stimulation-induced cholinergic contractions might be ascribed to this receptor antagonism rather than the suppression of TRPC4 channel activity.

  3. Griffin C.S., et al. Muscarinic receptor-induced contractions of the detrusor are impaired in TRPC4 deficient mice. Sci Rep. 2018, 8(1):9264. PubMed ID: 29915209

    This article demonstrates that TRPC4 channels are associated with cholinergic-mediated and spontaneous contractions of the murine detrusor. Additionally, expression of TRPC5 is up-regulated in TRPC4-/- detrusor strips, suggesting TRPC5 may to some extent compensate for the lack of TRPC4 channels.

  4. Vinayagam D., et al. Electron cryo-microscopy structure of the canonical TRPC4 ion channel. Elife. 2018, 7. pii: e36615. PubMed ID: 29717981

    This article reports the electron cryo-microscopy structure of zebrafish TRPC4 in its apo, closed state at an overall resolution of 3.6 Å.

  5. Zhang B., et al. TRPC6 and TRPC4 Heteromultimerization Mediates Store Depletion-Activated NCX1 Reversal in Proliferative Vascular Smooth Muscle Cells. Channels (Austin). 2018, 12(1):119-125. PubMed ID: 29560783

    This article demonstrates that TRPC4-TRPC6 hetero-multimerization linked depletion of Ca2+ store and STIM1 accumulation with Na+/Ca2+ exchange reversal in proliferative vascular smooth muscle cells.

TRPC4 Preparation Options

In order to provide high-quality membrane protein preparation service, we have developed a versatile Magic™ membrane protein production platform. Our experienced scientists will do their best to help you find a perfect match in your required formats. Aided by our versatile Magic™ anti-membrane protein antibody discovery platform, we also provide customized anti-TRPC4 antibody development services.

Creative Biolabs can provide first-class membrane protein production service using a variety of strategies. Based on our leading-edge platform, we have successfully produced, purified, stabilized and characterized many challenging membrane protein targets for global customers. If you are interested in the service we can provide, please feel free to contact us for more information.


  1. Vinayagam D, et al. (2018). Electron cryo-microscopy structure of the canonical TRPC4 ion channel. Elife, pii: e36615.
