Mitochondrial Toxicity Assay
Mitochondrial toxicity remains a silent, yet powerful, determinant of drug failure. The days of relying solely on general cytotoxicity screens are over. Modern drug discovery mandates a proactive, mechanistic approach to mitochondrial safety. At Creative Biolabs, we leverage cutting-edge bioenergetic and imaging technologies to provide the deepest understanding of your compound's metabolic profile. Partner with us to ensure that your innovative research translates into safe and successful medicines, mitigating late-stage risks and accelerating the path to clinical translation.
Mitochondrial Introduction
Mitochondria, often referred to as the "powerhouses of the cell," are essential organelles for cell survival, energy production, and signaling pathways. Besides their classic function of generating adenosine triphosphate (ATP) through oxidative phosphorylation (OXPHOS), these dynamic structures also regulate apoptosis, modulate calcium homeostasis, and participate in various anabolic and catabolistic processes. Therefore, mitochondrial dysfunction is not merely a symptom of disease, but often a core pathogenic factor in many pathological states, including neurodegenerative diseases, cardiovascular diseases, metabolic disorders, and cancer.

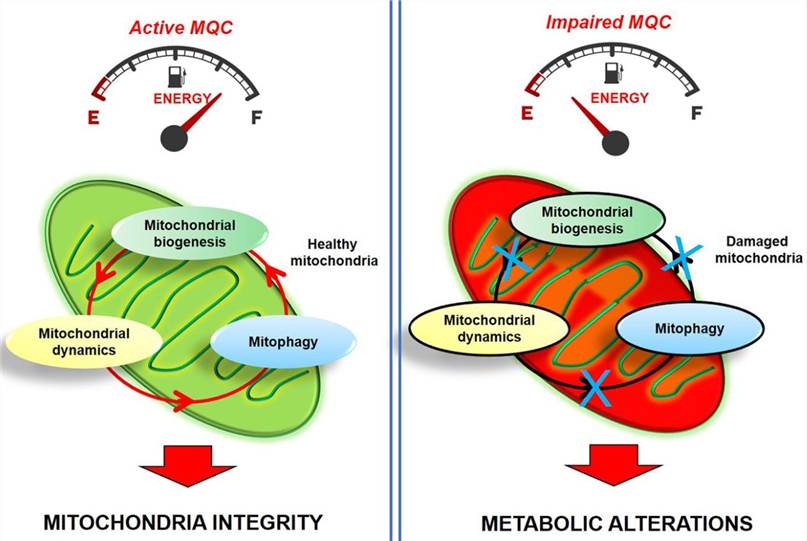

Figure.1 Healthy and damaged mitochondria.1
Key Features of Mitochondrial
Inner Membrane Structural Integrity
Healthy mitochondria contain undamaged inner and outer membranes. Many folded structures known as mitochondrial cristae form on the interior of the inner membrane, where cellular respiration and energy production occur.
Respiratory Chain Function is Intact
Healthy mitochondria have a functioning respiratory chain, which includes the electron transport chain and the oxidative phosphorylation process. This permits mitochondria to convert dietary energy into ATP efficiently.
Oxidative Phosphorylation Activity
The primary energy production pathway in mitochondria is oxidative phosphorylation, performed by enzymes such as ATP synthase. Healthy mitochondria have high oxidative phosphorylation activity, allowing cells to receive sufficient energy.
Adaptability to Anaerobic Conditions
When there is insufficient oxygen supply, healthy mitochondria can create ATP via processes such as anaerobic glycolysis to meet the cell's energy requirements.
Maintaining Membrane Potential
Healthy mitochondria can maintain an appropriate membrane potential, which is required for inner membrane permeability, cellular ion balance, and other vital cellular activities.
Self-Repair Mechanism
Healthy mitochondria can repair themselves and eliminate defective components. This helps to maintain overall mitochondrial function.
No Excessive Generation of Oxygen-Free Radicals
Under normal physiological settings, healthy mitochondria can efficiently restrict the formation of oxygen free radicals and thereby reduce cellular oxidative stress.
Mitochondrial Toxicity Fluoroquinolones
Fluoroquinolone antibiotics are a class of drugs well-established to be associated with mitochondrial toxicity, which is likely the primary cause of their known adverse reactions. These antibacterial drugs primarily exert their effects by inhibiting bacterial DNA gyrases and topoisomerase IV, but their mechanism of action also involves dose-dependent mitochondrial effects, thereby impacting eukaryotic cells. Studies have shown that some fluoroquinolone drugs can interfere with mitochondrial DNA replication by inhibiting topoisomerase II (an enzyme structurally similar to bacterial DNA gyrase and essential for maintaining mitochondrial DNA). This interference leads to reduced expression of key electron transport chain components encoded by mitochondrial DNA, ultimately impairing cellular energy production.
Mitochondrial Function and Toxicity: Role of the B Vitamin Family on Mitochondrial Energy Metabolism
To fully understand mitochondrial toxicity, it is essential to first understand the cofactors necessary for maintaining normal function. B vitamins, in particular, play a crucial role in mitochondrial energy metabolism and are necessary precursors to many key enzyme cofactors. Their direct involvement makes them important indicators for assessing metabolic health and resistance to toxic damage.
| B Vitamin | Active Cofactor Form | ETC/Metabolic Role |
|---|---|---|
| B1 (Thiamine) | Thiamine Pyrophosphate (TPP) | Cofactor for pyruvate dehydrogenase complex (PDC) and alpha-ketoglutarate dehydrogenase in the TCA cycle. |
| B2 (Riboflavin) | Flavin Adenine Dinucleotide and Flavin Mononucleotide | Crucial prosthetic groups for Complex I and Complex II (Succinate Dehydrogenase) of the ETC. |
| B3 (Niacin) | Nicotinamide Adenine Dinucleotide and Nicotinamide Adenine Dinucleotide Phosphate | Essential electron carriers for numerous dehydrogenases in glycolysis, the TCA cycle, and Complex I. |
| B5 (Pantothenic Acid) | Coenzyme A | Central to the TCA cycle, required for the formation of Acetyl-CoA from pyruvate. |
| B7 (Biotin) | Biotin-dependent carboxylases | Essential for gluconeogenesis and fatty acid metabolism, processes linked to mitochondrial substrate supply. |
Mitochondrial Toxicity Assay
The assessment of mitochondrial integrity has evolved from simple cell viability screening to sophisticated high-resolution bioenergetics analysis. A successful mitochondrial toxicity detection platform must possess the following capabilities:
01. High-throughput screening (HTS): The ability to efficiently test thousands of compounds at early stages.
02. Mechanistic detail: Providing in-depth understanding of the mechanisms underlying toxicity (e.g., which electron transport chain complexes are inhibited, or whether uncoupling is the primary effect).
03. Physiological relevance: Utilizing appropriate cell models (e.g., primary human hepatocytes, cardiomyocytes, or induced pluripotent stem cell (iPSC) derived cell lines).
04. Basal respiration: Total oxygen consumption under normal conditions.
05. ATP-coupled respiration: The proportion of oxygen consumption coupled with ATP production.
06. Proton leakage: Oxygen consumption independent of ATP synthesis, indicating good mitochondrial inner membrane integrity.
07. Maximum respiration/reserve capacity: The maximum oxygen consumption rate achievable by the cell, representing the cell's ability to cope with increased energy demand or toxic stress.
Applications of Mitochondrial Toxicity Assay
Pharmaceutical Safety Screening
Drug safety screening is the most mature application area of mitochondrial toxicity assessment, spanning the entire drug development process. Incorporating mitochondrial parameters early in compound screening helps identify toxicity risks before significant resources are invested in lead compound optimization, thereby guiding structural modifications to mitigate adverse reactions and maintain therapeutic activity.
Chemical Risk Assessment
Chemical risk assessment is another expanding application area, especially in the context of increasing emphasis on advancing novel non-animal testing methodologies (NAMs). Mitochondrial toxicity analysis can provide crucial mechanistic data within the Next Generation Risk Assessment (NGRA) framework, supporting more human-related safety decisions without the need for animal data.
Disease Mechanism Research
Mitochondrial dysfunction can lead to a variety of pathological conditions, including neurodegenerative diseases, metabolic diseases, and hepatotoxicity, thus requiring sensitive detection methods in both research and clinical settings. Fluorescent probes specifically designed for mitochondrial analytes have demonstrated their ability to visualize active substances in live cells and animal disease models, enabling the study of pathological processes at the organelle level.

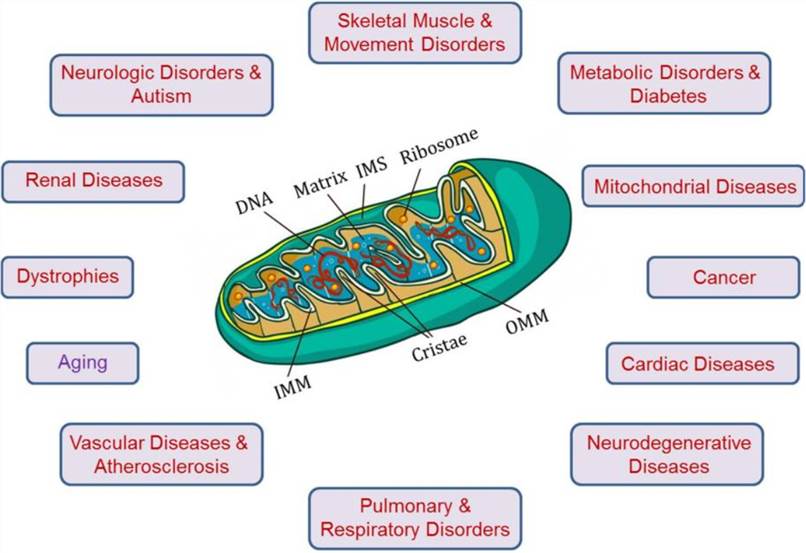

Figure 2 Mitochondria are involved in the pathogenesis of human diseases, and aging.2
Core Services at Creative Biolabs
Creative Biolabs is your expert partner in preclinical mitochondrial safety. We offer a tiered approach to fit your project needs, from high-throughput screening to deep mechanistic exploration.
Mitochondrial Extraction Analysis Service
High-quality mitochondria are the primary condition for research on apoptosis, signal transmission, metabolism, and proteomics. We can isolate intact and purified mitochondria from animal cells or tissues relying on differential centrifugation, the two-step centrifugation of whole cell extracts, first at low speed to remove intact cells, cell and tissue debris, and nuclei, and then at high speed to concentrate mitochondria and separate them from other organelles.
OCR & ECAR Analysis Service
We use the Seahorse Energy Metabolism Analyzer to continually measure oxygen concentration and proton flux in the cell supernatant. These observations are translated into OCR and ECAR values, allowing direct assessment of mitochondrial respiration and glycolysis.
Membrane Potential Analysis Service
We can use fluorescent probes like JC-1 to detect membrane potential. In healthy cells, the mitochondrial membrane potential level is high. After entering the cells, JC-1 is easily enriched in the mitochondria and becomes multimers, showing red fluorescence. In apoptotic or diseased cells, the mitochondrial membrane potential decreases, and JC-1 appears in monomer form and emits green fluorescence. Changes in the fluorescence signal of the JC-1 probe were used to detect changes in mitochondrial membrane potential in apoptotic cells. Fluorescence signals can be used for flow cytometry result analysis, fluorescence microscopy observation, and 96-well fluorescence microplate reading.
Superoxide Analysis Service
We can use fluorescent probes that specifically target mitochondria to selectively detect superoxide within mitochondria. The probes can penetrate living cell membranes and selectively enter mitochondria. Once inside the mitochondria, the probes can be oxidized by superoxide to fluoresce.
ROS Analysis Service
We can use fluorescent probes such as DCFH-DA to detect ROS. DCFH-DA exhibits little fluorescence and can easily pass through the cell membrane. Once within the cell, it can be degraded by intracellular esterases to yield DCFH. DCFH cannot permeate cell membranes, allowing probes to be easily loaded into cells. Intracellular reactive oxygen species can oxidize non-fluorescent DCFH, resulting in fluorescent DCF. Detecting DCF fluorescence can help measure the quantity of intracellular reactive oxygen species.
Ca2+ Analysis Service
We can use fluorescent probes like Fluo-3 and Fura-2 to detect mitochondrial calcium in living cells. As the calcium concentration in the mitochondria increases, so does the fluorescence of the calcium indicator.
MPTPs Analysis Service
We can use acetoxymethyl ester (AM) of calcein and the calcein fluorescence quencher CoCl2 to selectively label mitochondria. Calcein AM enters cells by passive diffusion and accumulates in organelles like mitochondria. Once inside the cell, calcein AM can be degraded by intracellular esterase to produce the extremely polar fluorescent dye calcein, which is unable to permeate the mitochondrial or cell membranes in substantial quantities in a short time. When the calcein fluorescence in the mitochondria is steady, add CoCl2 to reduce the calcein fluorescence in the cytoplasm.
Why Choose Our Service?
Creative Biolabs distinguishes itself through its rigorous scientific approach, expertise, and unwavering commitment to regulatory compliance.
In-depth Mechanistic Insights
We not only report cell death but also pinpoint the exact points of bioenergy depletion. This clear mechanistic understanding is crucial for optimizing lead compound structures.
Physiologically Relevant Models
We prioritize high-quality, relevant cell systems, including induced pluripotent stem cell (iPSC)-derived models, ensuring our data are highly predictive of in vivo experimental outcomes.
Advanced Data Analysis
Our data processing workflows incorporate advanced network analysis and functional enrichment mapping to help you correlate bioenergy changes with underlying clinicopathologies.
Regulatory Compliance
Our protocols are developed to the stringent standards of regulatory agencies worldwide, providing you with ready-to-submit data packages.
Result Delivery
Upon project completion, Creative Biolabs will provide a comprehensive, structured report directly applicable to research and regulatory submissions.
01. Raw Data Files: All raw data collected from bioenergetics instruments and imaging platforms.
02. Analytical Data: Complete dose-response curves, calculated overall toxicity, and IC50 values for inhibition of specific complexes.
03. Interpretive Summary: Doctoral-level analysis of research findings, including the ordering of tested compounds and proposed toxicity mechanisms.
Frequently Asked Questions
Q: How to differentiate between specific mitochondrial toxicity and general cytotoxicity?
A: We employ a variety of methods, including concentration-effect analysis (to demonstrate mitochondrial effects below concentrations that cause general cytotoxicity), metabolic transformation analysis using galactose-containing media (for sensitive detection of mitochondrial damage), and multi-parameter assessment (to reveal specific mitochondrial dysfunction patterns). These methods work synergistically to help differentiate between specific mitochondrial toxic substances and general cytotoxic compounds.
Q: Which cell models are best suited for mitochondrial toxicity assessment?
A: Model selection depends on the specific assessment objective. HepG2 cells have relevant metabolic capabilities and are a reliable model for initial screening; while primary hepatocytes have higher physiological relevance. Some specialized models, such as cardiomyocyte and neuron models, can address tissue-specific issues. We guide clients in selecting the optimal model based on compound characteristics and target tissue.
Q: What are the main advantages of high-content imaging technology in assessing mitochondrial toxicity?
A: High-content imaging technology enables multi-parameter quantitative analysis at single-cell resolution, capturing heterogeneous responses within cell populations and revealing subcellular morphological changes. Compared to methods using only microplate readers, this method provides richer data and identifies specific phenotypic patterns indicating different toxicity mechanisms.
Q: How long does it take for high-throughput screening data to arrive?
A: Standard high-throughput sequencing protocols for mitochondrial dysfunction screening typically provide preliminary data within three to four weeks, depending on the number of compounds and the specific cell model required.
Connect with Us Anytime!
Creative Biolabs is committed to offering multiple mitochondrial function testing services. Our advantages are rich experience and mature technology. Please contact us for additional details.
References
- Sorriento, Daniela, Eugenio Di Vaia, and Guido Iaccarino. "Physical exercise: a novel tool to protect mitochondrial health." Frontiers in physiology 12 (2021): 660068. https://doi.org/10.3389/fphys.2021.660068
- Javadov, Sabzali, Andrey V. Kozlov, and Amadou KS Camara. "Mitochondria in health and diseases." Cells 9.5 (2020): 1177. 10.3390/cells9051177
- Distributed under Open Access license CC BY 4.0, without modification.)
