HCN2 Membrane Protein Introduction

Introduction of HCN2

Potassium/sodium hyperpolarization-activated cyclic nucleotide-gated channel 2, also known as brain cyclic nucleotide-gated channel 2 or BCNG-2, is a membrane protein that in human is encoded by HCN2 gene. This channel protein belongs to the family of hyperpolarization-activated cyclic nucleotide-gated (HCN) channels, and consists of six transmembrane domains (S1-S6), four subunits form a functional channel, homotetramers, and heterotetramers. HCN2 channel is expressed throughout the brain and heart and is quite sensitive to the intracellular cAMP concentration.

Basic Information of HCN2
Protein Name Potassium/sodium hyperpolarization-activated cyclic nucleotide-gated channel 2
Gene Name HCN2
Aliases Brain cyclic nucleotide-gated channel 2, BCNG-2
Organism Homo sapiens (Human)
UniProt ID Q9UL51
Transmembrane Times 6
Length (aa) 889

Function of HCN2 Membrane Protein

Hyperpolarization-activated cyclic nucleotide-gated channels are a kind of voltage-gated channels, and they open upon hyperpolarization of the membrane in contrast to most other voltage-gated channels. HCN2 channel is identified as a hyperpolarization-activated cation channel involved in the generation of native pacemaker activity in the heart and brain and shows weak selectivity for potassium over sodium ions. HCN2 channels are activated by cAMP which influences their gating behavior, and also by cGMP at 10-100 times higher concentrations. The channel activity is regulated by intracellular chloride ions and pH; acidic pH shifts the activation to more negative voltages. cAMP binding results in a conformation change that leads to the assembly of an active tetramer and channel opening. HCN2 channels are involved in the generation of native pacemaker currents in heart (If) and in neurons (Ih). It can also transport ammonium in the distal nephron. Recently, the HCN2 channels have shown to be associated with chronic pain and are regarded as potential targets for neuropathic episodes of pain.

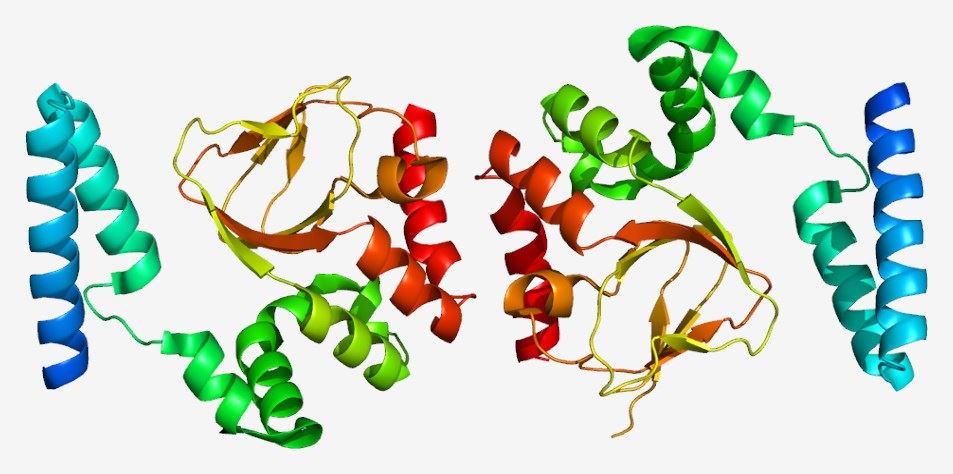

Structure of Potassium/sodium hyperpolarization-activated cyclic nucleotide-gated channel 2. Fig.1 Structure of Potassium/sodium hyperpolarization-activated cyclic nucleotide-gated channel 2.

Application of HCN2 Membrane Protein in Literature

  1. Pai V.P., et al. HCN2 Rescues brain defects by enforcing endogenous voltage pre-patterns. Nat Commun. 2018, 9: 998. PubMed ID: 29519998

    Authors in this article describe a biophysical mechanism of developmental brain damage and its functional rescue by predicting that exogenous HCN2 ion channels would restore the endogenous bioelectric pre-patterns necessary for brain patterning.

  2. Zhong P., et al. HCN2 channels in the ventral tegmental area regulate behavioral responses to chronic stress. Inflammopharmacology. 2018, 7: e32420. PubMed ID: 29256865

    This article reveals a crucial role for HCN2 in regulating VTA dopamine neuronal activity and depressive-related behaviors.

  3. Tsantoulas C., et al. Hyperpolarization-activated cyclic nucleotide-gated 2 (HCN2) ion channels drive pain in mouse models of diabetic neuropathy. Sci Transl Med. 2017, 9(409):eaam6072. PubMed ID: 28954930

    Findings of this article suggest that HCN2 may be an analgesic target in the treatment of painful diabetic neuropathy.

  4. Boink G.J., et al. The Ca2+-stimulated adenylyl cyclase AC1 generates efficient biological pacing as single gene therapy and in combination with HCN2. Circulation. 2012, 126(5): 528-536. PubMed ID: 22753192

    This article shows that AC1 or HCN2/AC1 overexpression in left bundle branches provides highly efficient biological pacing and greater sensitivity to autonomic modulation than HCN2 alone.

  5. Bhatt B., et al. The cGMP-Dependent Protein Kinase II Is an Inhibitory Modulator of the Hyperpolarization-Activated HCN2 Channel. PLoS One. 2011, 6(2):e17078. PubMed ID: 21347269

    The results of this article indicate that bidirectional regulation of HCN2 gating by cGMP contributes to cellular fine-tuning of HCN channel activity.

HCN2 Preparation Options

Our legendary Magic™ membrane protein production platform is flexible to offer different options, by which you can always find the most appropriate one for your project. To obtain the soluble and functional target protein, we present robust reconstitution forms as well as multiple active formats for membrane proteins. Aided by our versatile Magic™ anti-membrane protein antibody discovery platform, we also provide customized anti-HCN2 antibody development services.

With decades of experience and advanced technology, Creative Biolabs offers state-of-the-art membrane protein services using our Magic™ Membrane Platform to deliver a full range of standard and custom professional membrane protein preparation services. Please feel free to contact us for technical support.
