How does T7 display handle the folding problem for complex eukaryotic proteins?

Because T7 assembles in the cytoplasm, it benefits from the presence of cytoplasmic chaperones. For proteins requiring disulfide bonds, we utilize specialized E. coli strains that provide an oxidative cytoplasmic environment, ensuring functional display of folded proteins.

What is the maximum library diversity achievable with your T7 platform?

We routinely achieve primary library titers of 10^9 to 10^11 pfu/mL. Given the high efficiency of T7 DNA packaging, we can maintain functional diversities that represent a vast chemical space.

Is the lytic nature of T7 a disadvantage during the amplification of rare clones?

On the contrary, the lytic release ensures that the library composition is not biased by the host cell's secretion capacity. While it requires careful monitoring of the lysis time to prevent over-amplification, automated systems ensure consistent and representative library expansion.

T7 Display System Introduction

T7 Display Advantages Our Platform Our Services FAQs

Mechanism and Structural Basis of T7 Display

T7 bacteriophage, a prominent member of the Podoviridae family, is a lytic virus characterized by its icosahedral head and short, non-contractile tail. Unlike the more commonly known M13 filamentous phage, which follows a temperate life cycle, where progeny is extruded through the bacterial membrane without killing the host, the T7 phage is a virulent, lytic entity. It replicates within the cytoplasm of Escherichia coli and is released upon the programmed lysis of the host cell.

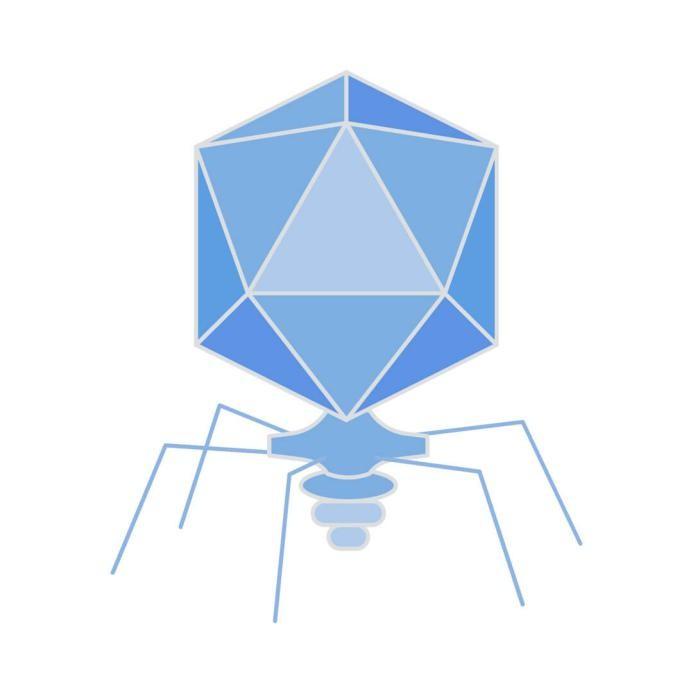

T7 Phage. (Creative Biolabs Original)

The T7 display system typically utilizes the major capsid protein, gp10, as the scaffold for displaying exogenous peptides or proteins. The capsid is composed of two isoforms: gp10A (344 amino acids) and gp10B (397 amino acids). In most engineering applications, foreign genetic sequences are inserted at the C-terminus of the 10B region. Because the assembly of T7 occurs entirely within the cytoplasm, the displayed molecules are not required to traverse the inner membrane via the Sec-pathway. This independence from the bacterial secretory machinery is the defining feature of T7 display, allowing for the presentation of complex or difficult-to-secrete proteins that would otherwise fail to display on M13.

At Creative Biolabs, we use the unique lytic cycle and structural stability of the T7 system to provide unparalleled solutions for the discovery of binders against challenging targets.

Understand How the T7 Display System Supports Binder Discovery.

Strategic Advantages of the T7 Platform

The shift toward T7 display in modern biophysics and drug discovery is driven by several distinct advantages that render it superior to traditional filamentous systems in specific contexts:

Independence from Secretion Constraints

The most significant bottleneck in M13 display is the requirement for the fusion protein to be transported into the periplasm. Many eukaryotic proteins or cysteine-rich peptides fold poorly in the bacterial periplasm or are toxic to the secretion machinery. T7 phages bypass this entirely by assembling in the cytoplasm. This allows for the display of a broader range of molecular weights and fold types, including large proteins up to 1200 amino acids.

High Genomic Stability

The T7 genome consists of linear double-stranded DNA (dsDNA), which is inherently more stable and less prone to spontaneous mutations during replication compared to the single-stranded DNA (ssDNA) of M13. T7 can accommodate large genomic insertions, often exceeding 1 kb, without compromising the structural integrity or the titer of the resulting phage library.

Rapid Growth and Selection Kinetics

The lytic cycle of T7 is fast; a single round of infection, replication, and lysis can occur in as little as 20 to 30 minutes. This accelerated life cycle translates to reduced timelines for biopanning and library amplification, allowing researchers to complete multiple rounds of selection in a fraction of the time required for temperate phages.

Robustness in Harsh Environments

T7 particles are exceptionally stable across a wide range of temperatures, pH levels, and chemical denaturants. This robustness enables stringent panning, where researchers can use harsh washing conditions to eliminate low-affinity binders, thereby isolating only the most resilient and high-affinity candidates.

Find the Right T7 Display Strategy for Your Research.

Creative Biolabs Platform Advantage

Creative Biolabs T7 display platform advantage. (Creative Biolabs Authorized)

At Creative Biolabs, we have synthesized decades of virology expertise with cutting-edge genomic engineering to create a premier Phage Display Platform. Our facility is designed to address the nuances of T7 biology, ensuring that every library constructed maintains maximal diversity and functional integrity.

Our platform utilizes specialized E. coli host strains and optimized T7 vectors that allow for tunable display valency. Depending on the project's goals, we can engineer High-Copy display (up to 415 copies per phage) for the detection of weak interactions through avidity effects, or Low-Copy display (0.1-1 copy per phage) to facilitate the selection of extremely high-affinity monovalent binders. This flexibility, combined with our advanced bioinformatics pipeline, allows us to track the enrichment of specific clones with high precision.

Looking for a High-Performance T7 Display Platform?

Creative Biolabs Services from Library to Lead

Creative Biolabs offers an end-to-end suite of services centered on the phage display platforms. We invite you to develop our specialized Phage Display based Binder Discovery workflows, which include:

Phage Display Library Construction

We provide phage display library construction for short peptides, antibody fragment and even larger proteins.

Phage Display Library Screening

High-throughput biopanning against soluble proteins, cell-surface receptors, and small molecules.

Monoclonal Antibody Discovery

Utilizing phage stability to create diverse scFv or Fab libraries for therapeutic antibody development.

Peptide Discovery

Screening for bioactive peptides, targeting moieties, or enzyme inhibitors.

Stable Binder Discovery

Focused on identifying scaffolds that maintain functionality in extreme physiological or industrial environments.

pH-Sensitive Binder Discovery

Engineering antibodies or peptides that associate or dissociate in response to pH changes, ideal for intracellular delivery or tumor-microenvironment targeting.

T7 phage display binder discovery services overview. (Creative Biolabs Authorized)

Creative Biolabs remains at the forefront of phage-based biotechnologies. Our commitment to scientific rigor and innovation ensures that our partners receive not just a service.

Connect With Our T7 Display Specialists.

FAQs

Q: How does T7 display handle the folding problem for complex eukaryotic proteins?
A: Because T7 assembles in the cytoplasm, it benefits from the presence of cytoplasmic chaperones. For proteins requiring disulfide bonds, we utilize specialized E. coli strains that provide an oxidative cytoplasmic environment, ensuring functional display of folded proteins.
Q: What is the maximum library diversity achievable with your T7 platform?
A: We routinely achieve primary library titers of 10⁹ to 10¹¹ pfu/mL. Given the high efficiency of T7 DNA packaging, we can maintain functional diversities that represent a vast chemical space.
Q: Is the lytic nature of T7 a disadvantage during the amplification of rare clones?
A: On the contrary, the lytic release ensures that the library composition is not biased by the host cell's secretion capacity. While it requires careful monitoring of the lysis time to prevent over-amplification, automated systems ensure consistent and representative library expansion.

Take the Next Step in T7 Display Development.
