The key to PE stability lies in the particles' tendency to adsorb irreversibly at the interface. This creates a dense, viscoelastic physical barrier that mechanically prevents droplets from merging (coalescence). The energy required to detach these particles is often orders of magnitude higher than the thermal energy, resulting in unparalleled long-term stability. The critical factor is the particle wettability, characterized by the three-phase contact angle (θ). Particles with an intermediate wettability (θ≈90°) exhibit the maximum desorption energy and offer the greatest stability, while the choice of particle material dictates the emulsion type (oil-in-water or water-in-oil).
Pickering Emulsion based Targeted Drug Delivery Solution
The transition of novel therapeutics from bench to bedside is often hampered by issues of stability, solubility, and targeted action. Our Pickering emulsion-based Delivery Systems Solution helps you accelerate drug discovery and formulation development through advanced colloidal stabilization and precise control over release kinetics. By utilizing solid, biocompatible particles as irreversible emulsifiers, we resolve the challenges of cargo protection and systemic toxicity that traditional surfactant systems often face, unlocking the full potential of your pharmaceutical and cosmetic ingredients.
Click Here to View more about our Services
Introduction of Pickering Emulsions in Advanced Delivery
Pickering emulsions (PEs) are robust dispersion systems composed of two immiscible liquid phases (typically oil and water) stabilized not by molecular surfactants, but by the adsorption of insoluble solid colloidal particles at the oil-water interface.
Fundamental Mechanism and Structure
Advantages Over Traditional Systems
Classical surfactant-stabilized emulsions rely on reversible molecular adsorption, making them sensitive to environmental changes. PEs, in contrast, utilize the mechanical strength of the particle layer. Recent literature consistently highlights that this solid barrier leads to superior shelf life, reduced toxicity, and greater flexibility in incorporating functional materials. Advances in material science have led to the utilization of diverse and biocompatible stabilizers, including starch nanocrystals, modified cellulose, protein nanoparticles (e.g., zein), and sophisticated Janus particles, expanding their use across biomedical and cosmeceutical fields.

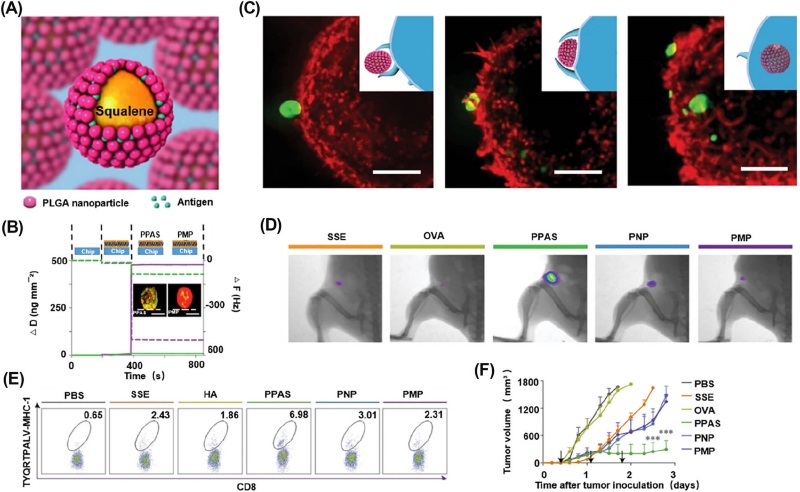

Fig.1 Pickering emulsion-based tumor immunotherapy.1,4
Application of Pickering Emulsion Delivery Systems
The unique stability and tunable nature of Pickering emulsions have rapidly made them a preferred platform across multiple industries requiring high-performance encapsulation and controlled release.
Pharmaceutical and Biomedical Applications
Oral Drug Delivery
PEs can shield acid-sensitive or enzyme-labile drugs within the core, protecting them during transit through the stomach and enhancing absorption in the intestine. This is particularly valuable for improving the bioavailability of lipophilic APIs.
Topical and Transdermal Delivery
The robust particle film enhances the adhesion of the formulation to the skin surface, improving local therapeutic effect and potentially promoting the transdermal penetration of certain drugs. The ability to use fewer synthetic components also minimizes skin irritation.
Targeted Therapy
The surface of the stabilizing particles can be chemically modified (functionalized) with targeting ligands (e.g., peptides or antibodies). This allows the entire emulsion droplet to be guided to specific tissues or cells, such as tumor sites, improving therapeutic concentration and reducing systemic side effects, an approach increasingly explored in oncology treatments (MDPI, Pharmaceutics).
Vaccine Adjuvants
PEs can act as excellent carriers and delivery vehicles for immunological agents, stabilizing antigens and providing an effective depot effect for sustained immune stimulation.
Food, Nutraceutical, and Cosmetic Applications
Encapsulation of Bioactive Compounds
PEs efficiently encapsulate and protect sensitive fat-soluble vitamins (like Vitamin E and β-carotene) or essential oils from oxidation, heat, and UV degradation, extending the lifespan and efficacy of the active ingredients.
Cosmetic Formulations
PEs allow for the creation of unique, lightweight, and luxurious textures with enhanced skin adhesion and controlled release of moisturizing or anti-aging ingredients. The use of natural, food-grade stabilizers aligns with the demand for "clean-label" and eco-friendly products.
Practical Research Case Studies

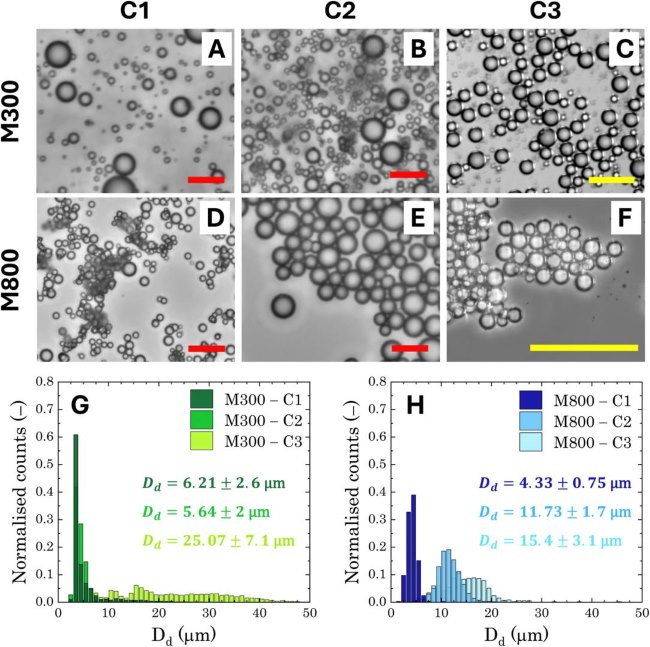

Thermo-Responsive Transdermal Patch
Pickering emulsions for stimuli-responsive transdermal drug delivery: effect of rheology and microstructure on performance
This study investigated stimuli-responsive Pickering emulsions for transdermal drug delivery, focusing on the impact of microgel size and microstructure. The emulsion was stabilized by temperature-responsive poly(N-isopropylacrylamide) (pNIPAM) microgels. Drug release kinetics were tested at room temperature and physiological temperature (37℃). The findings revealed that at 37℃, the microgels undergo a volume-phase transition, causing the drug release time to increase significantly. This confirmed that the microstructure, rather than bulk rheology, governs the sustained release, enabling a predictable, temperature-activated delivery profile.2,4

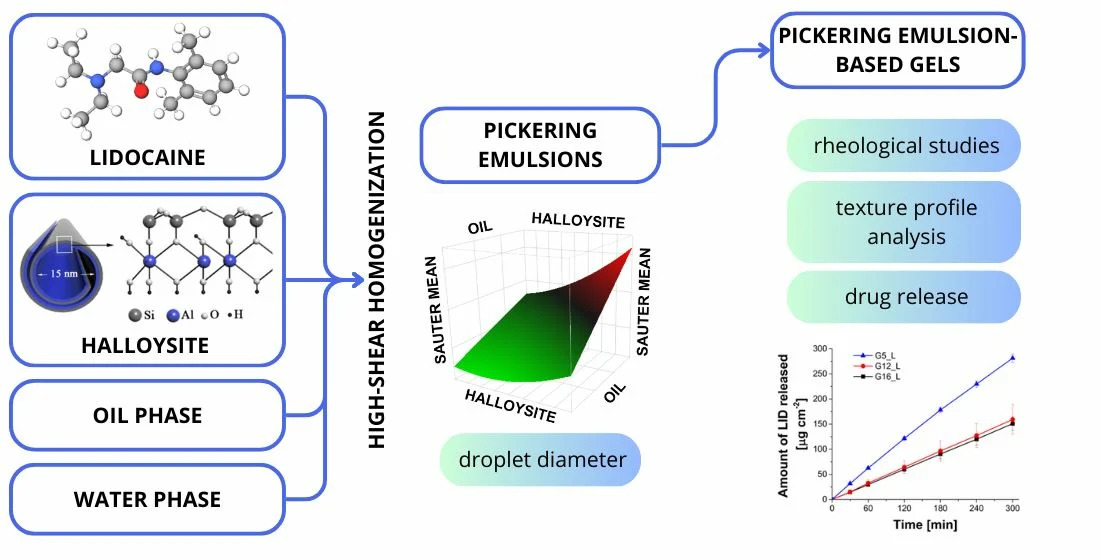

Halloysite Nanotube Topical Gels
Pickering Emulsion-Based Gels with Halloysite as a Stabilizer: Formulation, Mechanical Properties and In vitro Drug Release Studies
This research formulated oil-in-water (O/W) Pickering emulsion-based gels stabilized by naturally occurring halloysite nanotubes (HNTs). The systems were optimized for dermal application using a Quality by Design approach. The internal phase successfully encapsulated lidocaine, a local anesthetic, to test the system's drug delivery potential. The resulting halloysite-stabilized emulsions proved to be a promising, surfactant-free alternative to conventional creams, demonstrating excellent potential for enhanced topical drug delivery due to their unique mechanical properties and sustained release profile.3,4
What We Can Offer: Comprehensive Pickering Emulsion Services
At Creative Biolabs, we specialize in overcoming the most persistent obstacles in modern formulation science: protecting sensitive payloads and ensuring their effective delivery. Our Pickering emulsion platform provides a fundamentally superior alternative to conventional surfactant-stabilized systems.
Specific Deliverables and Solutions:
Enhanced Compound Stability
We formulate Pickering emulsions that exhibit exceptional resistance to droplet coalescence, Ostwald ripening, and phase separation, granting your active pharmaceutical ingredients (APIs), nutraceuticals, or cosmetic actives a significantly prolonged shelf life under varied environmental stresses (pH, temperature, ionic strength).
Surfactant-Free Biocompatibility
By using solid particles—such as biopolymers (proteins, polysaccharides), inorganic nanoparticles (silica, halloysite), or engineered colloidal systems—we minimize or eliminate the need for synthetic surfactants, thereby reducing potential in vivo toxicity and skin irritation risks.
Tunable Release Kinetics
Our control over the particle type, concentration, and interfacial structure allows for the precise customization of drug release profiles, enabling sustained, controlled, or even stimuli-responsive (e.g., pH or temperature) release for optimal therapeutic windows.
Improved Bioavailability
Especially critical for poorly water-soluble hydrophobic drugs, our emulsions enhance solubility and provide protection within the gastrointestinal tract, significantly boosting oral absorption and overall therapeutic efficacy.
We deliver fully optimized formulations, comprehensive stability data, and detailed protocols, ensuring a seamless transition to clinical or manufacturing stages.
FAQs
What makes a particle-stabilized emulsion fundamentally more stable than one using small-molecule surfactants?
The stability difference stems from the adsorption mechanism. Small-molecule surfactants adsorb reversibly at the oil-water interface, meaning they can easily detach under stress, leading to droplet merging (coalescence). Solid particles, however, adsorb almost irreversibly due to the high energy required to remove them from the interface, creating a robust, physical, three-dimensional barrier that mechanically locks the droplets in place, providing significantly prolonged stability.
Can these systems be used for both water-soluble and oil-soluble therapeutic compounds?
Yes, they offer dual encapsulation capability. Oil-soluble (hydrophobic) compounds are dissolved within the dispersed oil phase. Water-soluble (hydrophilic) compounds can be dissolved within the continuous aqueous phase or, through careful design, incorporated within the stabilizing solid particles themselves, enabling the simultaneous delivery of different types of payloads.
How do I ensure the delivery system will release the compound where it's needed?
The release profile is controlled by engineering the solid particles and the interfacial layer. We can design systems to be "smart" or responsive. For instance, using pH-sensitive particles allows the cargo to be retained at neutral pH (blood circulation) but rapidly released in the acidic environment of a tumor or the stomach. This precise tuning ensures targeted and efficient compound release.
What are the key properties of the solid particles that influence the final emulsion quality?
The two most critical properties are the particle size and its wettability (how it interacts with both oil and water). The particles must be much smaller than the droplets themselves, and their wettability must be carefully balanced (θ near 90°) to maximize their stabilizing effect at the interface. We must also consider particle rigidity and surface charge, as these influence particle-particle interactions and the overall strength of the interfacial film.
Are there regulatory or safety concerns associated with using solid particles instead of standard surfactants?
Generally, utilizing solid particles—especially those derived from natural sources (proteins, cellulose) or established pharmaceutical excipients (silica)—often leads to improved safety profiles compared to some synthetic surfactants, which can sometimes cause toxicity or irritation. By choosing stabilizers that have status, we ensure high biocompatibility, reducing regulatory hurdles and enhancing the formulation's overall safety for clinical use.
Creative Biolabs' Pickering Emulsion-based Delivery Systems Solution provides the stability, targeting potential, and formulation versatility required to transform challenging therapeutic candidates into market-ready products. We offer customized particle synthesis, comprehensive formulation optimization, and rigorous characterization to guarantee the success of your project.
Reference
- Pan, Jiahao, et al. "Pickering emulsion: From controllable fabrication to biomedical application." Interdisciplinary Medicine 1.3 (2023): e20230014. https://doi.org/10.1002/INMD.20230014.
- Migliozzi, Simona et al. "Pickering emulsions for stimuli-responsive transdermal drug delivery: effect of rheology and microstructure on performance." Soft matter vol. 20,43 8621-8637. 6 Nov. 2024, https://doi.org/10.1039/d4sm00993b.
- Froelich, Anna. "Pickering Emulsion-Based Gels with Halloysite as a Stabilizer: Formulation, Mechanical Properties and In vitro Drug Release Studies." Molecules (Basel, Switzerland) vol. 30,5 1087. 27 Feb. 2025, https://doi.org/10.3390/molecules30051087.
- Distributed under Open Access license CC BY 4.0, without modification.
