The drug is already in a solubilized form within the oil droplet, eliminating the dissolution step as a rate-limiting factor.
Self-Emulsifying Drug Delivery System Solution for Targeted Delivery
Self-emulsifying drug delivery systems (SEDDS) are a critical strategy for overcoming the poor aqueous solubility and low bioavailability plaguing many promising small-molecule drugs. Our Creative Biolabs Self-Emulsifying Drug Delivery System Solution helps you accelerate the development of orally bioavailable therapeutics through expert formulation design, rigorous characterization, and optimized scale-up protocols.
Click Here to View more about our Services
Introduction of Self-Emulsifying Drug Delivery System Solution
The Self-Emulsifying Drug Delivery System (SEDDS) is a cutting-edge approach designed to resolve the solubility-limited absorption of lipophilic drug molecules. Defined as isotropic, thermodynamically stable mixtures, SEDDS consists of three primary components: an oil or lipid, a surfactant, and optionally a co-surfactant or co-solvent.

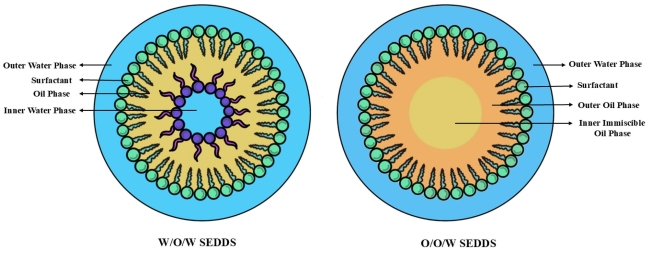

Fig.1 A self-double-emulsifying drug delivery system.1,4
Upon oral administration, the digestive motility of the stomach and intestine provides the mild agitation necessary for the SEDDS preconcentrate to spontaneously form a fine, stable oil-in-water emulsion when exposed to aqueous GI fluids. Depending on the droplet size achieved, the system is classified as SEDDS (typically 100-300 nm), SMEDDS (less than 100 nm), or SNEDDS (often less than 50 nm).

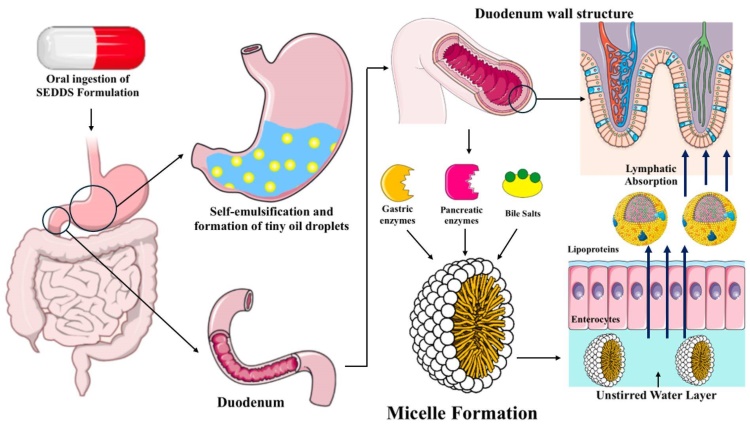

Fig.2 Mechanisms of drug absorption and bioavailability enhancement by SEDDS.1,4
Mechanism and Credibility: The efficiency of SEDDS is rooted in the increased surface area for drug absorption provided by the nano-sized emulsion droplets. Cited literature consistently highlights that this system:
Bypasses Dissolution
Modifies Membrane Permeability
Surfactants and co-solvents can act as mild permeation enhancers, further promoting drug uptake across the intestinal epithelium.
Facilitates Lymphatic Transport
The lipid nature of the droplets can steer the drug towards the lymphatic system, allowing it to circumvent extensive first-pass metabolism and resulting in higher systemic exposure.
This robust mechanism has established SEDDS as a superior formulation choice for improving the biopharmaceutical performance of drugs with intrinsic solubility challenges.
Application of SEDDS in Pharmaceutical Development
The versatility and effectiveness of SEDDS technology have extended its application across several challenging areas of pharmaceutical development:
Oral Bioavailability Enhancement
The most common application involves enhancing the oral absorption of drugs classified under BCS Class II (high permeability, low solubility) and Class IV (low permeability, low solubility). This is crucial for maximizing therapeutic effect while reducing the required dose.
Peptide and Biologics Delivery
Through advanced techniques like Hydrophobic Ion Pairing (HIP), SEDDS can be engineered to encapsulate and protect hydrophilic macromolecules, such as certain peptides and proteins, from enzymatic degradation in the GI tract, opening avenues for non-invasive oral delivery of biologics.
Modified Release Systems
SEDDS can be incorporated into complex delivery matrices to achieve controlled or sustained drug release profiles. By solidifying the system (S-SEDDS) and integrating it into pellets or tablets, formulators can manage drug plasma concentration and improve patient compliance.
Reduction of Food Effects
By providing a consistent, pre-solubilized lipid environment, SEDDS can often minimize the erratic absorption commonly seen when lipophilic drugs are taken without food, thereby reducing inter- and intra-subject variability.
Practical Research Case Studies

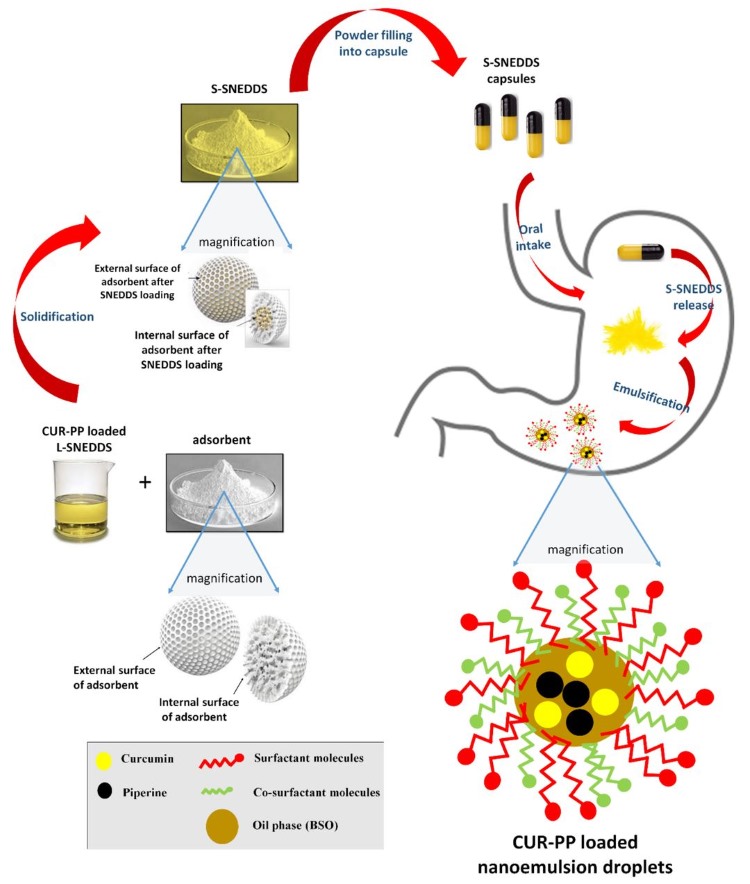

Bioactive Self-Nanoemulsifying Drug Delivery Systems (Bio-SNEDDS) for Combined Oral Delivery of Curcumin and Piperine
This study developed a solid, bioactive Self-Nanoemulsifying Drug Delivery System (Bio-SNEDDS) to co-deliver the poorly soluble drugs Curcumin and Piperine. Formulations were optimized using lipid excipients and solidified onto carriers like Aerosil. The solid Bio-SNEDDS rapidly formed stable nanoemulsions upon contact with water, showing sustained release of both compounds in simulated intestinal fluids. This approach effectively overcame the low solubility challenge and demonstrated strong potential for enhancing the combined oral bioavailability of these bioactive agents.2,4

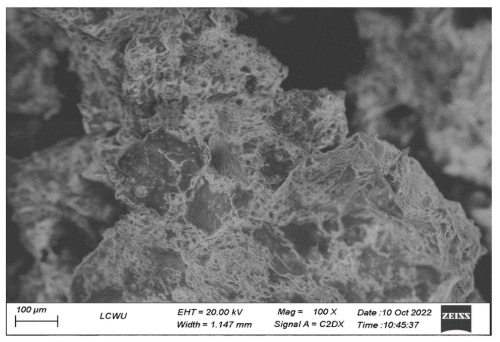

Design and Evaluation of Hydrophobic Ion Paired Insulin Loaded Self Micro-Emulsifying Drug Delivery System for Oral Delivery
Researchers designed a Self-Microemulsifying Drug Delivery System (SMEDDS) for non-invasive oral delivery of Insulin, which typically degrades rapidly in the gut. The protein was stabilized using Hydrophobic Ion Pairing (HIP) with sodium dodecyl sulfate. The optimized SMEDDS formulation exhibited high drug loading and stable droplet size. In vivo evaluation in diabetic rats demonstrated a significant pharmacological effect, resulting in a remarkable 78% relative bioavailability compared to subcutaneous injection, validating SMEDDS for oral protein delivery.3,4
What We Can Offer: Comprehensive SEDDS Development Services
Poor oral bioavailability remains the most significant hurdle in advancing lipophilic New Chemical Entities (NCEs) from the bench to the clinic. An effective SEDDS bypasses the slow and often incomplete dissolution step, presenting the drug to the intestinal wall already solubilized within a high-surface-area colloidal phase.
Creative Biolabs provides a targeted, end-to-end solution for bioavailability enhancement. Our assistance is focused on maximizing therapeutic efficacy and stability while ensuring regulatory compliance. We do not just provide a formula; we deliver a thoroughly optimized, characterized, and scalable dosage form.
Key problem-solving capabilities clients can expect:
Solubility Maximization
We screen comprehensive excipient libraries (oils, surfactants, co-solvents) to achieve maximal drug loading and maintain supersaturation in vivo, preventing drug precipitation upon dilution in the gastrointestinal (GI) tract.
Bioavailability Enhancement
By forming nano-sized droplets (often Self-Microemulsifying or Self-Nanoemulsifying Drug Delivery Systems - SMEDDS/SNEDDS), we ensure a vast increase in the interfacial surface area for absorption, often leading to enhanced lymphatic transport and reduced hepatic first-pass metabolism.
Stability and Compliance
We develop stable liquid SEDDS (L-SEDDS) or transition to more robust solid SEDDS (S-SEDDS) using techniques like spray drying or adsorption, resolving issues related to capsule leakage, stability, and handling for seamless progression to clinical trials.
FAQs
How can a lipid-based system ensure the drug remains solubilized and doesn't precipitate once it reaches the highly aqueous environment of the small intestine?
The formulation must be finely tuned to generate small, stable colloidal structures, often nano-sized droplets, upon contact with intestinal fluid. The presence of highly efficient surfactants and co-solvents, along with the natural digestive products of the lipid phase, actively maintains a state of supersaturation for the drug, kinetically stabilizing it in the dissolved state until it can be absorbed. Effective systems often incorporate precipitation inhibitors to ensure this stability is prolonged.
What are the main criteria used to select the oil and surfactant components for an optimal self-emulsifying formulation?
The selection is primarily based on two critical factors: the drug's maximal solubility within the excipient, and the excipient's ability to facilitate spontaneous, efficient emulsification. Oils must effectively dissolve the drug to achieve the target dose, and surfactants/co-solvents (often with high Hydrophilic-Lipophilic Balance, or HLB) must possess the necessary properties to reduce interfacial tension and form fine droplets rapidly. Extensive phase diagram studies are required to pinpoint the ideal ratios.
Is it possible to administer self-emulsifying systems as a solid dosage form, and what advantages does solidification offer?
Yes, liquid preconcentrates can be successfully converted into solid forms (S-SEDDS) using techniques such as adsorption onto high-surface-area solid carriers or by incorporating the system into pellets via hot-melt extrusion. Solidification eliminates concerns like capsule leakage, improves long-term physical stability, and enhances patient compliance by allowing formulation into conventional capsules or tablets.
How does droplet size impact the absorption mechanism of the drug from the resulting emulsion in the gut?
Smaller droplet size, particularly in the nano-range (<100 nm), significantly increases the total surface area for absorption. Furthermore, smaller droplets are more efficiently taken up by the lymphatic pathway, helping the drug bypass hepatic first-pass metabolism. Generally, a smaller, uniformly sized droplet distribution (low PDI) leads to faster, more consistent, and higher drug absorption.
Are these highly engineered lipid systems subject to digestion, and how does that process affect drug release and absorption?
Yes, the lipid components are subject to digestion by pancreatic lipase in the GI tract. This is a critical factor; the digestion generates amphiphilic products (e.g., mono- and diglycerides) that interact synergistically with endogenous bile salts and the administered surfactant/co-solvent. This in situ generation of mixed micelles and vesicles often further enhances the drug's solubility and shuttles it toward the absorbing membrane, actively promoting absorption.
Creative Biolabs is dedicated to dismantling the barriers that limit the oral efficacy of challenging drug candidates. Our Self-Emulsifying Drug Delivery System Solution represents a fusion of scientific rigor and commercial foresight, providing a clear pathway from complex molecule to highly bioavailable therapeutic product. We are ready to leverage our deep formulation expertise to solve your most persistent solubility challenges.
Reference
- Uttreja, Prateek et al. "Self-Emulsifying Drug Delivery Systems (SEDDS): Transition from Liquid to Solid-A Comprehensive Review of Formulation, Characterization, Applications, and Future Trends." Pharmaceutics vol. 17,1 63. 5 Jan. 2025, https://doi.org/10.3390/pharmaceutics17010063.
- Kazi, Mohsin et al. "Bioactive Self-Nanoemulsifying Drug Delivery Systems (Bio-SNEDDS) for Combined Oral Delivery of Curcumin and Piperine." Molecules (Basel, Switzerland) vol. 25,7 1703. 8 Apr. 2020, https://doi.org/10.3390/molecules25071703.
- Mudassir, Jahanzeb et al. "Design and Evaluation of Hydrophobic Ion Paired Insulin Loaded Self Micro-Emulsifying Drug Delivery System for Oral Delivery." Pharmaceutics vol. 15,7 1973. 18 Jul. 2023, https://doi.org/10.3390/pharmaceutics15071973.
- Distributed under Open Access license CC BY 4.0, without modification.
