Biomaterial-based Implantable Cancer Vaccine Solutions

Moving beyond conventional systemic delivery, Creative Biolabs leads the way in preclinical development of biomaterial-based implantable cancer vaccines. By engineering sophisticated biomaterial scaffolds, we create an artificial "immune-niche" in situ to orchestrate potent, localized, and systemic antitumor immunity.

Our solutions focus on TME (tumor microenvironment) remodeling and recruitment of antigen-presenting cells (APCs), offering a transformative strategy to prevent postsurgical recurrence and eradicate residual disease in animal models.

Get a Quote

Why Implantable Scaffolds for Cancer Vaccination?

Traditional cancer vaccines often struggle with rapid systemic clearance and poor accumulation at the tumor site. Our biomaterial-based implantable solution addresses these bottlenecks through spatial and temporal control:

  • In Situ APC Recruitment: Scaffolds release chemokines (e.g., GM-CSF) to actively recruit dendritic cells into the biomaterial "training camp."
  • Sustained Immuno-Activation: Gradual release of tumor antigens and adjuvants ensures long-term exposure, mimicking natural infection signals.
  • Postsurgical Protection: Filling the resection bed with a vaccine-loaded hydrogel to eliminate "micrometastases" and prevent local recurrence.

Our Specialized Preclinical Solutions

We provide a comprehensive suite of services to design and validate next-generation implantable vaccines:

Scaffold Architecture Engineering

Custom synthesis of macroporous cryogels, injectable hydrogels, and polymer disks optimized for cell infiltration and controlled degradation kinetics.

Intelligent Cargo Loading

Precision encapsulation of tumor-associated antigens (TAAs), neoantigens, and TLR agonists (CpG, Poly I:C) to maintain bioactivity and stability.

TME Remodeling Strategies

Incorporating checkpoint inhibitors (e.g., αCD47, αPD-1) or metabolic modulators to transform a "cold" tumor bed into an "immunologically hot" zone.

In Vivo Efficacy Profiling

Rigorous evaluation in orthotopic tumor models, monitoring tumor regression, survival rates, and the generation of long-term immunological memory.

Strategic Preclinical Development Pipeline

Our specialized workflow ensures the translation of material science into potent cancer immunotherapies:

Step 1: Rational Scaffold Design & Chemistry

Activities: Selection of base polymers (e.g., Alginate, PLG, Chitosan) and cross-linking chemistry. We optimize pore size, mechanical stiffness, and degradation profiles to match the target tumor site.

Outcome: A characterized biomaterial base with ideal physicochemical properties.

Step 2: Cargo Integration & Release Kinetics

Activities: Loading of TAAs, chemokines, and adjuvants. We perform longitudinal in vitro release studies using ELISA or HPLC to ensure controlled delivery without initial burst effects.

Outcome: Stable, vaccine-loaded implants ready for biological testing.

Step 3: Biocompatibility & Cell Recruitment Assays

Activities: Cytotoxicity screening and Transwell migration assays. We measure the capacity of the scaffold to recruit primary bone marrow-derived dendritic cells (BMDCs) in vitro.

Outcome: Functional validation of APC recruitment potential.

Step 4: Pilot In Vivo Immunogenicity Study

Activities: Implantation in healthy or tumor-bearing mice. We analyze the "draining lymph node" response and perform flow cytometry on the scaffold itself to quantify infiltrating immune populations (CD8+, Tregs, MDSCs).

Outcome: Proof-of-concept for in vivo immune-niche formation.

Step 5: Tumor Challenge & Memory Assessment

Activities: Survival analysis in therapeutic and prophylactic tumor models. We evaluate the abscopal effect on distant tumors and perform re-challenge studies to confirm T-cell memory establishment.

Outcome: Comprehensive preclinical data package for lead candidate selection.

Discuss Your Project Timeline

Next-Gen Technology Platforms

Our solutions are anchored by advanced platforms designed to solve the complexity of in situ vaccination:

Immuno-Niche Engineering Platform: We utilize advanced polymer chemistry to create scaffolds that not only deliver antigens but also provide a mechanical and chemical microenvironment that mimics lymphoid tissues, favoring DC maturation.

  • Tunable degradation for chronic immune stimulation
  • Interconnected porosity for optimal cell infiltration
  • Surface modification for enhanced cargo tethering

TME Profiling & Remodeling Center: Our platform evaluates the immunosuppressive landscape (e.g., TGF-β, IL-10 levels) and designs material-based interventions to neutralize these signals, "resetting" the TME for effective vaccination.

  • Multiplex IHC for spatial immune analysis
  • Metabolic profiling of the tumor bed
  • Targeted delivery of TME-modulating small molecules

Photo-Immuno-Therapy Platform: Integrating light-responsive elements into hydrogels to trigger Immunogenic Cell Death (ICD). This platform combines PTT/PDT with implantable vaccines for a synergistic "kill and educate" effect.

  • Near-Infrared (NIR) responsive hydrogel matrices
  • Optimized delivery of photosensitizers
  • Real-time temperature monitoring for PTT precision

Advanced Animal Imaging & Tracking: Utilizing bioluminescence (BLI) and fluorescence molecular tomography (FMT) to monitor scaffold degradation and immune cell trafficking in real-time within live animal models.

  • Longitudinal cargo release tracking
  • Labeled immune cell migration studies
  • Whole-body antitumor response visualization
Immuno-Niche Engineering
TME Remodeling
Photo-Immuno Platform
Bio-Imaging Center

Scientific Case Study: In Situ Photoimmunotherapy

Preventing Oral Cancer Recurrence via Implantable Hydrogel

Background: Postsurgery recurrence is a major challenge in oral cancer. Traditional therapies often fail to clear residual "seeds" in the tumor bed.

Innovation: A recent study (Chen et al., 2024) developed an implantable hydrogel vaccine designed for in situ photoimmunotherapy. This system fills the surgical cavity and acts as a dual-action "cleaner and guard."

Key Mechanism & Highlights:
  • Precision PTT/PDT: Local delivery of δ-ALA induced Immunogenic Cell Death (ICD) upon NIR irradiation, releasing endogenous tumor antigens.
  • APC Activation: Sustained release of αCD47 and CaCO3 nanoparticles neutralized "don't eat me" signals and activated dendritic cells.
  • Recurrence Prevention: The system successfully eradicated residual cancer cells in murine models and established long-term immune memory, preventing local and distant relapse.

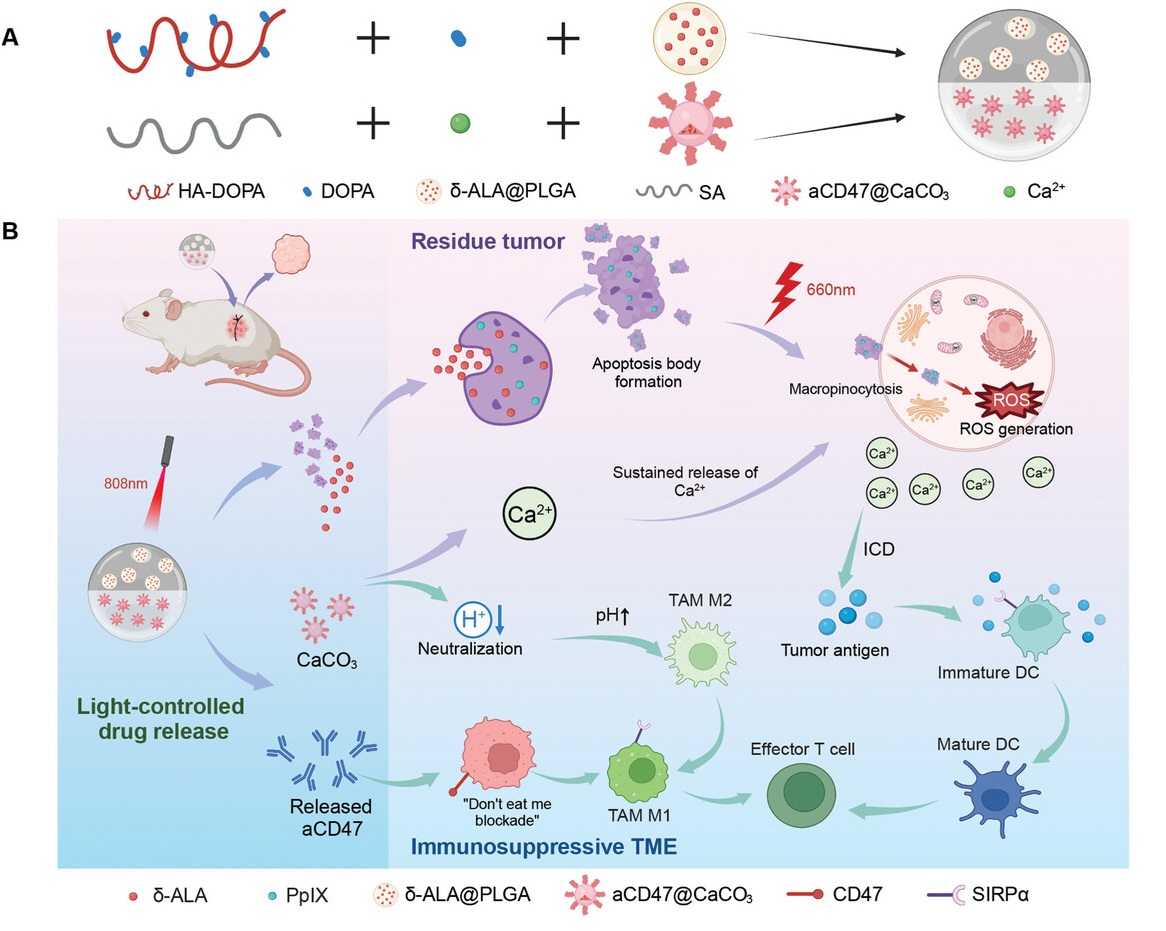

Implantable in situ vaccine hydrogel for synergistic tumor phototherapy and immunotherapy.

Fig.1 Synthesis and characterization of implantable in situ vaccine hydrogel. in situ photoimmunotherapy and antitumor immunity.1,2

Frequently Asked Questions

Q: What are the primary advantages of implantable scaffolds over systemic immunotherapy in preclinical models?

A: The main advantage is the creation of a "local immune niche." Scaffolds allow for much higher local concentrations of adjuvants and antigens with lower systemic toxicity. They actively recruit APCs to the vaccine site, ensuring efficient processing and presentation that systemic injections often miss due to dilution and off-target clearance.

Q: How do you control the degradation rate of the biomaterial?

A: Degradation is tuned during the synthesis phase by adjusting polymer molecular weight, cross-linking density, and the inclusion of biodegradable bonds (e.g., esters or enzymatically-cleavable peptides). We match the degradation rate to the required duration of the immune response, typically ranging from weeks to months in preclinical studies.

Q: Can these vaccines be used for non-resectable tumors?

A: Yes. For non-resectable tumors, we focus on injectable hydrogels or in situ forming scaffolds. These are delivered via intratumoral injection as a liquid and solidify into a scaffold within the tumor, allowing for TME remodeling and immune activation without the need for major surgery.

Q: How do you ensure the stability of antigens and antibodies within the scaffold?

A: We utilize various stabilization techniques, including protein-polymer conjugation, encapsulation within protective nanocarriers before scaffold integration, and the use of stabilizing excipients. Bioactivity is rigorously confirmed through in vitro release and functional assays before moving to in vivo studies.

Q: What animal models are most suitable for evaluating implantable vaccines?

A: Syngeneic murine models are most commonly used to ensure a fully functional immune system. We also utilize orthotopic models (e.g., surgical resection models for oral or breast cancer) to specifically evaluate postsurgical recurrence prevention, as well as humanized mouse models for testing human-specific antigens or checkpoint inhibitors.

References:
1. Chen, Lan, et al. "Protecting Against Postsurgery Oral Cancer Recurrence with an Implantable Hydrogel Vaccine for In Situ Photoimmunotherapy." Advanced Science 11.46 (2024): 2309053.
2. Distributed under Open Access License CC BY 4.0, without modification.
