CRISPR assisted gRNA Cloning Service
gRNA (guide RNA) cloning involves the design and insertion of guide RNA sequences into appropriate expression vectors, enabling targeted genome editing when combined with CRISPR-Cas systems. This process is essential for achieving accurate gene knockout, activation, or repression in a wide range of biological studies and therapeutic research. With extensive expertise in CRISPR vector design, Creative Biolabs delivers fully customized gRNA cloning services—covering everything from sequence design and synthesis to high-fidelity vector construction and quality validation—ensuring each guide RNA is optimized for precision, efficiency, and compatibility with your experimental platform.
Understanding the Crucial Role of gRNA in CRISPR Systems
Before delving into our comprehensive services, it is vital to understand the structural and functional significance of gRNA. In nature, the CRISPR-Cas9 system utilizes two separate RNA molecules: the CRISPR RNA (crRNA), which dictates the target DNA sequence, and the trans-activating crRNA (tracrRNA), which serves as a binding scaffold for the Cas nuclease.

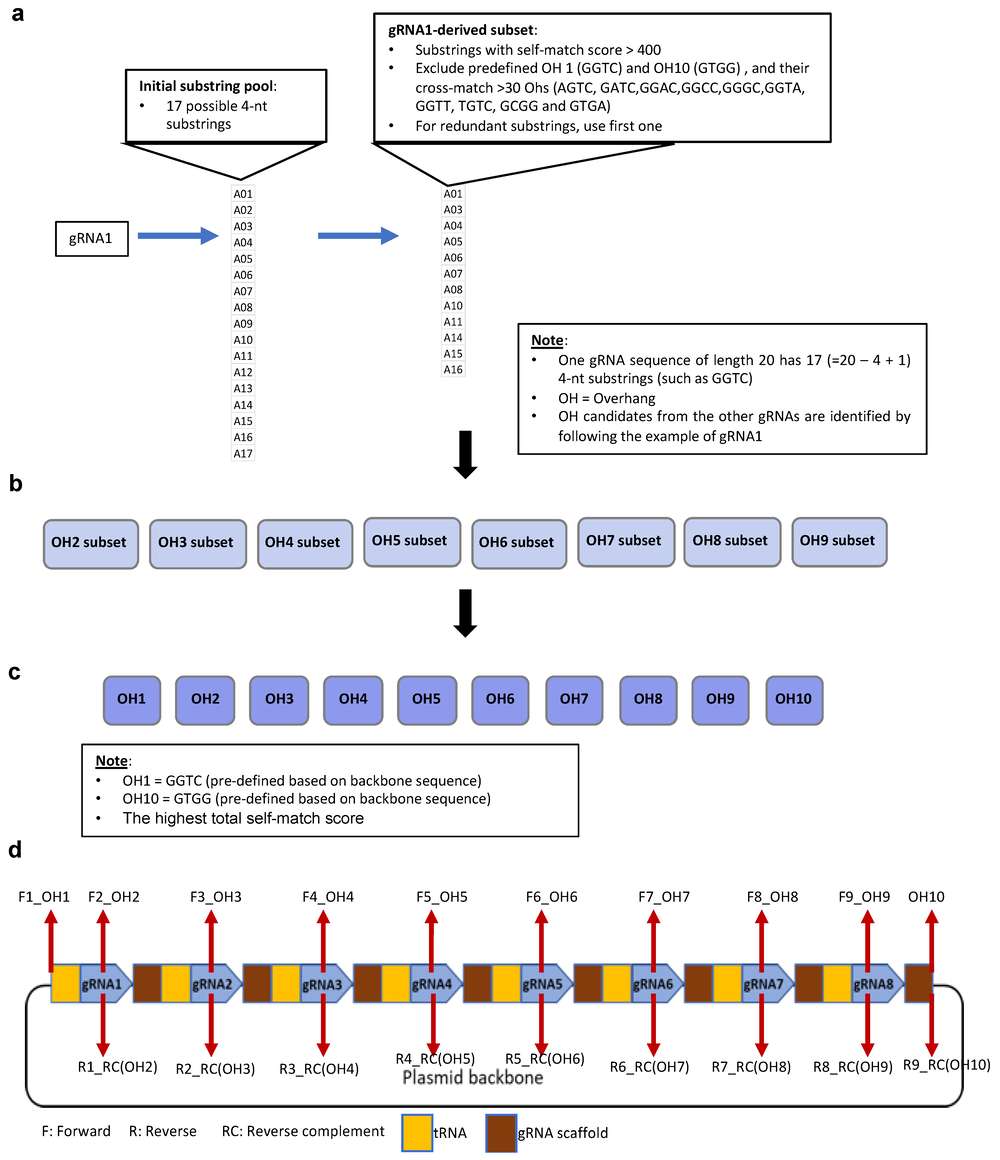

Figure 1. Global optimization of OHs from the 8 gRNA sequences.1
In modern laboratory applications, these two molecules are typically fused into a single chimeric molecule known as single guide RNA (sgRNA). The sgRNA consists of:
- A 20-nucleotide (nt) targeting sequence (spacer): This region must be meticulously designed to complement the target genomic locus immediately upstream of a Protospacer Adjacent Motif (PAM).
- A scaffold region: A highly structured RNA sequence that binds tightly to the Cas nuclease (e.g., SpCas9, SaCas9, Cas12a), inducing the conformational change required for DNA cleavage.
Challenges of In-House gRNA Cloning
Many laboratories attempt to perform gRNA cloning manually using standard restriction enzyme digestion and ligation methods. While feasible for a small number of constructs, this approach introduces several significant challenges that can derail critical research timelines:
Challenge 1: Unpredictable Off-Target Effects
Poorly designed gRNAs can exhibit significant homology to unintended regions of the genome. In-house bioinformatics tools may fail to accurately predict the thermodynamic stability of off-target binding, leading to confounding experimental results or fatal toxicity in therapeutic applications.
Challenge 2: Low Ligation and Transformation Efficiency
The short nature of gRNA oligos (typically ~20 bp) can result in secondary structure formation, such as hairpins, which interfere with proper annealing. Furthermore, traditional Golden Gate or restriction-ligation cloning often yields a high background of empty vectors, requiring tedious colony screening and sequencing.
Challenge 3: Inadequate Promoter and Vector Compatibility
The choice of RNA polymerase III promoters (such as U6 or H1) is critical for driving gRNA expression in mammalian cells. However, certain target sequences may contain termination signals (e.g., poly-T tracts) that cause premature transcription termination. Additionally, standard vectors may lack the appropriate selection markers (puromycin, blasticidin) or reporters (GFP, mCherry, RFP) necessary for your specific cell line.
Challenge 4: Scaling Difficulties for Multiplexing
Modern CRISPR applications often require the simultaneous delivery of multiple gRNAs (multiplexing) to target large chromosomal deletions or modulate multiple genes simultaneously. Cloning multiple gRNA expression cassettes into a single vector using traditional methods is notoriously complex, prone to recombination events, and highly inefficient.
Introduction of gRNA Cloning Service for CRISPR
gRNA cloning for CRISPR entails designing, synthesizing, and inserting guide RNA sequences into suitable expression vectors to facilitate accurate gene targeting using CRISPR-Cas systems. These vectors are highly customizable and can be integrated with various backbone features, such as antibiotic resistance genes, fluorescent markers, or barcode elements, making them suitable for diverse experimental purposes including gene editing, drug screening, lineage tracing, and cell sorting. In addition to standard single gRNA cloning, pooled gRNA library construction enables high-throughput CRISPR screening across thousands of target genes. These pooled libraries are essential tools in functional genomics, allowing researchers to identify genes involved in drug response, disease mechanisms, or cell differentiation by systematically perturbing gene function across the genome. gRNA cloning service provides researchers with scalable, accurate, and application-specific solutions to accelerate genome editing studies and large-scale discovery efforts.
Comprehensive gRNA Cloning Services Offered
We recognize that no two research projects are alike. Therefore, we have structured our cloning services to be fully modular, accommodating a vast spectrum of experimental requirements.
Single gRNA Cloning
Ideal for standard gene knockout (KO) or localized knock-in (KI) experiments. You simply provide us with your target gene name, RefSeq ID, or the specific sequence you wish to edit, and our team will handle the rest.
- Design & Evaluation: We design 3 to 5 optimized gRNA candidates per target gene, utilizing advanced algorithms to score for on-target activity and off-target avoidance.
- Vector Selection: Choose from our extensive library of pre-validated expression vectors, featuring varying Cas enzymes, promoters, and selection markers.
- Deliverable: 10 μg of sequence-verified plasmid DNA, accompanied by a comprehensive QC report and chromatograms.
Multiplex and Dual-gRNA Cloning
For researchers requiring the excision of regulatory elements, large genomic deletions, or multi-gene targeting (e.g., targeting redundant gene families or compensatory pathways), we offer customized multiplex cloning.
- Dual-gRNA Vectors: We construct vectors containing two distinct gRNA expression cassettes (driven by independent U6 or H1 promoters) alongside your Cas nuclease of choice.
- Polycistronic tRNA-gRNA Architectures: For higher-order multiplexing (expressing 3 to 6+ gRNAs from a single transcript), we utilize endoribonuclease-based cleavage systems (such as Csy4) or endogenous tRNA processing machinery. This ensures stoichiometric expression of all guide RNAs in the target cell.
Pooled CRISPR gRNA Library Construction
High-throughput functional genomics relies on pooled CRISPR screening. Whether you are performing positive selection (e.g., drug resistance screens) or negative selection (e.g., essential gene discovery), the quality of your plasmid library is paramount.
- Custom Library Design: We can synthesize custom oligonucleotide pools targeting custom gene sets with varying depth (e.g., 4 to 10 gRNAs per gene).
- High-Coverage Cloning: We utilize optimized Gibson Assembly and Golden Gate methodologies to clone complex oligo pools into your chosen lentiviral vector.
- Next-Generation Sequencing (NGS) Validation: We perform deep NGS sequencing on the final cloned library to guarantee >99% coverage, minimal skewness, and an even distribution of gRNAs.
Custom Vector Integration and Modification
Do you have a proprietary vector backbone? We offer seamless integration of gRNA cassettes into any custom plasmid. Whether it is an Adeno-Associated Virus (AAV) vector with strict size limitations or a specialized lentiviral transfer plasmid, our molecular biology team can engineer the appropriate cloning sites and insert your gRNAs with 100% sequence accuracy.
Common Vector Features Available for gRNA Cloning
| Vector Feature | Purpose | Typical Application |
|---|---|---|
| U6 or H1 promoter | Drives gRNA expression | Standard CRISPR knockout, knock-in, CRISPRi, CRISPRa |
| Antibiotic resistance marker | Enables selection of transfected or transduced cells | Stable cell pool or clone generation |
| Lentiviral backbone | Supports stable delivery into dividing and non-dividing cells | Functional screens, stable CRISPR perturbation |
| AAV-compatible elements | Supports AAV-mediated delivery when suitable | Gene therapy research models |
| Cas-compatible design | Matches gRNA scaffold to selected Cas system | SpCas9, SaCas9, dCas9 systems, and other platforms |
| Restriction or recombination sites | Enables modular cloning | Custom vector engineering |
| Reporter or selection cassette | Facilitates downstream enrichment | Cell line engineering and validation |
Versatile Vector Systems and Delivery Formats
A perfect gRNA is only effective if it can be successfully delivered to your target cells. We offer an extensive repertoire of vector backbones and final delivery formats to ensure compatibility with your specific experimental paradigm.
- All-in-One Vectors: Plasmids expressing both the Cas nuclease and the gRNA from a single backbone. Perfect for easily transfected cell lines.
- Two-Vector Systems: Separate plasmids for Cas nuclease and gRNA expression, offering greater flexibility and efficiency in generating stable Cas9-expressing cell lines prior to gRNA introduction.
- Viral Transfer Vectors: Specialized backbones containing Long Terminal Repeats (LTRs) or Inverted Terminal Repeats (ITRs) for subsequent packaging into Lentivirus, Adenovirus, or Adeno-Associated Virus (AAV).
- Reporter and Selection Options: Customize your vector with diverse selection cassettes and fluorescent reporters (EGFP, BFP) to enable easy tracking, flow cytometry sorting (FACS), and stable cell line generation.
Workflow of gRNA Cloning Service for CRISPR

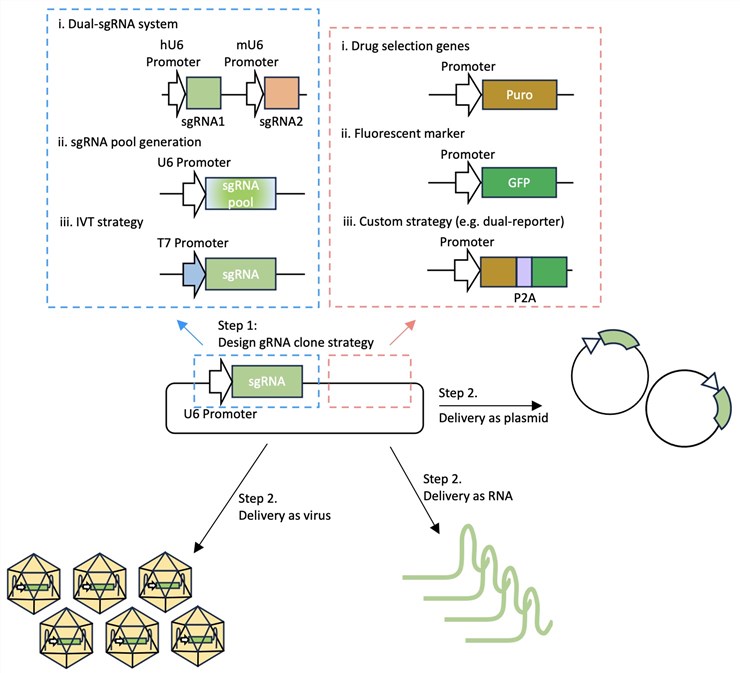

Figure. 2 Workflow of our gRNA cloning service for CRISPR.
Project Types We Commonly Support
Academic Research Projects
Academic laboratories often need reliable constructs for hypothesis-driven gene function studies. Creative Biolabs supports small-scale gRNA cloning projects with flexible design options, clear documentation, and reliable turnaround.
Biotechnology Discovery Programs
Biotechnology teams may require gRNA constructs for target validation, disease modeling, assay development, and early therapeutic research. Creative Biolabs can provide customized gRNA cloning solutions that fit discovery-stage workflows.
Pharmaceutical Functional Genomics
Pharmaceutical research teams may use CRISPR screening to identify therapeutic targets, resistance mechanisms, synthetic lethal partners, or pathway regulators. Creative Biolabs supports custom gRNA libraries and vector systems suitable for large-scale discovery programs.
Gene Therapy Research
CRISPR is increasingly used in gene therapy research for disease modeling, target validation, ex vivo editing studies, and delivery system evaluation. Creative Biolabs' gene therapy-focused service structure allows gRNA cloning to be integrated with viral vector and nucleic acid delivery-related workflows.
Frequently Asked Questions (FAQ)
Q: What information should I provide to start a gRNA cloning project?
A: To begin a project, you may provide the target gene name, species, target sequence or genomic coordinates, intended CRISPR application, preferred Cas system, vector requirements, and delivery method. If you already have guide RNA sequences, Creative Biolabs can use them directly after compatibility review. If you do not have finalized sequences, our team can assist with guide design and candidate selection.
Q: Can Creative Biolabs design the gRNA sequence for my target gene?
A: Yes. Creative Biolabs can design guide RNA candidates according to your gene target, species, editing purpose, and preferred CRISPR system. For many projects, we recommend several candidate gRNAs to increase the chance of identifying an efficient guide. The final design can be reviewed and confirmed by the client before cloning begins.
Q: Can I provide my own vector backbone?
A: Yes. Clients may provide their own vector backbone for gRNA insertion. Creative Biolabs can review the vector map, cloning sites, promoter system, selection marker, and compatibility with the requested guide design. If your vector is not ideal for the intended application, our scientists can recommend alternative backbone options.
Q: Do you support dual-sgRNA or multiplex gRNA cloning?
A: Yes. Creative Biolabs supports dual-sgRNA and multiplex gRNA cloning strategies. These designs are useful for genomic deletion, dual-target editing, paired nickase approaches, pathway studies, and complex cell engineering projects. Our team can help determine whether separate constructs or a single multi-guide vector is better suited for your project.
Q: Can this service support pooled CRISPR library construction?
A: Yes. Creative Biolabs can construct custom pooled gRNA libraries for CRISPR knockout, CRISPRa, CRISPRi, and other screening applications. Libraries may be designed around selected gene panels, pathways, disease-relevant targets, or genome-wide applications. QC options can be tailored according to library size and downstream screening requirements.
How gRNA Cloning Service for CRISPR Can Assist Your Project
At Creative Biolabs, our gRNA cloning service offers a versatile and reliable solution for CRISPR-based projects. We provide access to a wide array of pre-validated vector backbones, including dual-sgRNA constructs, vectors with fluorescent markers, selection cassettes, and other specialized elements to support diverse research goals. To meet various research needs, we offer flexible delivery formats—from ready-to-use plasmid (library) and in vitro transcribed RNA to packaged viral particles (lentivirus, AAV, etc.). Each product undergoes rigorous quality control, including sequence verification, purity checks, and functional validation where applicable, ensuring high fidelity and consistency. Contact us to learn how our customized gRNA solutions can enhance your CRISPR research.
Reference
- Yuan G, Martin S, Hassan M M, et al. PARA: a new platform for the rapid assembly of gRNA arrays for multiplexed CRISPR technologies. Cells, 2022, 11(16): 2467. https://doi.org/10.3390/cells11162467 Distributed under Open Access license CC BY 4.0, without modification.
