Glycan Crystal Prediction Service

Unlocking the Glycome: How AI-Driven Molecular Dynamics is Defining the Future of Protein-Glycan Research

Are you currently facing complex carbohydrate heterogeneity, a lack of structural data for glycosaminoglycans (GAGs), or challenging binding site validation? Our One-Stop Glycan Crystal & Glycoprotein Crystal Analysis Services help you de-risk drug development, tune therapeutic specificity, and accurately characterize molecular binding through AI-driven molecular dynamics (MD) and specialized docking protocols.

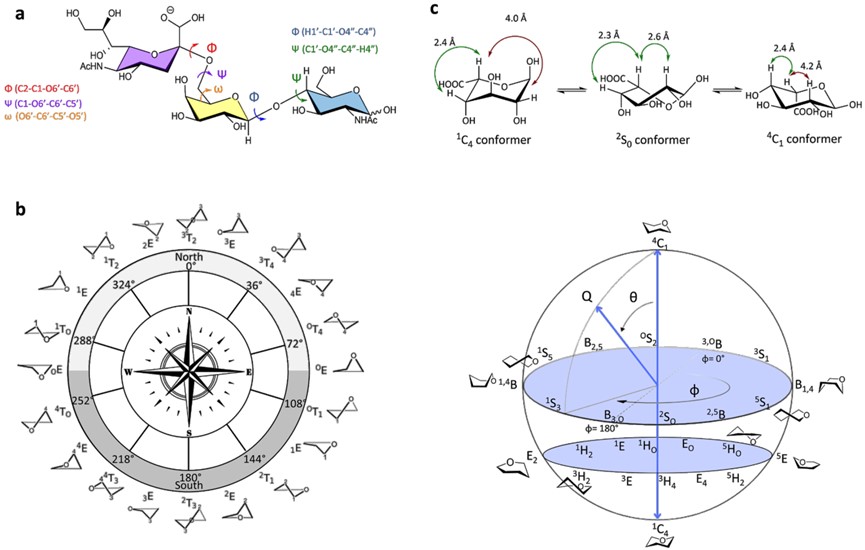

Carbohydrate conformational variability. (OA Literature)Fig.1 Conformational variability of glycans.1

Advance Protein-Glycan Research with Precision Structural Insights!

The glycome - comprising glycans and glycoconjugates - is exponentially more complex than the genome, driving critical processes from immunity to neurodegeneration. This molecular layer is defined by dynamic conformational states and intricate linkages, presenting formidable obstacles to standard X-ray or NMR structural analysis. Creative Biolabs' computational approach is essential for modeling this dynamic reality, enabling the discovery of new therapeutic targets. Creative Biolabs provides validated, atomic-level structural models and mechanistic data necessary for rational drug design targeting the glycosylation landscape. We deliver actionable intelligence that overcomes the limitations of traditional biophysical methods (NMR, X-ray, Cryo-EM), which often fail to resolve the dynamic nature of glycans.

Our service integrates sophisticated structural preparation, hierarchical docking, and multi-round refinement, maximizing accuracy and efficiency.

  • Step 1: System Curation and Preparation
    • Protein preparation: We start with the highest quality protein structure, we add all missing hydrogen atoms, and optimize the structure via minimization to ensure compatibility with the chosen force field.
    • Initial conformational sampling: We strategically replace bulky, nonpolar side chains in the binding region with alanine. This opens the surface for initial ligand sampling while preserving polar interactions.
    • Glycan model generation: The target GAG ligand is generated using accurate force fields.
  • Step 2: Site Identification
    • Full-surface scan: A single, optimized conformation of the GAG ligand is docked against the entire alanized protein surface. To rapidly scan all possible surface-binding regions, prioritizing those with the most favorable long-range electrostatic interactions. This significantly reduces the search space from the entire protein volume to a few promising electropositive cavities. Identification of top-ranked coarse binding regions.
  • Step 3: Optimization
    • Dynamic protein optimization: For the top-ranked coarse poses, the alanine residues are computationally replaced with their original bulky side chains (dealanization). The side-chain conformations for all residues in the binding site are then simultaneously optimized against the ligand using the algorithm. This creates a distinct, optimized protein conformation for each ligand pose.
    • Hierarchical scoring: We perform multiple rounds of scoring and minimization, focusing on Coulomb and short-range nonbond interactions. This procedure efficiently eliminates poses and ensures the final selection is highly energy-minimized.
  • Step 4: Mechanistic Validation via Molecular Dynamics
    • Validation and analysis: We track the stability of the complex, water-mediated interactions and the precise values of the glycosidic torsion angles. This data is compared against experimental constraints for external validation, providing the deepest possible insight into the system's true dynamics.

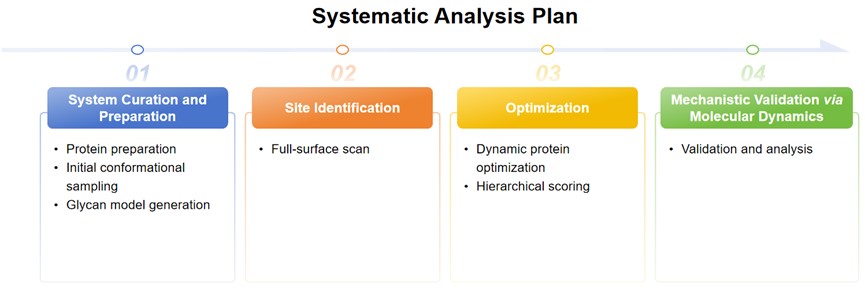

General workflow of the glycan crystal prediction service. (Creative Biolabs Original)

Creative Biolabs is your definitive partner in glycobiology R&D. We have unmatched technical advantages:

  • Validated accuracy: Our specialized docking methodology is validated against known GAG–protein crystal structures, guaranteeing predictive power often missing in generalized docking platforms.
  • Integrated AI and machine learning: We incorporate algorithms to predict glycan affinity and binding sites, focusing efforts on the most viable candidates.
  • Professional computer simulation: We predict which subtle mutations can switch or tune affinity.

FAQs

What is required to start a glycan crystal prediction project with Creative Biolabs?

To initiate a project, we primarily require the ID or coordinates of your target protein and the exact sequence and sulfation pattern of the glycan ligand (e.g., CS-E 6-mer). Any preliminary experimental data, such as mutagenesis results or a known binding region, can significantly accelerate the process.

How does Creative Biolabs' docking method handle the extreme flexibility of GAGs?

We use a multi-step, sophisticated approach. Initial docking is performed on a partially relaxed protein surface (alanized), followed by a fine-grained optimization step that includes full ligand flexibility and simultaneous protein side-chain optimization. This ensures we sample the full conformational space and predict the induced fit accurately.

We are developing a highly selective inhibitor. Can you test the impact of mutations in silico?

Definitely. Using our in silico mutagenesis service, we can substitute key binding residues to measure the predicted change in binding affinity for various glycan ligands. This allows you to prioritize which mutations to synthesize and test experimentally, saving significant time and resources.

Customer Review

Unlocking GAG Complexity
"Using Creative Biolabs' glycan crystal prediction service in our research has significantly improved our ability to resolve the highly charged, flexible binding of heparin to our target protein. The detailed residue-by-residue energy report was indispensable for our R&D mutations."- Dr. S**v, Senior researcher.

NMR Validation Made Easy
"Creative Biolabs' predicted coordinates for a complex N-glycan proved highly consistent with our preliminary data. The integration of MD trajectory analysis with experimentally derived constraints has significantly facilitated the final refinement of our NMR structure."- K**n, Project director.

Extended Services

Custom glycan synthesis

Reliable synthesis of the complex, sequence-defined glycosaminoglycans and N-/O-linked glycans required for experimental validation.

High-throughput ligand screening

Use our validated assay platforms to experimentally confirm the predicted binding affinities of your lead protein/glycan complex.

Molecular dynamics simulation

Dedicated long-timescale MD runs for complex protein systems (e.g., large membrane receptors) to fully capture all conformational substates.

Glycan Crystal and Glycoprotein Crystal analysis services

We provide professional crystal analysis services, including Optical Analysis, Property Analysis, Structural Analysis, Glycosylation Site Analysis, and other types of analysis services.

How to Contact Us

Creative Biolabs provides the critical structural and dynamic clarity required to harness the complexity of the glycome for therapeutic advancement. Our specialized, validated computational toolkit transforms challenging glycobiology data into actionable drug design strategies. Please contact our expert team today to discuss your project needs and begin your advanced structural analysis.

Reference

  1. Nieto-Fabregat, Ferran, et al. "Computational toolbox for the analysis of protein-glycan interactions." Beilstein Journal of Organic Chemistry 20.1 (2024): 2084-2107. Distributed under an Open Access license CC BY 4.0, without modification. https://doi.org/10.3762/bjoc.20.180
