Azide Reaction based Glycoprotein Conjugation Service

Jump to Section

Online Inquiry

Precision Bioconjugation for Advanced Research

Glycoproteins play an important role in biological and medical research. They are involved in cell signaling, immune response, and the occurrence of diseases. With the advancement of biotechnology, the modification and functionalization of glycoproteins are becoming more and more important. Among the many modification methods, glycoprotein binding services based on azide reaction have attracted widespread attention due to their high efficiency and selectivity. The azide reaction-based glycoprotein conjugation service leverages click chemistry, specifically the azide-alkyne cycloaddition, to create these vital biomolecules. This method offers unparalleled specificity and efficiency under mild conditions, making it ideal for sensitive biological applications. Our service supports the development of advanced vaccines, diagnostics, and targeted therapeutics by providing precisely engineered glycoconjugates. Our service ensures stable, site-specific conjugation, minimizing off-target reactions and preserving the biological activity of your valuable biomolecules. You can expect high yields of purified glycoconjugates, comprehensive characterization data, and expert support throughout your project.

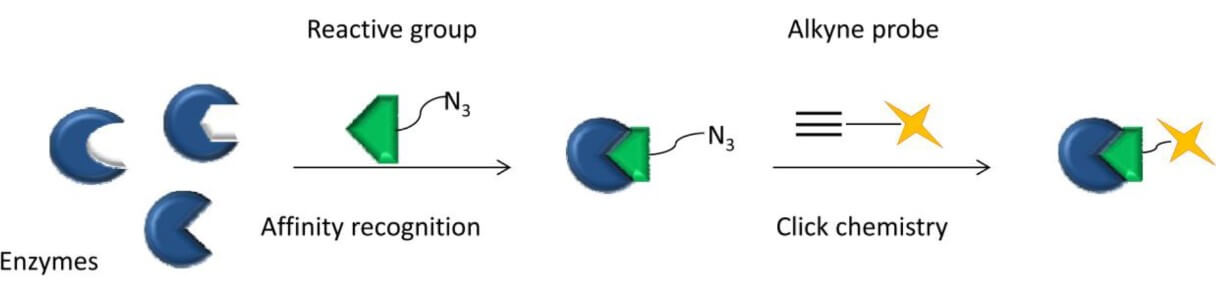

Fig. 1. Protein coupling strategy based on click chemistry. (OA Literature)Fig.1 Click chemistry-based protein coupling process.1

What Is the Glycoprotein Conjugation Principle?

Creative Biolabs' azide reaction-based glycoprotein conjugation service focuses on the precise and efficient covalent attachment of carbohydrate moieties or other azide-functionalized ligands to glycoproteins. The service is based on the principle of click chemistry to form a stable 1,2,3-triazole ring between the azide group and the alkyne group. The reaction is highly selective, occurring rapidly under physiological conditions without interfering with other biological functionalities, making them ideal for complex biomolecules like glycoproteins. Our services cover the entire spectrum from initial functionalization of the glycoprotein to the final purification and characterization of the glycoconjugate. There are two main variations we employ:

  • Copper(I)-Catalyzed Azide-Alkyne Cycloaddition (CuAAC): This is the most widely used click reaction due to its high efficiency, speed, and broad scope. A copper(I) catalyst facilitates the reaction, allowing it to proceed rapidly at room temperature in aqueous solutions. While highly efficient, careful consideration is given to copper toxicity in certain biological applications, and removal of the catalyst is part of our purification process.
  • Strain-Promoted Azide-Alkyne Cycloaddition (SPAAC): This "metal-free" click reaction utilizes strained cyclooctynes that react with azides without the need for a copper catalyst. The inherent ring strain of the alkyne accelerates the reaction. SPAAC is particularly valuable for in vivo applications or when copper toxicity is a concern, as it avoids the introduction of metal ions.

Both principles allow for the formation of a robust, covalent bond between the glycoprotein and the ligand, under conditions that are compatible with the sensitive nature of biological molecules.

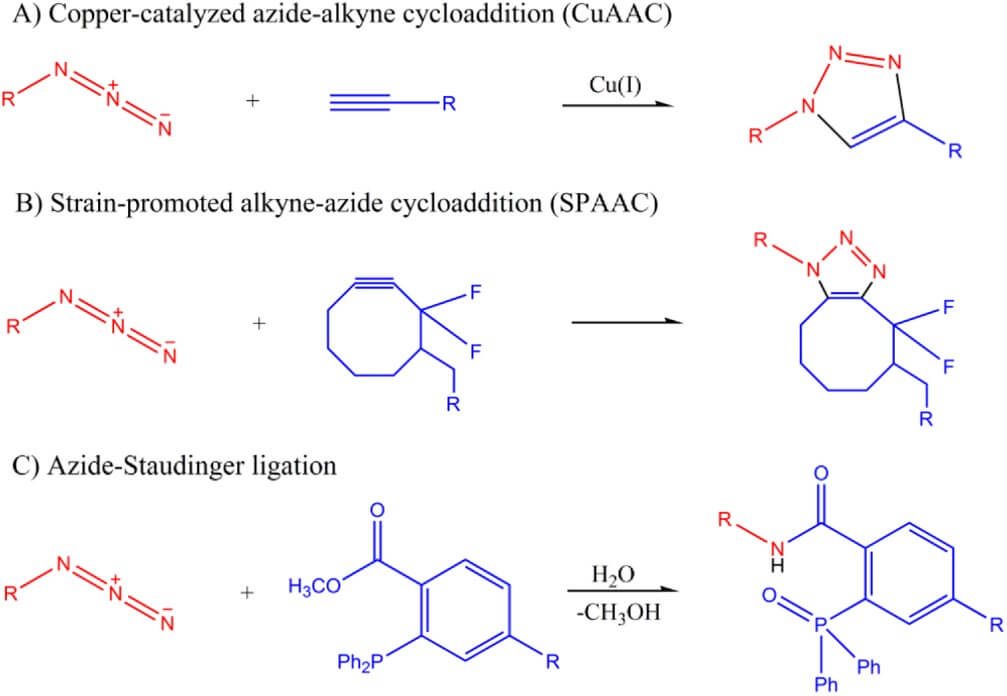

Fig. 2. Principles of click chemistry in glycobiology. (OA Literature)Fig.2 Common types of click chemistry in glycobiology.1

How to Provide Azide Reaction based Glycoprotein Conjugation Service?

Our service is provided through a series of well-defined, sequential processes to ensure high-quality outcomes.

Project Consultation and Design

We begin with a detailed consultation to understand your specific research goals, the nature of your glycoprotein and ligand, desired conjugation ratio, and downstream applications. Our experts assess the feasibility of the project, considering the properties of your biomolecules and the most suitable click chemistry strategy. We then design a custom conjugation protocol.

Glycoprotein Functionalization

  • Azide/Alkyne tag introduction: If your glycoprotein does not inherently possess an azide or alkyne handle, we perform the necessary chemical modification. This could involve:
    • Chemical derivatization: Introducing azide or alkyne groups onto specific amino acid residues (e.g., lysine, cysteine) or sugar moieties on the glycoprotein using appropriate linkers.
    • Metabolic glycoengineering: For glycoproteins expressed in cell culture, we can incorporate azide-functionalized sugars into the cellular machinery, leading to the in situ biosynthesis of glycoproteins containing azide tags within their glycan structures. This offers highly site-specific labeling on the carbohydrate portion.
  • Purification of functionalized glycoprotein: The functionalized glycoprotein is then purified to remove excess reagents and ensure it is ready for the conjugation step.

Ligand Functionalization

If your ligand (e.g., a carbohydrate, small molecule, or peptide) is not already pre-functionalized with the complementary azide or alkyne group, we perform this step. This ensures both components are ready for the click reaction.

Click Conjugation Reaction

The functionalized glycoprotein and ligand are mixed in precisely calculated molar ratios under optimized reaction conditions. The reaction progress is monitored using analytical techniques to ensure efficient conjugation.

Purification and Characterization of Glycoconjugate

The reaction mixture is subjected to rigorous purification to isolate the desired glycoconjugate, including size exclusion chromatography (SEC), concentration, and chromatography. The resulting glycoconjugates are then fully characterized by advanced analytical techniques.

Which Glycoproteins Are Suitable for Azide Reaction based Glycoprotein Conjugation Service?

A wide range of glycoproteins is suitable for our azide reaction-based glycoprotein conjugation service. The key is the presence or engineered introduction of either an azide or alkyne handle on the glycoprotein, which then serves as a precise docking site for the complementary functionalized ligand. This often involves:

  • Naturally occurring glycoproteins: These can be chemically modified to introduce azide or alkyne tags, for example, by modifying lysine residues or carboxyl groups with appropriate linkers.
  • Recombinant glycoproteins: These are particularly well-suited as they can be metabolically engineered in expression systems (e.g., mammalian cells) to incorporate azide-containing sugars (e.g., azido sugars like Ac4ManNAz or Ac4GalNAz) into their glycan structures. This allows for site-specific labeling of the glycans themselves.
  • Glycoproteins for vaccine development: Protein carriers are crucial for glycoconjugate vaccines to enhance immunogenicity. Our service can precisely link carbohydrate antigens (often pre-functionalized with an alkyne or azide) to these protein carriers, forming stable and effective vaccine candidates.

Creative Biolabs stands at the forefront of bioconjugation technology, offering unparalleled expertise in azide reaction-based and Aldehyde Reaction-based glycoprotein conjugation. Our commitment to precision, efficiency, and customer satisfaction sets us apart. Our methods are designed to be highly specific, yielding conjugates with preserved biological activity and minimal impurities, which is crucial for sensitive applications like vaccine development and diagnostics. Please contact us to unlock more services.

FAQs

Q1: What types of glycoproteins can Creative Biolabs functionalize for the azide reaction-based glycoprotein conjugation service?

A1: We can functionalize a broad range of glycoproteins, including those with accessible lysine residues, carboxyl groups, or those that can be metabolically engineered to incorporate azide-containing sugars into their glycan structures. Our team will assess your specific glycoprotein to determine the most suitable functionalization strategy. Feel free to discuss your unique glycoprotein with our experts!

Q2: What is the typical purity of the glycoconjugates delivered by Creative Biolabs?

A2: We strive for the highest purity levels for all our conjugates. Through rigorous purification steps like size-exclusion chromatography and comprehensive characterization, we typically deliver glycoconjugates with purity exceeding 95%, ensuring optimal performance in your downstream applications. Detailed purity data is always provided in our certificate of analysis.

Q3: Can Creative Biolabs assist with the design of the azide or alkyne functionalized ligand?

A3: Absolutely! While clients typically provide their ligand, our scientific team offers guidance and consultation on the design and synthesis of suitable azide or alkyne functionalized ligands to ensure optimal compatibility and reactivity with your glycoprotein. We're here to help you achieve the best possible conjugation outcome.

Customer Review

Unmatched Specificity and Yield
"Using Creative Biolabs' azide reaction-based glycoprotein conjugation service in our vaccine research has significantly improved the specificity of our antigen-carrier conjugation, leading to higher yields of functional glycoconjugates compared to traditional methods. Their expertise ensured our sensitive glycoprotein remained active." - Ms. M. Mil***r.

Critical for Glycobiology Research
"The azide reaction-based glycoprotein conjugation service from Creative Biolabs provided us with custom-labeled glycoproteins essential for studying receptor-ligand interactions. Their ability to handle complex carbohydrate structures and deliver high-purity conjugates was invaluable, allowing us to gain deeper insights into cellular processes." - Prof. S. Moo***e.

Reference

  1. Zhang, Xiu, and Yan Zhang. "Applications of azide-based bioorthogonal click chemistry in glycobiology." Molecules 18.6 (2013): 7145-7159. DOI: 10.3390/molecules18067145. Distributed under an Open Access license CC BY 3.0, without modification.
