Hybrid Vector Design Guide
Introduction
Hybrid vector design refers to a research strategy in which functional elements from more than one vector platform are combined to address a limitation that is difficult to solve with a single delivery system. In gene delivery research, this can mean pairing the efficient cell entry of an adenoviral platform with a retroviral or lentiviral integration module, combining parvoviral genomes with helper functions, or using separate vector components to stage delivery, expression, and persistence. This guide explains how hybrid designs are framed, what design questions matter, and how researchers can connect vector architecture with experimental readouts. It also points readers toward custom viral vector development resources when a project moves from conceptual design to construction and analytical planning.

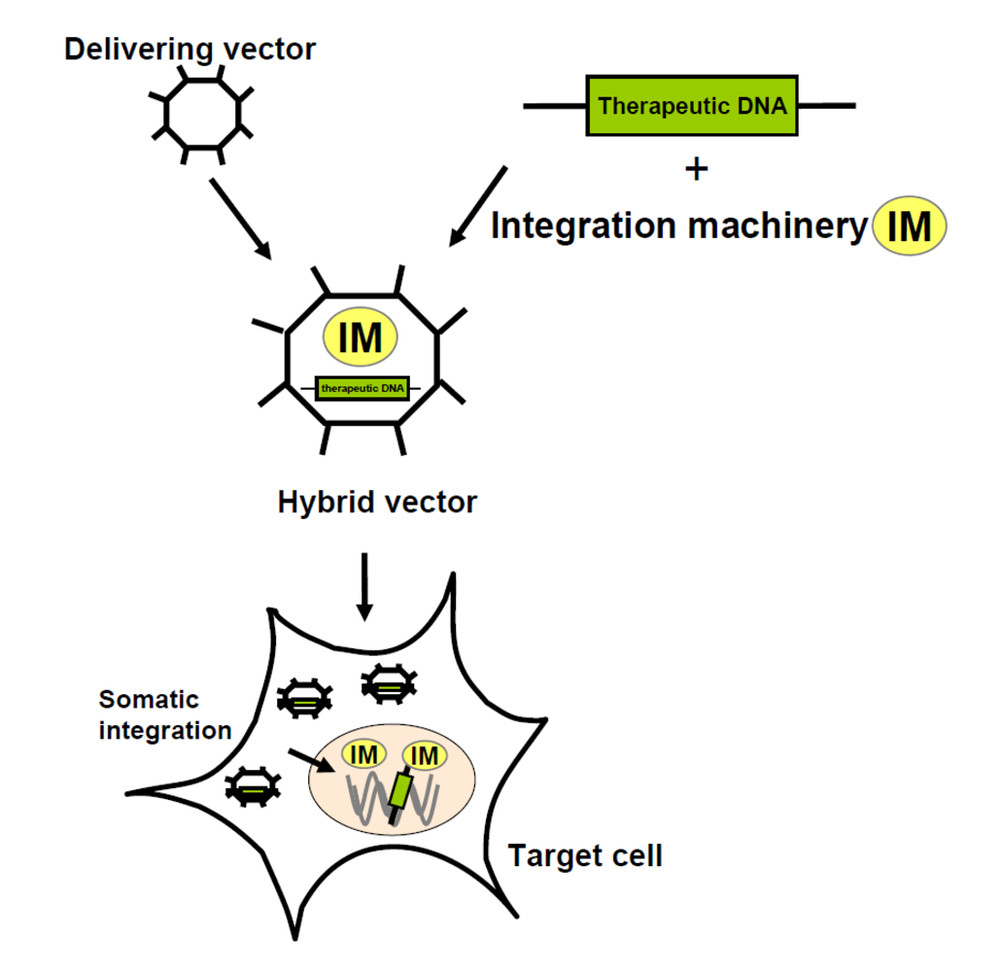

Figure 1. Principle of integrating viral hybrid vectors. Viral hybrid vectors combine efficient transduction rates of viruses (delivering vector) with improved genetic elements for stable maintenance of therapeutic DNA by somatic integration into the host genome of the target cell.1
Why Hybridize a Vector System?
Hybridization should start from a specific biological problem rather than from the appeal of combining technologies. Adenoviral vectors can provide strong delivery and high-level transient expression, while retroviral and lentiviral systems can support stable genetic marking or long-term expression through integration. AAV-based systems offer small genomes and comparatively durable expression in many settings but face packaging limits and tropism constraints. Hybrid designs attempt to decouple these properties so that entry, genome maintenance, expression control, or integration can be optimized as separate variables.
A useful design question is not 'which vector is best,' but 'which vector function must be borrowed, which function must be restrained, and which function must be measured independently?' For example, an Ad/RV hybrid concept may use adenoviral delivery to place retroviral components into initially transduced cells, which then produce retroviral particles locally. A lentivirus/adenovirus hybrid can be used experimentally to deliver components required for lentiviral vector production or stable transfer. These concepts are powerful but require careful attention to replication competence, helper contamination, recombination, and integration-site consequences.
Core Design Variables in Hybrid Vector Architecture
A hybrid vector is best viewed as a modular system. Each module contributes a benefit, but each also introduces a risk that must be controlled by design and readout. The following variables usually determine whether a hybrid strategy is reasonable for a research program.
- Delivery module: defines which cells are initially reached and how efficiently vector genomes or helper functions enter the target population.
- Persistence module: determines whether the genetic payload remains episomal, integrates, is self-limited, or is removed after a defined function is completed.
- Expression module: includes promoter, enhancer, polyadenylation, insulator, miRNA-regulatory, inducible, or cell-state-responsive elements.
- Safety module: includes deleted viral genes, split helper systems, self-inactivating long terminal repeats, replication-competent virus assays, and molecular identity checks.
- Readout module: links the design to measurable outcomes such as transduction efficiency, vector copy number, integration profile, payload expression, and off-target cell entry.
| Design choice | Scientific purpose | Common readouts |
|---|---|---|
| Adenoviral delivery shell or helper | Increase initial gene delivery or helper-function delivery | Transduction percentage, dose response, helper-virus carryover, innate-response markers |
| Retroviral or lentiviral integration module | Enable stable marking or durable expression | Vector copy number, integration-site analysis, insertional risk assessment |
| AAV or parvoviral genome element | Support compact episomal or hybrid persistence strategies | Genome integrity, concatemer status, expression durability, packaging efficiency |
| Inducible or tissue-restricted cassette | Reduce expression outside the intended context | Promoter leakage, induction range, cell-type specificity, payload potency |
| Self-limiting or self-deleting element | Limit persistence of auxiliary functions | Residual vector sequence, excision efficiency, functional loss after deletion |
Hybrid Vector Selection Guide
A selection guide helps avoid premature commitment to a complex platform. The strongest rationale for hybridization appears when a single vector cannot simultaneously satisfy entry, capacity, persistence, and safety requirements. In early research, the design should include a simpler benchmark vector, a negative control, a no-helper or no-envelope control when relevant, and an analytical plan that separates delivery efficiency from long-term expression.
| Research goal | Hybrid design logic | Design caution |
|---|---|---|
| High initial delivery plus local spread | Ad/RV or AdRCR-like concept can use adenoviral entry to initiate retroviral vector production | Must evaluate replication competence, tumor or target restriction, and secondary vector kinetics |
| Stable gene addition in difficult cells | Lentiviral integration combined with optimized envelope or delivery support | Integration profile and vector copy number are as important as expression level |
| Large or staged payload delivery | Dual or multi-vector approach can divide functions across components | Reconstitution efficiency, stoichiometry, and unwanted recombination need controls |
| Transient editing or recombinase delivery | Non-integrating or self-limiting carrier can deliver a genome-modifying enzyme | Persistent nuclease or recombinase expression may increase off-target or rearrangement risk |
| Cell-state-restricted expression | Regulated promoter, miRNA detargeting, or inducible cassette can be added to a viral backbone | Leakiness and silencing should be measured in relevant primary cells, not only easy cell lines |
Study Design and Analytical Controls
Hybrid vectors can produce misleading results if transduction, expression, and persistence are not measured separately. A strong study design should include time-course sampling, dose escalation, molecular identity checks, and orthogonal readouts. For integrating designs, vector copy number alone does not describe risk; integration-site distribution, clonal skewing, enhancer activity, and payload function all matter. For adenoviral helper-based designs, residual helper activity and inflammatory responses can influence interpretation even when payload expression appears strong.
- Use a single-platform comparator to show what the hybrid component adds.
- Include component-dropout controls to identify which module drives the observed phenotype.
- Measure both early entry and later expression persistence so that delivery and maintenance are not confused.
- Add replication-competent virus and helper-virus assays when a design uses viral structural or helper elements.
- Plan integration-site or episomal-status analysis before interpreting stable expression as a therapeutic advantage.
When the design includes adenoviral and retroviral functions, Ad/RV hybrid vector construction should be considered a high-complexity research build rather than a routine vector swap. Component compatibility, particle production, target-cell permissiveness, and biosafety testing all influence whether the final system can answer the biological question. The same logic applies to other hybrid concepts: the design must be judged by whether it creates a cleaner experiment, not merely a more complicated vector.
Advantages, Limitations, and Failure Modes
The advantage of hybrid vector design is flexibility. It lets researchers ask whether efficient delivery can be separated from long-term persistence, whether tissue targeting can be separated from expression control, and whether auxiliary functions can be limited after they have served their purpose. The limitation is that every added module increases the number of variables that can fail. Low functional titer, recombination between related sequences, promoter interference, payload instability, and cell-type-dependent silencing are common reasons why a concept that appears attractive on paper becomes difficult experimentally.
| Failure mode | Likely cause | Practical mitigation |
|---|---|---|
| High entry but weak long-term signal | Payload silencing, episomal loss, or low integration frequency | Add time-course expression, VCN, promoter comparison, and episomal/integrated DNA analysis |
| Unexpected cell entry | Broad tropism from envelope or capsid component | Compare alternative pseudotypes, include non-target cells, and quantify off-target transduction |
| Low recoverable titer | Oversized genome, toxic payload, unstable helper configuration | Reduce cassette size, test payload variants, and evaluate production-cell toxicity |
| Safety signal in culture | Replication-competent particles or helper carryover | Use split helper systems, identity assays, RCA/RCL testing, and additional purification |
| Clonal dominance after integration | Integration near growth-control genes or selective payload effect | Perform integration-site analysis and functional clonal tracking |
Published Data
Case 1: Dual AAV Vector System for Usher Syndrome Type 1B Gene Therapy
This 2023 study addresses the challenge of delivering the large MYO7A gene (~7.5 kb), which significantly exceeds the packaging capacity of a single Adeno-Associated Virus (AAV), for the treatment of Usher syndrome type 1B (USH1B). Researchers engineered a dual AAV8 vector system that splits the MYO7A expression cassette into two distinct halves. Following subretinal injection of this clinical-grade dual AAV8.MYO7A in humanized mouse models, the vectors successfully reconstituted the full-length gene in vivo, leading to a significant amelioration of retinal defects.
Furthermore, the team comprehensively evaluated the pharmacokinetics, biodistribution, and safety of this dual vector system in non-human primates. This overlapping/splicing hybrid strategy has directly paved the way for clinical translation, with the resulting therapy (AAVB-081) advancing to Phase I/II clinical trials (LUCE-1). This milestone underscores the successful transition of dual AAV vector technologies from preclinical proof-of-concept to active commercial and clinical development for large-gene retinal dystrophies.

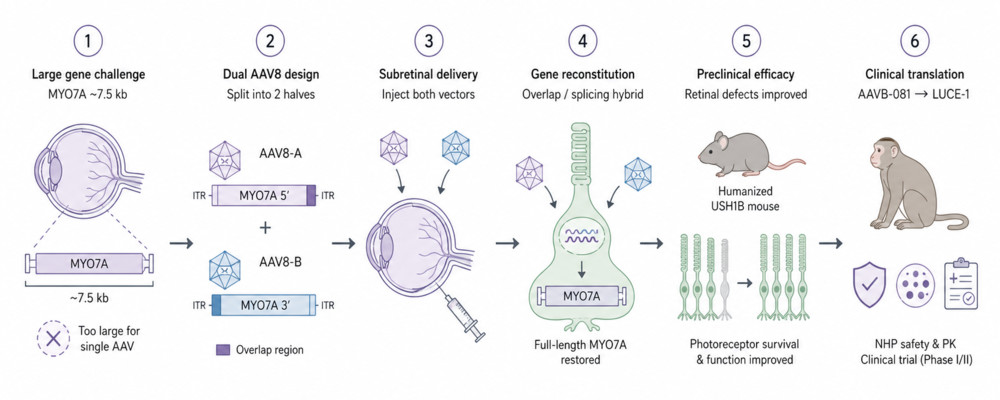

Figure 2. Dual AAV8 vector system for USH1B gene therapy.
Frequently Asked Questions
When is a hybrid vector design justified?
It is justified when the research question requires properties that one vector platform cannot provide alone, such as high initial delivery combined with stable integration or staged delivery of separate functions.
Are hybrid vectors automatically safer than conventional viral vectors?
No. Hybrid designs may improve one limitation while adding new risks such as recombination, helper carryover, integration-site concerns, or unexpected tropism. Safety depends on design and testing.
What should be measured first in a hybrid vector feasibility study?
Early feasibility usually measures vector identity, titer, transduction efficiency, payload expression, helper contamination, and whether the intended persistence mechanism is actually present.
Can hybrid vector systems be used for non-dividing cells?
Some hybrid concepts can be designed for non-dividing cells if the delivery and persistence modules are compatible, but the final answer depends on the target cell, vector entry route, and payload.
How should researchers compare hybrid and non-hybrid designs?
A good comparison includes a single-platform vector, component-dropout controls, equalized input dose, time-course expression, and relevant safety readouts.
Overview of What Creative Biolabs Can Provide
Projects involving retroviral, lentiviral, adenoviral, or hybrid-vector concepts often require coordinated decisions about vector architecture, envelope selection, expression control, titer, identity, and safety readouts. Creative Biolabs can help researchers connect the scientific question with a practical vector-design and analysis plan while keeping service support aligned with the intended research stage.
| Research Need | Related Creative Biolabs Support | How It Connects to the Current Resource Topic |
|---|---|---|
| Complex delivery architecture requiring viral backbone selection | Custom Viral Vector Development | Supports early decisions on backbone, payload, promoter, and analytical plan for multi-component vector concepts. |
| Ad/RV hybrid concept testing | Adenoviral/Retroviral Hybrid Vector Construction | Directly matches hybrid designs that combine adenoviral delivery features with retroviral vector functions. |
| Adenoviral delivery component design | Adenoviral Vector Development Service | Useful when adenoviral entry, helper function, or high-level transient expression is part of the hybrid strategy. |
| Lentiviral or retroviral persistence module | Lentiviral Vector Development Service | Connects stable transduction, integration, and payload expression planning with vector construction. |
| Integration-focused lentiviral architecture | Lentiviral Vector Design for Regulated Integration and Expression | Relevant when durable expression, VCN control, and integration-linked readouts are central to the design. |
| Non-integrating or reduced-integration comparison | Integration-Deficient Lentiviral Vector Service | Provides a comparator or alternative when transient delivery is preferred over stable integration. |
| Vector identity, titer, and safety testing | Viral Vector Analysis Service | Supports analytical confirmation that the constructed hybrid system matches its intended design. |
| Lentiviral safety readouts | Safety Determination of Lentiviral Vector Service | Relevant when hybrid designs contain lentiviral or retroviral components that require RCL-related assessment. |
For projects that require customized planning beyond the options listed above, researchers can contact us today to discuss the vector architecture, target cells, payload requirements, and safety readouts that best fit the study goal.
References
- Müther N, Noske N, Ehrhardt A. Viral hybrid vectors for somatic integration-are they the better solution? Viruses, 2009, 1(3): 1295-1324. https://doi.org/10.3390/v1031295 Distributed under Open Access license CC BY 4.0, with modification.
- Ferla R, Dell'Aquila F, Doria M, et al. Efficacy, pharmacokinetics, and safety in the mouse and primate retina of dual AAV vectors for Usher syndrome type 1B. Molecular Therapy Methods & Clinical Development, 2023, 28: 396-411. 10.1016/j.omtm.2023.02.002
