Lentiviral Vector Safety Design
Introduction
Lentiviral vector safety design is the deliberate engineering of vector architecture, packaging separation, integration behavior, expression control, and testing strategy to reduce foreseeable risks. Safety is not a single feature added at the end of production. It begins with the transfer plasmid, continues through envelope and packaging choices, and is verified through identity, titer, replication-competent lentivirus, integration, and biological readouts.

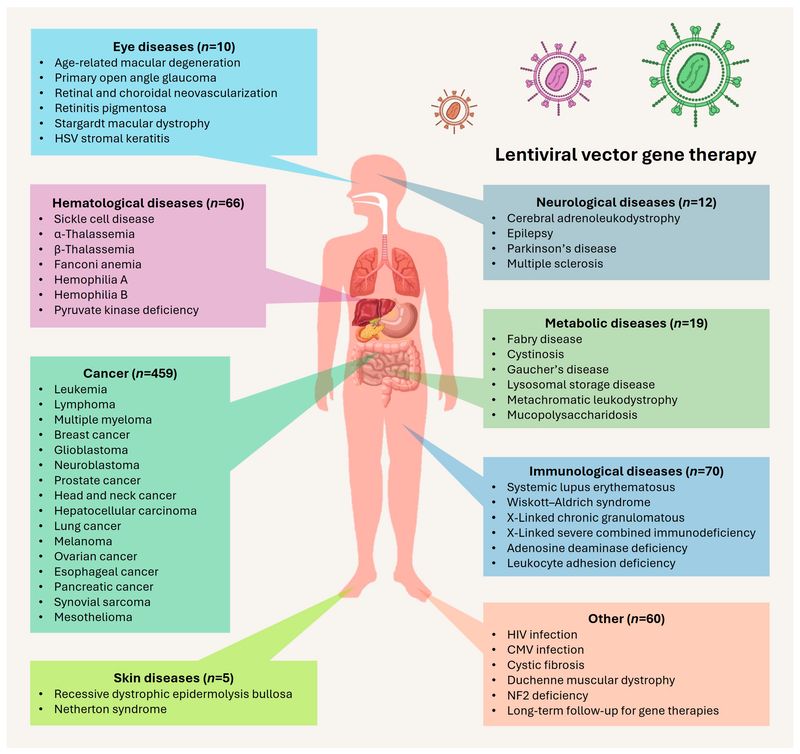

Figure 1. Clinical applications of lentiviral vectors in major human diseases.1,3
Table 1. Basic Properties of Lentiviral Vectors.
| Feature/claim | Example |
|---|---|
| Transduction of nondividing cells | Neurons, minimally stimulated hematopoietic stem cells (HSC) |
| Faithful transmission of complex sequences that tend to be unstable in conventional retroviral vectors, exploiting Rev-RRE interaction | Globin expression cassettes |
| Large and flexible cargo | Globin cassettes, reprogramming cassettes, bidirectional design, co-expression of shRNAs, or utilization of miRNA-targeting sequences for post-transcriptional specification of gene expression |
| Low likelihood of gene silencing | Studies in transplanted hematopoietic stem cells, often conducted at relatively high copy number |
| Reduced genotoxicity | In comparison to gammaretroviral LTR vectors |
| Pseudotyping with glycoproteins allowing cell-targeting, some of which further promote transduction of resting cells | RD114-TR, GALV-TR, measles virus derivatives |
Safety Should Be Defined by Risk Layer
A safe lentiviral vector design does not mean that all risk disappears. It means that the vector has been engineered and tested so that each major risk has a defined control and a measurable readout.
| Risk Layer | Design Question | Common Control Strategy |
|---|---|---|
| Replication competence | Can vector components recombine into replication-competent virus? | Split packaging systems, minimized overlap, RCL testing |
| Insertional biology | Could integration alter nearby gene regulation? | SIN LTRs, promoter selection, integration-site analysis |
| Off-target exposure | Could non-target cells receive or express the payload? | Pseudotyping, promoter restriction, miRNA detargeting |
| Payload activity | Could the transgene, shRNA, or editing tool cause toxicity? | Dose control, inducible expression, off-target and viability assays |
| Manufacturing-related impurities | Could residual DNA, host-cell proteins, or inactive particles confound results? | Purification and release testing |
Backbone and Packaging Architecture
Modern lentiviral systems reduce risk by separating the transfer genome from helper functions and removing unnecessary viral genes. This makes packaging architecture a first-line safety decision rather than only a production variable.
Self-inactivating transfer vectors

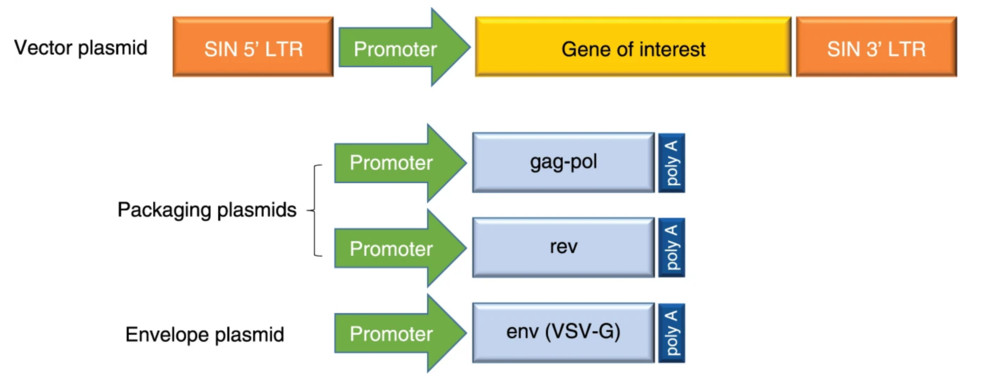

Figure 2. Third-generation lentiviral vector.2,3
- SIN designs include a deletion in the U3 region of the 3 LTR, which is copied to the 5 LTR after reverse transcription.
- The goal is to reduce LTR promoter activity after integration and rely on an internal promoter to drive the payload.
- SIN design reduces one important risk layer but does not remove risks linked to the internal promoter, enhancer effects, or payload activity.
Packaging separation and helper design
- Third-generation or multi-plasmid systems separate packaging functions to lower recombination risk.
- Custom production planning should confirm which components are supplied in trans and which sequences are present in the transfer vector.
- Safety determination must match the actual packaging design rather than rely on generic assumptions.
Integration Risk and Alternatives
Lentiviral integration supports durable expression, which is a key advantage for many ex vivo gene addition applications. The same property also creates a need to evaluate insertional biology and clonal behavior when long-term modification matters.
- Promoters and enhancers should be chosen with attention to strength, tissue context, and potential effects on nearby genes.
- Integration-site analysis can be relevant when modified cells are expanded, selected, or used in long-term studies.
- Reduced-integration designs can be considered when stable genomic insertion is not needed for the research objective.
- Self-deleting architectures may be useful when transient expression followed by vector backbone removal is the desired logic.
| Design Option | When It Helps | Safety Interpretation |
|---|---|---|
| Integrating SIN vector | Durable gene addition or stable cell engineering | Requires integration-aware readouts and clonal monitoring when relevant |
| Integration-deficient vector | Transient expression, donor-template delivery, or short-term editing support | Reduces integration but may lower persistence of expression |
| Self-deleting vector | Transient program with planned excision | Requires evidence of deletion efficiency and residual vector analysis |
| Inducible expression vector | Payloads with dose or timing sensitivity | Requires leakiness and induction-window testing |
Expression Control as a Safety Feature
Safety design should consider not only where the vector integrates but also where, when, and how strongly the payload is expressed. This is especially important for cytokines, receptors, nucleases, shRNAs, or transcriptional regulators.
Spatial restriction
- Tissue-specific promoter control can reduce expression outside the intended cell type after transduction.
- miRNA detargeting can suppress transcripts in unwanted lineages and support safer expression profiles.
- Spatial restriction must be validated using both target and off-target cells rather than inferred from promoter names alone.
Temporal and dose control
- Inducible vector systems can reduce continuous exposure when a payload is biologically potent.
- Weak basal leakiness may still matter when the payload is toxic or self-amplifying.
- Gene-editing payload control should include guide expression, nuclease duration, and off-target analysis.
Analytical Readouts for a Safety Design Package
A safety claim should be supported by assays that match the vector design and intended use. Physical titer alone cannot establish safety, and one negative RCL result cannot answer every biological question.
| Readout | Purpose | Design Link |
|---|---|---|
| Vector identity | Confirms transfer cassette and critical sequence elements | Prevents misinterpretation caused by sequence errors |
| Functional and physical titer | Connects vector amount to biological effect | Supports dose normalization and comparability |
| RCL testing | Evaluates replication-competent lentivirus risk | Matches packaging-system safety logic |
| Vector copy number | Estimates average genomic vector burden in modified cells | Supports integration and potency interpretation |
| Integration-site analysis | Evaluates insertion distribution and clonal behavior | Important for long-term or expanded cell products |
| Cell viability and function | Shows whether modification alters cell quality | Connects vector engineering to biological consequence |
Common Safety Design Mistakes
Many safety problems arise from treating a lentiviral vector as a generic delivery reagent. The design should instead be matched to payload biology, target-cell context, and the downstream decision the data will support.
- Using a very strong promoter for a payload that is toxic, immune-active, or dose sensitive.
- Assuming that a self-inactivating backbone removes the need for promoter and integration evaluation.
- Comparing vectors by volume rather than normalized physical and functional titer.
- Calling a design targeted without off-target cell controls.
- Skipping analytical release logic before interpreting long-term transgene expression.
Safety Priorities by Project Type
Safety design should be scaled to the project type. A reporter study in a short-lived cell line does not need the same package as a long-term HSC modification program, but both should have a reasoned safety logic.
| Project Type | Primary Safety Focus | Useful Evidence |
|---|---|---|
| Basic reporter or screening vector | Identity, titer, RCL awareness, cell viability | Sequence confirmation, functional titer, mock and dose controls |
| Stable engineered cell line | Expression stability and insertional effects | Vector copy number, growth behavior, phenotype retention |
| Primary-cell modification | Cell function, viability, vector burden | VCN, potency readout, viability and phenotype markers |
| Gene-editing support vector | Duration of nuclease or editor exposure | Editing efficiency, off-target analysis, transient-expression logic |
| In vivo feasibility vector | Biodistribution and off-target exposure | Tissue panels, route-specific controls, safety assays |
- The acceptable level of evidence depends on whether the vector supports discovery, preclinical feasibility, or translational planning.
- A safety package should be upgraded whenever the model becomes more clinically relevant or the modified cells are expanded longer.
- Assay selection should be revisited when the promoter, envelope, payload, or integration status changes.
How to Build a Safety-Oriented Study Plan?
A safety-oriented study plan should connect design choices to evidence. The plan should not simply list assays; it should explain which risk each assay addresses and how the result will affect the next design decision.
Define the intended use before choosing assays
- For short-term in vitro studies, the key questions may be identity, functional titer, viability, and absence of replication-competent virus.
- For expanded primary cells, vector copy number, insertional profile, and cell-function preservation become more important.
- For in vivo or translational studies, biodistribution, target-cell restriction, immune exposure, and long-term expression stability should be planned early.
- If editing tools are delivered, nuclease duration and guide-related off-target analysis should be treated as part of vector safety, not a separate afterthought.
Use decision gates rather than isolated tests
- A vector should not move from pilot to expanded testing until identity and titer data are internally consistent.
- A promoter change should trigger reassessment of expression strength, target-cell function, and possible off-target expression.
- A switch from integrating to integration-deficient design should trigger new potency and persistence expectations.
- A new production batch should be linked to release testing so that biological differences are not confused with batch quality.
| Decision Gate | Evidence Needed | Possible Action |
|---|---|---|
| Before biological interpretation | Identity, physical titer, functional titer | Normalize dose or remake the vector |
| Before long-term culture | Vector copy number, viability, expression stability | Adjust promoter, MOI, or selection strategy |
| Before in vivo translation | Biodistribution logic, RCL, immune and tissue exposure readouts | Modify envelope, route, or expression restriction |
| Before comparing candidates | Same assay window and normalized vector input | Rank candidates by function and safety margin |
Published Data
Published lentiviral vector safety studies show how safety is built from multiple design layers. Zufferey and colleagues described self-inactivating lentiviral vectors with a U3 deletion intended to reduce LTR promoter activity after integration, providing an early foundation for safer vector architecture. Dull and colleagues reported a third-generation lentiviral system with split helper functions and conditional packaging elements to reduce the likelihood of replication-competent vector formation. These studies are useful for this Resource because they show that safety design is not one assay or one plasmid feature; it is a combination of backbone architecture, packaging separation, expression control, and analytical verification.
Frequently Asked Questions
Q: What is the most important safety feature of a lentiviral vector?
A: There is no single most important feature for all projects. Self-inactivating LTRs, split packaging, RCL testing, promoter selection, integration analysis, and payload-specific controls each address different risk layers.
Q: Do self-inactivating lentiviral vectors still integrate?
A: Yes. SIN vectors are designed to reduce LTR promoter activity after integration, but they can still integrate unless they are also engineered as integration-deficient vectors.
Q: When should integration-deficient lentiviral vectors be considered?
A: They may be considered when transient expression is sufficient, when the vector is used to support genome editing, or when durable insertion is not required for the study objective.
Q: Why is vector copy number important?
A: Vector copy number estimates the average number of vector copies per cell and helps interpret potency, insertional burden, and comparability between modified cell populations.
Q: Does pseudotyping affect safety design?
A: Yes. Envelope choice affects which cells can be exposed or transduced. Broad envelopes, retargeted envelopes, and tissue-oriented pseudotypes create different exposure and off-target questions.
Overview of What Creative Biolabs Can Provide
Creative Biolabs can help researchers translate lentiviral vector concepts into design, production, characterization, and risk-control plans. The most relevant support depends on whether the project challenge is envelope selection, target-cell restriction, expression control, safety testing, or scalable preparation of vector material for downstream studies.
| Research Need | Related Creative Biolabs Support | How It Connects to the Current Resource Topic |
|---|---|---|
| Overall lentiviral safety planning | Lentiviral Vector Design for Regulated Integration and Expression | Connects integration behavior and expression control to project-specific risk management. |
| Reduced genomic insertion needs | Integration-Deficient Lentiviral Vector Service | Supports designs where transient or lower-integration delivery is preferred. |
| Transient expression and backbone removal | Self-Deleting Lentiviral Vector Service | Adds a planned self-deletion logic to safety-oriented vector design. |
| Payload timing control | Inducible Vector Systems Design for Lentiviral Vector | Supports vectors where expression should be activated only under defined conditions. |
| Safety assay planning | Safety Determination of Lentiviral Vector Service | Supports RCL, vector characterization, and safety evaluation logic. |
| Titer and dosing interpretation | Lentiviral Vectors Titration Service | Connects vector amount to biological and safety interpretation. |
Researchers can contact us today to discuss vector design priorities, target-cell context, and the level of analytical evidence needed before moving a lentiviral vector project forward.
