Viral Vector Selection by Payload Size
Introduction
Viral vector selection by payload size begins with the full expression cassette, not only the coding sequence. Promoter, enhancer, intron, untranslated regions, tags, reporter elements, selection markers, polyadenylation signal, guide cassette, donor template, and vector-specific sequences all contribute to practical packaging behavior. This resource explains how payload size influences AAV, self-complementary AAV, lentiviral, adenoviral, HSV, vaccinia, baculovirus, and other systems, while using payload-aware viral vector construction as a planning principle for early design review.
Capacity Is a Practical Range
Packaging capacity is often described as a fixed limit, but practical performance changes gradually as a cassette approach or exceeds the preferred range. Oversized constructs can reduce yield, increase empty or partial particles, promote recombination, reduce infectious titer, or create expression variability. Undersized or highly repetitive genomes can also behave unpredictably. Therefore, payload-size selection should be based on full cassette length, sequence stability, production behavior, analytical evidence, and the biological readout, not simply on a published capacity number.
| Vector direction | Payload planning logic | Strengths | Size-related caution |
|---|---|---|---|
| AAV | Best for compact cassettes with disciplined regulatory design | In vivo expression, many tissue-directed options | Oversized genomes may reduce packaging quality and increase truncation risk |
| Self-complementary AAV | Trades capacity for faster second-strand-independent expression | Fast onset for small cassettes | Practical payload is much smaller than single-stranded AAV |
| Lentiviral vector | Supports larger and multicomponent ex vivo cassettes than AAV | Stable delivery in many engineered cell models | Large or complex inserts can reduce titer and expression balance |
| Adenoviral vector | Useful for larger transient-expression or immune applications | High expression and broader payload flexibility | Immunogenicity and construct stability must be managed |
| HSV, vaccinia, baculovirus, other systems | Considered when payload is a dominant constraint or biology fits the platform | Large-payload or specialized research applications | Manufacturing, host range, and biosafety requirements differ substantially |
AAV Payload Design: Compactness and Genome Integrity
AAV is often selected for compact in vivo expression cassettes, but the vector has limited room once inverted terminal repeats and regulatory elements are included. A project may appear AAV-compatible when only the open reading frame is counted, then become problematic after adding promoter, enhancer, tag, polyA, and regulatory sequences. For compact therapeutic or research constructs, AAV cassette design for gene therapy should evaluate total length, ITR integrity, sequence stability, and readout requirements together.
Payload compression strategies include selecting shorter promoters, removing unnecessary tags, using compact polyA elements, avoiding duplicate regulatory sequences, optimizing codon usage cautiously, and using minimal functional domains when scientifically justified. These strategies must preserve biological meaning. A promoter that is compact but inactive in the target tissue is not a solution, and a shortened protein that lacks critical regulatory domains may create misleading rescue data. Payload design should therefore be reviewed by both molecular feasibility and biological function.
Self-Complementary AAV: Faster Expression with a Smaller Payload Window
Self-complementary AAV can accelerate expression because the genome is designed to fold into double-stranded DNA after uncoating, reducing dependence on second-strand synthesis. This feature is useful only when the payload is small enough to fit the reduced capacity. self-complementary AAV planning is therefore most relevant for compact reporters, small transgenes, short regulatory cassettes, and experiments where expression timing is more important than maximum cassette size.
A scAAV design should be compared directly with a single-stranded AAV design when timing matters. The readout should include expression onset, peak expression, persistence, titer, genome integrity, and functional effect. A faster vector is not useful if payload compression removes the biological element under study or if production quality becomes inconsistent. For payload-size selection, scAAV should be treated as a specific solution to an expression-kinetics problem, not as a general upgrade over standard AAV.
Lentiviral Payload Design for Multicomponent Cassettes
Lentiviral vectors are commonly evaluated when stable expression, ex vivo cell engineering, or multicomponent cassettes are required. They can accommodate designs that are impractical for AAV, but increasing insert size can reduce vector titer, alter expression balance, and affect cell fitness. For dual-gene or regulated systems, bicistronic lentiviral cassette optimization may involve 2A peptides, IRES elements, dual promoters, insulators, selection markers, or inducible modules.
Multigene designs require more than size calculation. 2A peptides are compact but may create unequal protein levels or leave peptide remnants. IRES elements can be larger and often produce lower downstream expression. Dual promoters can increase cassette size and raise risks of promoter interference or silencing. In ex vivo applications, vector copy number, integration profile, transgene expression, cell expansion, differentiation, and functional phenotype should be evaluated together because payload size can change the cell-engineering outcome.
Adenoviral Payload Design and Larger Transient Expression Cassettes
Adenoviral vectors are often considered when payloads are too large for AAV or when strong transient expression is desired. They can support vaccine research, tumor applications, RNAi delivery, and larger coding sequences, depending on vector generation and design. adenoviral vector development for larger constructs should still consider rescue efficiency, genome stability, regulatory design, immunogenicity, and the difference between first-generation and helper-dependent systems.
Payload flexibility does not eliminate experimental constraints. A large adenoviral cassette can still be unstable, difficult to rescue, or poorly matched to the application. Strong expression may be helpful for an antigen or suicide-gene study but may be toxic in a mechanistic cell-biology experiment. If the vector is used to compare biological variants, each construct should be evaluated for comparable particle quality and infectious activity; otherwise, payload size may become a hidden confounder in the interpretation.
HSV, Vaccinia, Baculovirus, and Other Large-Payload Platforms
When payload size becomes the dominant constraint, specialized large-payload platforms may be more reasonable than forcing the design into AAV or lentiviral systems.
- HSV vectors can be attractive for some nervous-system and large-cassette research questions.
- Vaccinia and other poxvirus vectors may be relevant to vaccine, immune, or oncolytic applications.
- Baculovirus can support certain protein-expression or transduction models.
These systems differ sharply in host range, biosafety, replication design, manufacturing workflow, and analytical requirements.
Large-payload platforms should be selected only when their biology fits the application. A large vector may solve the cassette problem while creating new barriers in tissue delivery, immune response, regulatory interpretation, or assay design. It may also require specialized production and QC methods. For discovery-stage work, a large transient vector can be useful to test feasibility. For translational research, the same design may need additional justification, controls, and comparability studies.
Payload Engineering Before Changing Vector Class
Before changing vector class, the construct should be reviewed for unnecessary length and instability. Many payload problems can be improved by removing redundant tags, shortening linkers, simplifying reporter architecture, choosing compact regulatory elements, or separating discovery reporters from final therapeutic cassettes. Sequence-level review should also identify repeats, high GC regions, cryptic splice sites, internal polyadenylation signals, unstable hairpins, and recombination-prone motifs. These features can matter as much as total length.
| Payload situation | Design response | Vector-selection implication |
|---|---|---|
| Open reading frame fits but full cassette is too large | Shorten promoter, remove tags, simplify regulatory elements | AAV may remain possible if biological function is preserved |
| Large gene exceeds AAV range | Evaluate minigene, dual AAV, split intein, or alternative vector | Do not force a full-length gene into a marginal AAV design |
| Two proteins must be expressed | Compare 2A, IRES, dual promoter, or separate vectors | Lentiviral or adenoviral designs may be more practical |
| Editing payload includes nuclease and donor | Separate components or consider transient designs | AAV, lentiviral, adenoviral, or nonviral strategies may need comparison |
| Construct produces low infectious titer | Review sequence stability and analytical data | Vector class may not be the only cause of poor performance |
QC Implications of Payload Size
Payload size directly affects the analytical package. Oversized or complex genomes can create truncated products, rearranged genomes, low infectious titer, high empty-to-full ratio, or inconsistent potency. Therefore, viral vector genome and potency analysis should be planned before production rather than after a problem appears. For AAV, genome integrity and full/empty assessment may be central. For lentiviral vectors, infectious titer, vector copy number, replication-competent lentivirus testing, and expression balance may be important. For adenoviral and large vectors, particle identity, purity, potency, and replication-competence assays may be needed.
The correct QC depth depends on project stage. A reporter-vector pilot may need basic identity, titer, and expression testing. A preclinical candidate may require more extensive purity, potency, safety, biodistribution, and stability evaluation. Payload size is therefore not only a design variable; it changes the confidence level required to interpret downstream biological data. If two vectors carry different payload lengths, direct comparison should control for vector quality, not only dose.
Payload-Driven Selection Workflow
- Calculate the full cassette length: Include the promoter, coding sequence, regulatory elements, polyA signal, tags, and any additional components.
- Map every functional element: Clarify which parts are essential and which can be simplified, removed, or redesigned.
- Assess single-vector feasibility: Determine whether all components must be delivered together or whether a split-vector or alternative strategy is more suitable.
- Screen for design risks: Check for sequence instability, repetitive regions, cryptic splice sites, and regulatory conflicts.
- Shortlist vector options: Compare candidate vector classes based on payload margin, target tissue, expression duration, and application needs.
- Plan pilot validation: Test whether the complete payload can be packaged, expressed, and reliably interpreted in a small-scale study.
This workflow helps avoid late-stage failure caused by selecting a vector that is not compatible with the final construct.
Published Data
Case 1: Navigating AAV Payload Limits in Intra-Articular Gene Therapy
This 2025 comprehensive study systematically analyzes the clinical hurdles and strategic solutions for utilizing Adeno-Associated Virus (AAV) gene therapies to treat joint diseases, such as osteoarthritis. A primary bottleneck identified in these clinical applications is the strict 4–4.7 kb packaging limit of AAVs, which heavily restricts the delivery of large therapeutic payloads, including bulky anti-inflammatory cytokines or TNFR-Fc fusion proteins.

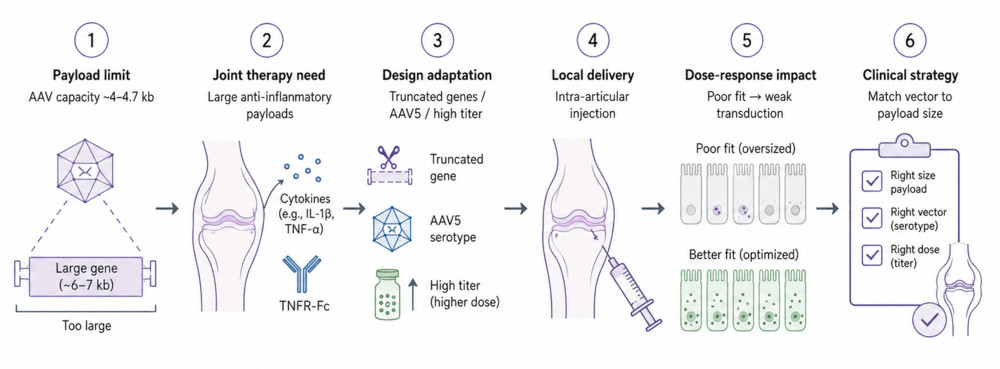

Figure 2. Navigating AAV payload limits in intra-articular gene therapy.
To circumvent these physical constraints, clinical trial designs must be meticulously adapted. When therapeutic genes exceed AAV capacities, researchers are forced to engineer truncated gene versions, evaluate alternative serotypes (such as AAV5), or administer localized, high-titer viral doses to compensate for otherwise constrained expression levels. The study emphasizes that failing to proactively align vector selection and dose response with the target gene's molecular weight inevitably results in poor transduction efficiency and sub-therapeutic outcomes. This provides a definitive clinical framework demonstrating how payload size directly dictates vector engineering and dosing strategies in joint-directed therapies.
Frequently Asked Questions
Why does payload size matter for viral vector selection?
Payload size affects packaging efficiency, vector yield, genome integrity, infectious titer, expression, and comparability between constructs. The full cassette, not just the coding sequence, should be used for vector selection.
What is the main payload limitation of AAV?
AAV is best suited for compact cassettes. When the genome approaches or exceeds the preferred packaging range, yield, genome integrity, and potency may decline. Oversized AAV designs should be redesigned or compared with alternative strategies.
When is self-complementary AAV useful?
Self-complementary AAV can be useful when faster expression onset is more important than payload capacity. It is suitable only for small cassettes because its effective payload window is much smaller than standard single-stranded AAV.
Can lentiviral vectors carry two genes?
Lentiviral vectors can support some bicistronic or multicistronic designs, but expression balance and titer may change. 2A, IRES, dual-promoter, or separate-vector approaches should be compared according to the biological readout.
When should adenoviral, HSV, or other large vectors be considered?
Large-payload vectors may be considered when AAV or lentiviral systems cannot support the cassette or when the application benefits from strong transient expression, immune stimulation, or specialized host biology. Their biosafety, manufacturing, and analytical requirements must also fit the project.
Overview of What Creative Biolabs Can Provide
Creative Biolabs can support payload-size projects by reviewing cassette architecture, selecting candidate vector platforms, planning production, and matching analytical testing to payload-related risks. The services below are selected from the Gene Therapy service structure because they directly relate to payload capacity, cassette optimization, or vector-quality assessment.
| Research Need | Related Creative Biolabs Support | How It Connects to the Current Resource Topic |
|---|---|---|
| Cross-platform payload review | Custom Viral Vector Development | Supports early selection when cassette length may determine vector class. |
| Compact AAV cassette design | Adeno-associated Virus Vector Development Service / AAV Vector Design for Gene Therapy | Fits payload-constrained in vivo expression and gene therapy research. |
| Faster expression with small payloads | Self-complementary AAV Vector Service | Connects reduced capacity with rapid expression onset. |
| Stable or multicomponent cassettes | Lentiviral Vector Development Service / Optimization of Bicistronic Lentiviral Vector Service | Supports larger ex vivo or multigene payload designs. |
| Larger transient constructs | Adenoviral Vector Development Service | Relates to payloads that exceed compact AAV or lentiviral designs. |
| Specialized large-payload systems | HSV Vector Development / Vaccinia Viral Vector Development Service / Baculovirus Vector | Provides options when payload size and application justify alternative vector biology. |
| Payload-related QC | Viral Vector Analysis / Purity of Viral Vector | Assesses genome integrity, titer, potency, purity, and payload-associated quality risks. |
For payload-size review, researchers may contact us today with the full construct map, sequence length, target model, application, and required expression duration.
