Lentiviral Vector System

Introduction

A lentiviral vector system is a modular gene-delivery platform derived from lentiviruses and redesigned to transfer a defined expression cassette into target cells while separating transfer functions from viral production functions. In gene therapy research, lentiviral vectors are valued because they can transduce dividing and many non-dividing cells and can support durable expression after genomic integration.

Core Components of a Lentiviral Vector System

A lentiviral vector system is best understood as a set of cooperating plasmids and viral-particle elements. Each part contributes a different function, and each function can affect expression, tropism, safety interpretation, and manufacturing behavior.

Functional separation

• Modern lentiviral systems place vector genome, packaging genes, and envelope functions on separate constructs.
• This separation supports research safety by minimizing overlap among sequences that would otherwise permit replication-competent virus formation.
• A strong system design also considers recombination-prone regions, plasmid ratios, and the biological sensitivity of the recipient cell type.

Why Vector Generations Matter?

First-Generation Lentiviral Vector System

The first-generation lentiviral vector system was developed by distributing viral genetic elements across three independent plasmids, thereby reducing the risk of generating replication-competent lentivirus (RCL). This system consists of the following components:

1. Packaging plasmid: Contains most HIV-derived genes, including gag, pol, tat, rev, and accessory genes such as vif, vpr, vpu, and nef. The envelope gene env is removed.
2. Envelope plasmid: Encodes VSV-G, the vesicular stomatitis virus glycoprotein, which replaces the native HIV envelope protein and provides broad tropism.
3. Transfer plasmid: Carries the gene of interest together with intact long terminal repeat (LTR) sequences.

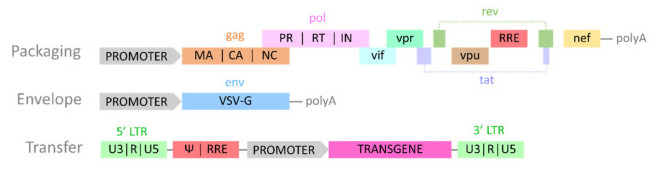

Figure 1. Overview of the first-generation lentiviral vector system.

Second-Generation Lentiviral Vector System

The second-generation lentiviral vector system removed the accessory proteins Nef, Vpr, Vif, and Vpu from the packaging plasmid. These proteins are associated with HIV disease progression, pathogenicity, and transmission in human populations, but they are not essential for core viral functions such as reverse transcription, integration, or virion maturation. As a result, the second-generation system offered an improved safety profile while retaining the key components required for efficient lentiviral vector production.

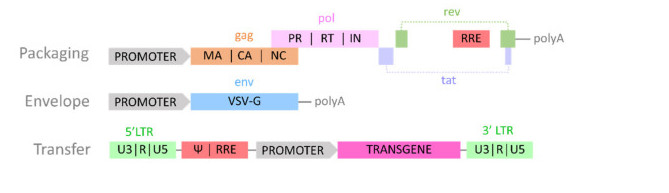

Figure 2. Overview of the second-generation lentiviral vector system.

Third-Generation Lentiviral Vector System

In the third-generation lentiviral vector system, the 5' HIV LTR sequence in the transfer plasmid is modified and replaced with a heterologous promoter, such as the CMV or RSV promoter. This design eliminates the requirement for Tat-mediated transcription, allowing the tat gene to be removed from the system and further reducing the likelihood of replication-competent lentivirus (RCL) formation. In addition, the rev element is removed from the packaging plasmid and supplied on a separate regulatory plasmid. Together, these modifications create a four-plasmid system that provides an additional safety barrier against RCL generation.

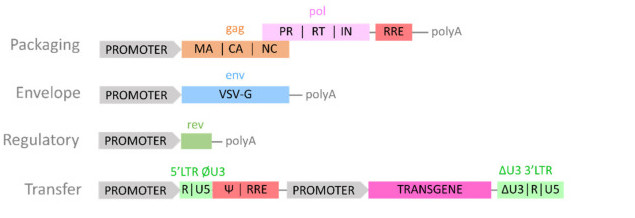

Figure 3. Overview of the third-generation lentiviral vector system.

Table 1. Comparison of Three Generations of Lentiviral Vector Systems

Self-inactivating architecture

• Self-inactivating transfer vectors weaken promoter activity in the long terminal repeat after reverse transcription.
• Internal promoters then drive the intended payload, allowing researchers to separate vector integration from expression control.

Projects that need durable expression without strong integration dependence may compare self-inactivating backbones with reduced-integration vector designs before selecting the final experimental format.

Payload and Expression Design

The transfer cassette is where a lentiviral vector system becomes biologically specific. The same particle platform may support gene addition, reporter delivery, shRNA expression, genome-editing payloads, or cell-state engineering, but the cassette design determines whether the biological signal is interpretable.

Promoter choice and expression window

A broadly active promoter may be suitable for proof-of-concept expression, while tissue-restricted promoter control can make cell-context interpretation more meaningful in lineage-focused studies.

• Strong expression is not always better because overexpression can distort cell physiology, induce toxicity, or mask subtle phenotypes.
• Inducible, self-deleting, or post-transcriptionally regulated designs may be preferred when expression level or persistence is part of the research question.

Payload size and transcript design

• Large or complex cassettes may reduce functional titer, increase rearrangement risk, or create uneven expression across cell types.

For dual-gene or reporter-linked studies, bicistronic cassette optimization helps compare IRES, 2A, and alternative expression strategies without treating all dual-expression formats as equivalent.

• Transcript features should be interpreted together with the cell model, copy number, assay time point, and intended biological endpoint.

Research Applications and Selection

Lentiviral systems are used across many gene therapy and functional-genomics workflows, but selection should start from the experimental problem rather than from a default vector preference.

Model-dependent decisions

For editing studies, lentiviral payload design for gene editing becomes important when guide expression, editor delivery, selection markers, and readout persistence all affect interpretation.

• For stem-cell programs, copy number, insertion profile, differentiation capacity, and long-term expression should be reviewed together.
• For immune-cell programs, activation state, receptor expression, cytokine exposure, and transduction enhancer choice can change vector performance.

Critical Readouts for System Evaluation

A lentiviral vector system should not be judged by a single titer number. The most useful evaluation connects particle quality, functional transfer, expression outcome, and model-specific safety signals.

Core readout categories

Identity, titer, purity, and potency testing should be organized as a practical viral vector analysis plan when the project moves beyond basic proof of concept.

• Functional titer should be interpreted under defined cell-type, multiplicity, enhancer, and assay-time conditions.
• Vector copy number, integration-site distribution, and expression heterogeneity are especially important for ex vivo research models.

Vector Safety and Experimental Boundaries

Lentiviral vector safety is a design-and-interpretation issue rather than a single feature. Researchers should distinguish between particle production safety, recipient-cell consequences, and downstream biological interpretation.

Design features that reduce ambiguity

• Self-inactivating vectors help separate integration from promoter activity, but they do not remove the need to measure expression and copy number.
• Split packaging systems reduce replication-competent lentivirus risk, yet plasmid identity and process controls remain important.
• Integration-aware designs should be matched with the sensitivity of the model, especially for stem cells, immune cells, and long-term culture studies.

How to Choose a Lentiviral System for a Project

The most practical selection process begins with the experimental objective. A gene-addition study, a screening workflow, and a stem-cell modification project may all use lentiviral delivery, but they require different cassette and readout logic.

Decision sequence

• Start with the desired biological outcome: durable expression, regulated expression, gene knockdown, editing delivery, or lineage tracing.
• Define the acceptable integration profile before choosing an integrating, integration-deficient, or self-deleting system.
• Choose promoter and regulatory elements after considering the target cell type, expression window, and expected assay sensitivity.
• Select titer and copy-number targets according to the biological readout, not only according to maximum transduction efficiency.

Common design trade-offs

• Higher multiplicity of infection may increase the percentage of positive cells but can also increase copy number and stress responses.
• Stronger promoters may improve detectability while increasing the risk of non-physiological expression.
• More complex cassettes can support sophisticated regulation but may reduce packaging efficiency and reproducibility.

Post-transcriptional restriction through miRNA-based detargeting can help when off-target expression is a major interpretive concern.

Typical Research Scenarios

The same lentiviral platform can be adapted to different research scenarios, but the assumptions behind each scenario should be stated explicitly. A vector that is ideal for a reporter cell line may be inappropriate for a stem-cell differentiation study or a long-term safety experiment.

How scenario changes design

• For routine reporter construction, a simple cassette may be more robust than a highly regulated design.
• For primary cells, preserving cell state can be more important than maximizing signal intensity.
• For screening, uniform representation and moderate expression often matter more than the highest possible copy number.
• For genome editing, expression duration should be limited when persistent nuclease activity could complicate interpretation.

Common Mistakes in System Design

Many lentiviral experiments fail not because the vector platform is unsuitable but because the system was not matched to the assay. The following issues are frequent causes of ambiguous results.

Mistake patterns

• Using a promoter that is strong in one cell line but weak or silenced in the actual experimental model.
• Reporting transduction percentage without measuring viability, copy number, or expression stability.
• Assuming that a packaging system label automatically defines safety without considering plasmid quality and assay controls.
• Changing envelope, promoter, and payload at the same time, then attributing the outcome to only one variable.
• Selecting a very high multiplicity of infection to rescue weak expression, thereby creating copy-number and stress artifacts.

Design review checklist

• Confirm the transfer-vector map, promoter, payload, regulatory elements, and expected transcript before production.
• Define the target cell type, culture state, and time points for transduction and analysis.
• Choose controls that distinguish entry, expression, integration, and payload function.
• Plan a minimum QC package before interpreting biological activity.
• Record the assumptions that would invalidate the study if they prove incorrect.

Case-Style Planning Examples

The examples below illustrate how system design changes when the biological question changes. They are not experimental claims; they are planning patterns that help researchers avoid a one-size-fits-all vector map.

Example 1: stable expression in primary cells

• The project should begin by defining the minimum expression level needed for function rather than by maximizing promoter strength.
• A moderate multiplicity of infection with copy-number monitoring may be preferable to aggressive transduction conditions.
• Controls should include untransduced cells, mock-transduced cells, and a vector carrying an inactive or irrelevant payload.
• Interpretation should integrate viability, phenotype preservation, transgene expression, and functional activity.

Example 2: delivery of a genome-editing cassette

• The system should distinguish delivery of the editor from the editing event itself.
• If persistent nuclease expression is undesirable, integration-deficient or self-limiting designs should be considered.
• Readouts should include editing efficiency, indel or precise-edit profile, target-cell viability, and possible off-target indicators.
• Reporter-linked designs can simplify enrichment but may alter cassette size and packaging behavior.

Example 3: regulated expression in a differentiation model

• A promoter that is active before differentiation may not remain active after lineage commitment.
• If expression should be restricted to a lineage or maturation stage, promoter choice and miRNA regulation should be evaluated together.
• The study should include early and late time points to determine whether expression is silenced, selected, or biologically disruptive.
• Differentiation markers should be interpreted together with vector copy number to avoid missing clone-specific effects.

Final Selection Checklist

A final vector-system choice should be defensible before production begins. The checklist below helps convert a broad lentiviral plan into a testable study design.

Checklist items

• The target cell type, biological endpoint, and acceptable expression window have been defined.
• The integration requirement has been justified rather than assumed.
• Promoter, payload, regulatory elements, and envelope choice are connected to the study objective.
• Controls can distinguish delivery, expression, integration, and function.
• QC readouts are sufficient for the sensitivity and stage of the project.
• The design avoids unnecessary cassette complexity that would reduce titer without improving interpretation.

Short Practical Note

In practice, the best lentiviral system is the one that answers the research question with the fewest uncontrolled variables. Researchers should resist adding regulatory features, very strong promoters, or complex reporters unless those features make the biological conclusion clearer.

Frequently Asked Questions

Overview of What Creative Biolabs Can Provide

Creative Biolabs can support lentiviral-vector research by helping investigators connect vector design decisions with measurable performance criteria, including transduction efficiency, expression durability, tropism, integration control, and quality attributes. The most relevant support depends on whether the project question concerns vector architecture, pseudotype selection, regulated expression, or manufacturing readiness.

For projects that require a tailored lentiviral strategy, researchers may contact us today to discuss the biological objective, target cell type, payload design, and preferred readout package.
