Anti-HCV Glycan Shield Antibody Development Service
The Hepatitis C virus (HCV) remains a formidable challenge in antiviral therapy due to its extensive glycosylation machinery. The viral envelope proteins E1 and E2 are heavily modified by N-linked glycans, which form a dense "viral glycan shield" that protects the virus from host immune surveillance. At Creative Biolabs, we leverage our comprehensive Anti-Viral Glycan Shield Antibody Development platform to support researchers in targeting these elusive structures. We provide specialized services to develop high-affinity custom monoclonal antibodies against the conserved glycosylation sites of HCV, facilitating advanced research into viral assembly, receptor interactions, and neutralizing antibody responses.
Background: The HCV Glycan Shield and Immune Evasion
The HCV envelope glycoproteins E1 and E2 form a non-covalent heterodimer that is essential for viral entry. These proteins are exceptionally rich in carbohydrates, with up to 5 N-linked glycosylation sites on E1 and up to 11 on E2. Collectively, these glycans constitute nearly one-third of the total mass of the heterodimer. While the viral genome is highly variable, many of these N-glycosylation sites—such as N417, N423, N532, and N540—are surprisingly conserved across different genotypes.
This conservation suggests a critical dual role: facilitating proper protein folding and acting as a shield to mask neutralizing epitopes. This "glycan shield" creates a steric barrier that prevents neutralizing antibodies from accessing the underlying protein surface, particularly the CD81 binding site. Furthermore, the virus employs dynamic mechanisms such as "glycan shifting," where mutations (e.g., N417S) cause the glycosylation site to shift to an adjacent residue (e.g., N415). This shift dramatically alters the antigenic landscape, rendering previously effective antibodies obsolete and allowing the virus to escape neutralization. Understanding and overcoming this shield is a primary goal in current HCV vaccine and antiviral research.
Pain Points in Anti-HCV Antibody Development
Developing antibodies that can penetrate or specifically recognize components of the HCV glycan shield is fraught with technical difficulties.
Steric Hindrance
The dense array of high-mannose and complex glycans physically blocks access to the conserved "neutralizing face" of the E2 protein, reducing the binding efficiency of conventional antibodies.
Glycan Shifting
The virus rapidly evolves escape mutants where glycosylation sites migrate. Antibodies raised against a Wild-Type (WT) immunogen may fail to recognize these shifted variants (e.g., N417 vs. N415).
Immunological Silence
The immune system often targets the highly variable hypervariable region 1 (HVR1), which acts as an immunological decoy, distracting from the conserved but shielded epitopes.
Heterogeneity
Recombinant E1/E2 proteins often exhibit heterogeneous glycosylation patterns that do not match the native viral envelope, leading to the generation of non-functional antibodies.
Our Solutions: Custom Anti-HCV Glycan Shield Antibody Service
Creative Biolabs addresses these challenges through a rational immunogen design and advanced screening workflow. We do not simply inject proteins; we engineer the glycan landscape to expose key epitopes or target the glycans themselves.
Specific Service You May Need
Epitope-Focused Antibody Discovery
We specialize in isolating antibodies that target the "neutralizing face" of E2 (residues 412-423 and 523-535). By manipulating the glycans at N417 and N532, we can generate antibodies that either depend on these glycans for binding or are capable of penetrating the shield to reach the protein core.
Glycan-Dependent Antibody Engineering
Some broad neutralizers (bNAbs) require specific glycans for recognition. We offer services to map the precise glycan dependency of your antibody candidates, determining if they recognize high-mannose or complex glycans at specific sites like N423.
Comparative Neutralization Profiling
To ensure your antibody is robust against viral escape, we test candidates against panels of glycan-shift mutants (e.g., N417S vs N417T). This service provides critical data on the breadth of protection and the potential risk of resistance development.
Request a Quote for HCV Antibody Services
Core Advantages
Broad Neutralization
Targeting conserved glycan sites ensures coverage across multiple HCV genotypes (1-6).
Precise Mapping
Define exact binding footprints using our alanine scanning and glycan deletion libraries.
Native Conformation
Antigens are expressed in mammalian systems to ensure correct glycosylation and folding.
Data-Driven
Comprehensive reports including kinetic data, epitope binning, and cross-reactivity profiles.
Published Data
A comprehensive scientific review highlights the critical role of the "glycan shield" in Hepatitis C Virus (HCV) immune evasion. The viral envelope glycoproteins, E1 and E2, are extensively modified by N-linked glycans, which constitute approximately one-third of the heterodimer's molecular mass. Structural modeling reveals that these conserved glycans form a dense protective layer over the E2 core, effectively masking key neutralizing epitopes, particularly the CD81 receptor-binding site. This steric barrier significantly reduces the binding efficiency of broad-spectrum neutralizing antibodies.
The study also elucidates the mechanism of "glycan shifting," where viral evolution drives mutations (such as N417S) that relocate a glycosylation site to an adjacent residue (e.g., N415). This subtle structural shift alters the local antigenic landscape, allowing the virus to escape neutralization by antibodies that target the original epitope configuration. Crucially, research data indicates that the selective removal of these shielding glycans can dramatically enhance the immunogenicity of the envelope proteins. These findings underscore the importance of rational immunogen design—specifically engineering glycan-modified antigens—to expose conserved epitopes and elicit a potent neutralizing antibody response, a strategy central to our advanced antibody development platform.

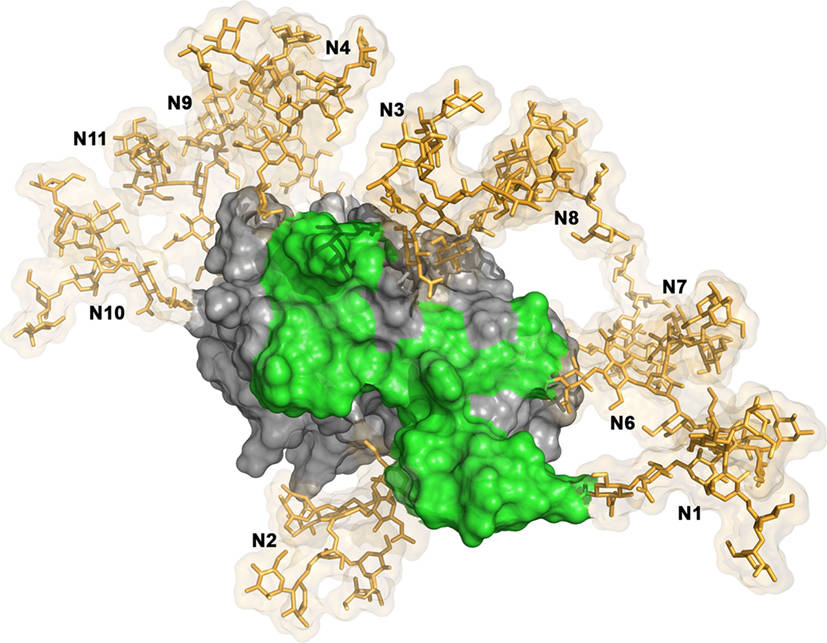

Fig.1
Structural modeling of the HCV E2 envelope glycoprotein revealing how N-linked glycans (gold) create a steric shield that masks conserved neutralizing epitopes (green) on the protein surface.1
FAQs
Why is the N417 glycan site so critical for antibody development?
N417 is located directly adjacent to a highly conserved neutralizing epitope (residues 412-423). Glycans at this position can physically block antibody access. Additionally, the N417S mutation causes "glycan shifting" to N415, a common escape mechanism. Antibodies that can tolerate or target this region are highly valuable.
Can you generate antibodies against "glycan-shifted" HCV mutants?
Yes. We can design immunogens that replicate specific escape mutants (e.g., N415-glycosylated variants). By screening against both Wild-Type and mutant libraries, we can identify clones that maintain binding despite the shift or specific clones for the mutant form.
What type of validation assays do you provide?
We offer a tiered validation approach. This includes basic binding assays (ELISA, Western Blot) and advanced functional assays such as Surface Plasmon Resonance (SPR) for kinetics, alanine scanning for epitope mapping, and neutralization assays using HCVpp or HCVcc systems.
Do you offer humanized antibody services for clinical research?
Yes, we offer antibody humanization services. We can graft the CDRs of a potent murine candidate onto human frameworks and optimize them to reduce immunogenicity while retaining high affinity and neutralization potency.
Is this service suitable for vaccine development?
Absolutely. Understanding the glycan shield is key to rational vaccine design. Our antibodies can serve as structural probes to validate if your vaccine candidates are presenting the correct neutralizing epitopes in a native-like conformation.
What Our Customers Say
"The heterogeneity of HCV envelope proteins had stalled our project for months. Creative Biolabs provided a panel of antibodies that specifically recognized the N417 glycan-dependant epitope. The specificity was exactly what we needed to validate our immunogen."
"We were impressed by their rational immunogen design. They didn't just screen against the WT protein; they used specific glycan-deletion mutants to find rare neutralizing clones. The final report was comprehensive and professional."
"Excellent service for investigating HCV immune evasion. Their ability to generate antibodies that distinguish between N417 and N415 glycosylated variants gave us crucial insights into the glycan shifting mechanism."
"Fast turnaround and high-affinity binders. The antibodies worked perfectly in our HCVpp neutralization assays. The team was very responsive to our specific needs regarding cross-genotype reactivity."
Reference:
- Lavie, M., et al. "Glycan Shielding and Modulation of Hepatitis C Virus Neutralizing Antibodies." Frontiers in Immunology 9 (2018): 910. Distributed under Open Access license CC BY 4.0, without modification. https://doi.org/10.3389/fimmu.2018.00910
