Trilobatin, a natural dihydrochalcone glucoside primarily found in Malus species and Lithocarpus polystachyus, has gained significant attention in the functional food and pharmaceutical industries. As a natural, low-calorie sweetener with a sweetness intensity approximately 100 times that of sucrose, it offers a clean taste profile without the bitterness associated with its isomer, phloridzin. Beyond its sensory properties, trilobatin exhibits robust biological activities, including anti-inflammatory, antioxidant, and potential anti-HIV-1 entry inhibitory effects. Creative Biolabs provides a comprehensive solution for the synthesis of trilobatin, delivering high-purity crystalline powder tailored to your specific formulation needs. Our service reduces the uncertainties of wild-harvest botanical sourcing by providing a nature-identical molecule produced under controlled laboratory and industrial conditions. We utilize Advanced Enzymatic Synthesis to provide high-purity trilobatin at scale. We provide the specialized production process focused on the enzymatic conversion of phloretin using Phloretin 4'-O-Glucosyltransferase (MdPh-4'-OGT).

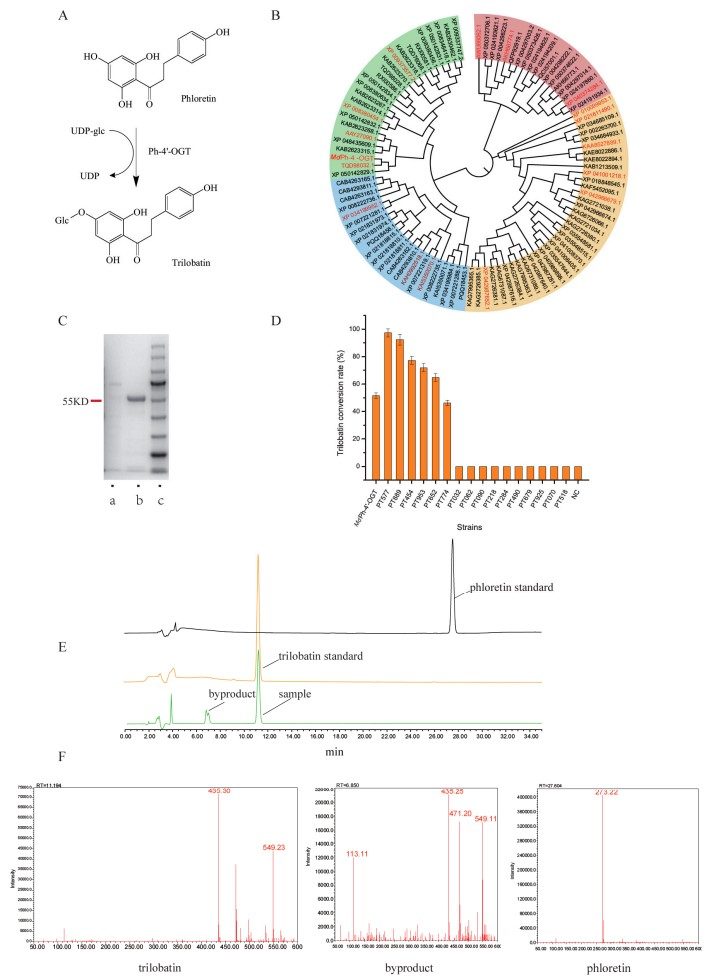

Fig.1 Screening of MDPH-4'-OGT. (OA Literature) Fig.1 Activity screening of MdPh-4'-OGT.¹

Review Your Options with Us - Inquire Now

Specialized Trilobatin Production Service

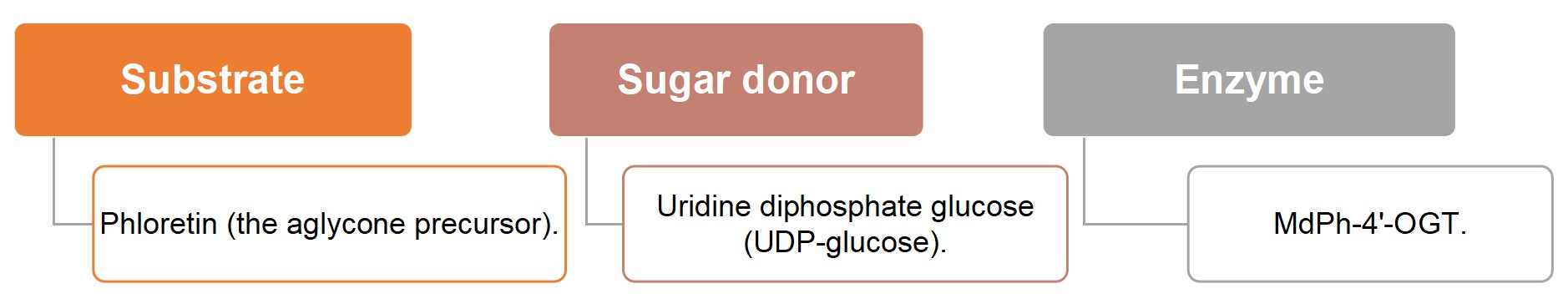

The core of the custom production service is a highly specific biocatalytic reaction. The synthesis follows a precise biochemical pathway:

In this reaction, the enzyme transfers the glucosyl group from UDP-glucose specifically to the 4'-hydroxyl position of the phloretin A-ring. This regiospecificity is critical, as it avoids the formation of phloridzin (phloretin-2'-O-glucoside), which is bitter and commercially less desirable. The production workflow is divided into the following stages:

Phase I

Selection of Starting Materials and Reaction Setup

We select phloretin and the MdPh-4'-OGT enzyme catalyst as the starting materials for the reaction.

Solubility enhancement: Since phloretin has limited solubility in water, the reaction often employs cosolvents or specialized surfactants to ensure the substrate is accessible to the enzyme.
UDP-glucose supply: In whole-cell systems, the metabolic pathways of the host cell regenerate UDP-glucose internally. In cell-free systems, a secondary "recycling" enzyme is often added to regenerate UDP-glucose from sucrose and UDP, significantly reducing costs.

Phase II

The Biotransformation Step

The actual production occurs in a temperature-controlled stir-tank reactor.

Optimization of parameters: The reaction is maintained at an optimal pH and temperature to maximize enzyme stability.
Monitoring: The conversion rate is monitored via high-performance liquid chromatography (HPLC).

Phase III

Downstream Purification

Once the reaction reaches peak conversion, the mixture undergoes rigorous purification.

Centrifugation and filtration: The biocatalyst and cellular debris are removed.
Resin adsorption: The crude trilobatin is often passed through macroporous resins, which selectively bind the dihydrochalcones.
Chromatography: Final purification is achieved through preparative HPLC or recrystallization. This step is vital to achieve the high purity required by clients.
Quality control: Every batch of custom-produced trilobatin undergoes comprehensive analytical verification.

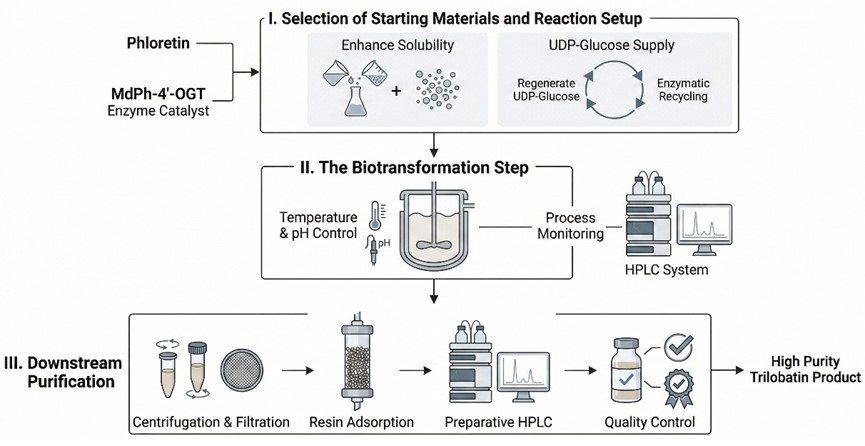

Fig.2 Detailed production step for trilobatin. (Creative Biolabs AI) Fig.2 Detailed process workflow for trilobatin production.

Application

Food industry: Trilobatin is approximately 300 times sweeter than sucrose, with a refreshing taste and long-lasting sweetness. As a non-sugar natural sweetener, it is widely used in the development of low-calorie or sugar-free foods, providing sugar alternatives for diabetics and those pursuing a healthy diet.
Cosmetics: In the beauty and skincare industry, trilobatin, with its anti-inflammatory, antioxidant, and potential melanin-inhibiting functions, is often added to whitening serums, anti-aging creams, or after-sun repair products to protect the skin barrier and alleviate skin aging caused by environmental stress.
Feed additives: With the implementation of antibiotic bans in the feed industry, trilobatin, as a plant extract with antibacterial, anti-inflammatory, and anti-stress properties, is used as a green feed additive to improve the immunity and growth performance of livestock and poultry.

Connect with Us - Request a Professional Quote

Published Data

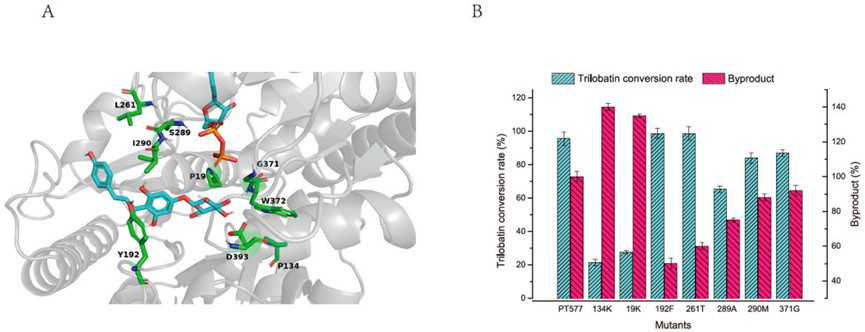

This research explores an advanced biotechnological method for synthesizing trilobatin. Recognizing the limitations of traditional plant extraction, the authors utilized gene mining to identify a high-efficiency glycosyltransferase, PT577, which converts phloretin into trilobatin with a remarkable 97.3% yield. Through meticulous optimization of reaction parameters, including pH, temperature, and substrate concentration, the study achieved a record-breaking trilobatin production of 163.3 mg/L. The following figure presents three-dimensional structural models of PT577, highlighting the molecular docking between the enzyme's active site and its substrates. It maps specific amino acid residues identified through virtual screening as candidates for mutation. By analyzing these docking configurations, the researchers developed mutant strains, which effectively reduced unwanted by-products (like phloridzin) by nearly half. This structural visualization confirms that targeted modifications to the protein's binding pocket can significantly sharpen its substrate specificity.

Fig.3 Optimization of PT577 specificity and activity. (OA Literature) Fig.3 Optimization of PT577 activity.¹

FAQs

Q1: What makes Creative Biolabs' enzyme technology unique for this service?

A1: Our enzymes are developed using virtual screening and site-directed mutagenesis. This means our MdPh-4'-OGT is more efficient than the natural versions found in plants, achieving conversion rates of over 97% while significantly minimizing the production of unwanted isomers.

Q2: How do you ensure the product is stable for long-term storage?

A2: Our refined trilobatin is produced as a highly stable crystalline powder. We package the final product in airtight, moisture-proof containers under an inert gas environment. This prevents oxidation and ensures the product maintains its sweetness and purity for at least 24 months.

Q3: Can this service be customized for specific product applications?

A3: Absolutely. We can adjust the final delivery format, such as particle size or liquid concentration, to fit your specific manufacturing process. Our technical team is available to discuss how to optimize the integration of trilobatin into your unique product matrix.

Customer Review

Superior Isomer Control
"Using Creative Biolabs' custom trilobatin production service in our research has significantly facilitated our study on dihydrochalcone metabolic pathways. Creative Biolabs provided a product with less than 0.1% of the unwanted isomer. This precision allowed us to establish a clear baseline for our new sugar-free beverage line without the typical bitter aftertaste associated with botanical impurities."- Dr. Alen*** S.

Streamlined Scaling for Large Batches
"Using Creative Biolabs' custom trilobatin production service in our research has significantly improved our prototype development timeline. The enzymatic conversion process was remarkably fast and consistent across all batches. Unlike traditional synthesis, which requires harsh solvents and long drying times, this bio-synthetic approach yielded a highly soluble powder that integrated perfectly into our dry mix formulations."- Sci. Sarah L***

Technical Expertise
"Using Creative Biolabs' custom trilobatin production service in our research has significantly facilitated the stabilization of our high-intensity sweetener blends. Their technical team did not just deliver the product; they helped us optimize the metal ion concentrations in our own formulation to maintain the sweetness profile. Their deep understanding of the MdPh-4'-OGT mechanism saved us months of internal testing. The final trilobatin product demonstrated exceptional stability under high heat processing conditions."- Prof. Marc*** D.

Extended Services

Specialized Enzyme Engineering

Our lab can develop and optimize unique Glycosyltransferases for other targets, allowing for the custom synthesis of various rare natural compounds.

Ingredient Formulation and Optimization

We offer technical consulting to help you integrate trilobatin into complex recipes.

Advanced Stability and Analytical Testing

We provide comprehensive shelf life and stability studies to ensure that trilobatin remains effective and stable within your specific final product packaging.

How to Contact Us

Creative Biolabs' custom trilobatin production services represent a bridge between natural product discovery and industrial scalability. By leveraging the precision of MdPh-4'-OGT, these services provide a sustainable, high-yield alternative to traditional extraction. This biocatalytic route not only ensures the structural integrity and purity of the sweetener but also aligns with "green chemistry" principles by operating under mild conditions with minimal environmental impact. For detailed project inquiries, please contact us to inquire about more details.

Reference

Yang, Yue et al. "Optimizing Trilobatin Production via Screening and Modification of Glycosyltransferases." Molecules (Basel, Switzerland) vol. 29,3 643. 30 Jan. 2024. Distributed under an Open Access license CC BY 4.0, without modification. https://doi.org/10.3390/molecules29030643
